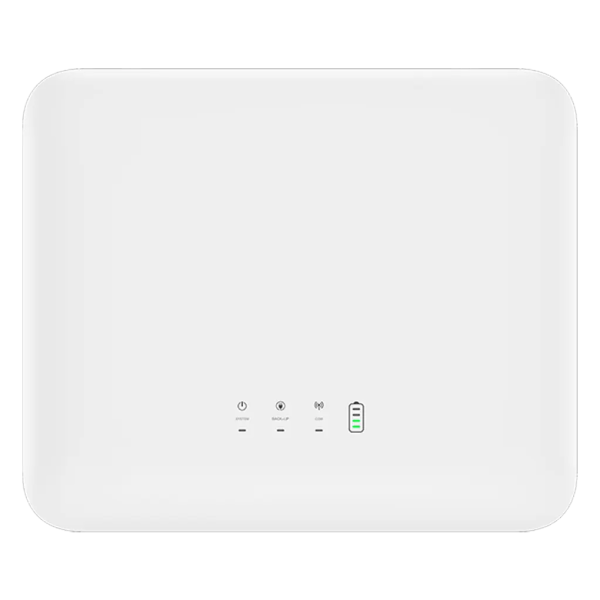

MP-ES G2 Series 3-6kW Single Phase Hybrid inverter (LV)-6022

MP-ES G2 Series 3-6kW Single Phase Hybrid inverter (LV)-6022

The China Moneypro ES G2 Series is a 3–6kW single-phase hybrid inverter designed to maximize self-consumption of solar energy while providing intelligent energy flow management. Its smart design ensures UPS-level switching to backup mode in less than 10ms, providing reliable support for heavy loads such as air conditioners, refrigerators, and other household appliances.

With its compact, lightweight design and plug-and-play connections, the ES G2 inverter simplifies installation and commissioning, making it ideal for residential applications. Compatible with a wide range of low-voltage batteries, including the China Moneypro Lynx Home U, it offers homeowners a flexible and cost-effective solution to achieve energy autonomy.

Category:

Share your love

Smart Energy, Reliable Backup

The China Moneypro ES G2 Series is a 3–6kW single-phase hybrid inverter designed to maximize self-consumption of solar energy while providing intelligent energy flow management. Its smart design ensures UPS-level switching to backup mode in less than 10ms, providing reliable support for heavy loads such as air conditioners, refrigerators, and other household appliances.

With its compact, lightweight design and plug-and-play connections, the ES G2 inverter simplifies installation and commissioning, making it ideal for residential applications. Compatible with a wide range of low-voltage batteries, including the China Moneypro Lynx Home U, it offers homeowners a flexible and cost-effective solution to achieve energy autonomy.

Plug & Play – Elegant & Compact

  • Quick-connect AC and DC terminals significantly reduce installation time.

  • Sleek, elegant design fits perfectly in residential environments.

  • Compact and lightweight for easier handling and faster commissioning.

Benefits:

  • Reduces labor and installation costs.

  • Minimizes wiring errors and improves overall system reliability.

  • Perfect choice for rooftops or home energy systems with space constraints.

Flexible & Adaptable Applications

  • Strong backup power supply supports critical loads during grid outages.

  • Parallel connection support ensures reliable and scalable backup power.

  • Maximum DC input current of 16A per string and compatibility with high-power modules.

  • Efficiently uses self-generated solar energy, reducing electricity purchased from the grid.

Advantages:

  • Supports heavy-duty appliances like air conditioners or water heaters.

  • Flexibility for future system expansion or high-energy-demand households.

  • Optimized for high solar yield and energy savings.

Friendly & Thoughtful Design

  • Optional AFCI on DC side for enhanced safety.

  • Smart load control via dry contacts for home automation integration.

  • Remote monitoring and firmware upgrade support for seamless O&M.

Highlights:

  • Easy integration with smart home systems via multiple communication protocols.

  • Quick fault detection and remote troubleshooting reduce downtime.

  • Designed to provide safety, reliability, and user-friendly operation.

Key Specifications

  • Max. PV Input Voltage: 600 V

  • Rated AC Output Power: 3–6 kW

  • Rated AC Voltage: 220/230/240 V

  • Max. Efficiency: 97–97.7%

  • Max. DC Input Current per String: 16 A

Typical Applications

  • Residential rooftops, both new installations and retrofits.

  • Homes requiring backup power during outages.

  • Houses with high-power PV modules and low-voltage battery storage.

  • Smart homes with load control or energy management integration.

FAQ – Common Questions

Q1: Can ES G2 work with existing PV modules and batteries?
Yes, it supports most mainstream low-voltage modules and is compatible with batteries like the China Moneypro.

Q2: How fast is the backup switch to grid outage?
The inverter switches to backup mode in less than 10ms, ensuring uninterrupted power for critical loads.

Q3: Is the inverter easy to install?
Yes, it features plug-and-play AC/DC terminals, lightweight design, and compact form factor for fast and safe installation.

Q4: Can I integrate it with a smart home system?
Absolutely. It supports multiple communication protocols, smart load control via dry contacts, and remote monitoring.

Q5: Is the ES G2 safe for household use?
Yes, it includes optional AFCI for DC side protection, robust casing, and is designed to operate safely in residential environments.

Specifications

Technical Data GW3000-
ES-20		 GW3500L-
ES-BR20		 GW3600-
ES-20		 GW3600M-
ES-20		 GW5000-
ES-20		 GW5000M-
ES-20		 GW6000-
ES-20
Battery Input Data
Battery Type*1*6                                                                                                             Li-Ion / Lead-acid Li-Ion        Li-Ion / Lead-acid        Li-Ion        Li-Ion / Lead-acid        Li-Ion
Nominal Battery Voltage (V)                                                                                                               48
Battery Voltage Range (V)                                                                                                              40 ~ 60
Start-up Voltage (V) 47 40 47 47 47 47 47 47
Number of Battery Input     1
Max. Continuous Charging Current (A)*1 60 75 75 60 120 60 120 60
Max. Continuous Discharging Current (A)*1 60 75 75 60 120 60 120 60
Max. Charge Power (W)*1*5     3000 3500 3600 3000 5000 3000 6000 3000
Max. Discharge Power (W)*5     3200 3800 3900 3200 5300 3200 6300 3200
PV String Input Data
Max. Input Power (W)*2     4500 6300 5400 5400 7500 7500 9000 9000
Max. Input Voltage (V)*4 600
MPPT Operating Voltage Range (V) 60 ~ 550
Start-up Voltage (V) 58
Nominal Input Voltage (V) 360
Max. Input Current per MPPT (A) 16
Max. Short Circuit Current per MPPT (A) 23
Number of MPP Trackers 1 2 2 2 2 2 2 2
Number of Strings per MPPT     1
AC Output Data (On-grid)
Nominal Output Power (W)     3000 3500 3680 3680 5000 5000 6000 6000
Nominal Apparent Power Output to Utility Grid (VA)     3000 3500 3680 3680 5000*3 5000*3 6000*3 6000*3
Max. Apparent Power Output to Utility Grid (VA)     3000 3500 3680 3680 5000*3 5000*3 6000*3 6000*3
Nominal Power at 40°C (W)*3     3000 3500 3680 3680 5000 5000 6000 6000
Max. Power at 40°C (Including AC Overload) (W)*3     3000 3500 3680 3680 5000 5000 6000 6000
Max. Apparent Power from Utility Grid (VA)          6000               5500               7360               3680              10000              5000              10000              6000
Nominal Output Voltage (V) 220 / 230 / 240 127 220 / 230 / 240
Output Voltage Range (V) 170 ~ 280 95 ~ 165 170 ~ 280
Nominal AC Grid Frequency (Hz) 50 / 60 60 50 / 60
AC Grid Frequency Range (Hz) 45 ~ 55 / 55 ~ 65 55~65 45 ~ 55 / 55 ~ 65
Max. AC Current Output to Utility Grid (A)               13.6                27.6                16.7                16.7                22.7                22.7                27.3                27.3
Max. AC Current From Utility Grid (A) 27.3 43.5 33.5 16.7 43.5 22.7 43.5 27.3
Power Factor                                                                                                   ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion                                                                                                         <3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA) 3000 3500 3680 3680 5000 5000 6000 6000
Max. Output Apparent Power without Grid (VA) 3000 (6000@10sec) 3500 (5800@10s) 3680 (7360@10sec) 3680 5000 (10000@10sec) 5000 6000 (10000@10sec) 6000
Max. Output Apparent Power with Grid (VA) 3000 (6000@10sec) 3500 3680 (7360@10sec) 3680 5000 (10000@10sec) 5000 6000 (10000@10sec) 6000
Max. Output Current (A) 13.6 27.6 16.7 16.7 22.7               22.7 27.3 27.3
Nominal Output Voltage (V) 220 / 230 / 240 127 220 / 230 / 240
Nominal Output Freqency (Hz) 50 / 60 60 50 / 60
Output THDv (@Linear Load)                                                                                                           <3%
Efficiency
Max. Efficiency 97.6% 96.0% 97.6% 97.6%             97.6% 97.6% 97.6% 97.6%
European Efficiency 96.7% 95.6% 96.7%      96.7% 96.7% 96.7% 96.7% 96.7%
Max. Battery to AC Efficiency 95.5% 94.0% 95.5%      95.5% 95.5% 95.5% 95.5% 95.5%
MPPT Efficiency 99.9%
Protection
PV String Current Monitoring Integrated
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Short Circuit Protection Integrated
AC Overvoltage Protection Integrated
DC Switch Integrated
DC Surge Protection Type II
AC Surge Protection Type II
AFCI Optional
Remote Shutdown                                                                                                                        Integrated
General Data
Operating Temperature Range (°C) -25 ~ +60
Relative Humidity 0 ~ 95%
Max. Operating Altitude (m) 3000 (>2000 Derating)
Cooling Method Natural Convection
User Interface LED, WLAN + APP
Communication with BMS CAN
Communication with Meter RS485
Communication with Portal WiFi / WiFi + LAN / 4G
Weight (kg) 19.6                21.5                20.8                 20                 21.5                 20                 21.5                 20
Dimension (W × H × D mm) 505.9 × 434.9 × 154.8
Topology Non-isolated
Self-consumption at Night (W) <10
Ingress Protection Rating IP65
Mounting Method Wall Mounted
