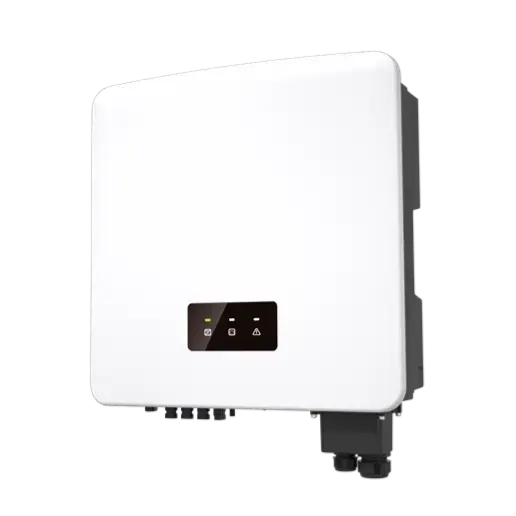

MP-X1-SPT-2572

MP-X1-SPT-2572

The China Moneypro X1‑Split Series is a versatile hybrid solar inverter tailored for residential solar + storage applications. It supports split‑phase 120 V & 240 V output, high PV oversizing, intelligent energy management features, and flexible system configurations, delivering reliable performance for homes with energy storage and grid‑interactive requirements.

Category:

Share your love

Efficient, Flexible & Smart Residential Hybrid Inverter

The China Moneypro X1‑Split Series is a versatile hybrid solar inverter tailored for residential solar + storage applications. It supports split‑phase 120 V & 240 V output, high PV oversizing, intelligent energy management features, and flexible system configurations, delivering reliable performance for homes with energy storage and grid‑interactive requirements.

High‑Performance Solar Integration

Maximize PV Energy Harvest

  • Supports 150 % PV oversizing to capture more energy from larger solar arrays.

  • Shadow tracking function increases solar yield under varied conditions.

  • High PV input current support (14 A per MPPT) enables compatibility with high‑power solar modules.

  • Up to 120 % AC overload output for 60 s — supports short‑term peak loads.

Benefits:

  • Improved solar utilization throughout the day.

  • Stronger peak load support for household demands.

Intelligent & Flexible Load Support

Smart Load Management

  • Split‑phase 120 V & 240 V output supports common residential electrical configurations.

  • Parallel operation (2 units) expands system capacity for larger homes.

  • Multiple work modes and two charging time periods allow flexible operational strategy.

  • Switchover response < 20 ms ensures smooth grid/backup transitions.

Advantages:

  • Adaptable to varied load profiles.

  • Seamless transition between grid and solar/battery sources.

Smart Monitoring & Energy Use

Intelligent Operation

  • Built‑in communication interfaces for monitoring and system control.

  • Real‑time insight into solar, battery, and load flows helps optimize energy use.

  • Multiple working modes balance self‑consumption, storage, and export strategies.

Benefits:

  • Enhanced system awareness and control.

  • Flexible strategies adapt to daily energy needs.

Robust & Safe Design

Engineered for All‑Around Protection

  • NEMA 4X rugged enclosure offers strong protection for outdoor installation.

  • Integrated SPD (Surge Protective Device) enhances electrical safety.

  • Built‑in safety features support reliable operation under real‑world conditions.

Advantages:

  • Durable performance in varied climates.

  • Multiple safety layers reduce risk and improve longevity.

Why Choose China Moneypro X1‑Split?

  • High PV Harvest: 150 % PV oversizing support for greater energy yield.

  • Smart Load Flexibility: Split‑phase 120 V & 240 V output for residential power needs.

  • Parallel Scalability: Support for up to 2 units in parallel for larger systems.

  • Intelligent Control: Multiple work modes and load optimization features.

  • Durable & Safe: NEMA 4X design and integrated electrical protection.

Typical Applications

  • Residential Solar + Storage: Hybrid solar systems with battery backup.

  • Whole‑Home Backup: Support for critical loads during grid outages.

  • Split‑Phase Households: 120 V & 240 V residential power configurations.

  • Self‑Consumption Optimization: Use more solar energy and reduce grid dependence.

FAQ – Common Questions

Q1: What power ratings are available for the X1‑Split Series?
The X1‑Split Series offers 3 kW, 3.6 kW, 6 kW, and 7 kW models.

Q2: Can these inverters be paralleled?
Yes — the series supports up to 2 units in parallel to expand capacity.

Q3: What output voltages does it support?
It supports split‑phase 120 V & 240 V output suitable for residential applications.

Q4: How efficient is the X1‑Split inverter?
The system delivers up to approximately 97 % efficiency with shadow tracking and optimized charging/discharging.

Q5: Is the inverter suitable for outdoor installation?
Yes — with NEMA 4X protection and integrated surge protection, it is designed for reliable outdoor performance.

Specifications

Parameter X1‑SPT‑3K X1‑SPT‑3.6K X1‑SPT‑6K X1‑SPT‑7K
Max. recommended PV panel power [W] 4500 5400 9000 10500
Max. DC voltage [V] 500 V 500 V 500 V 500 V
Nominal DC operating voltage [V] 390 V 390 V 390 V 390 V
MPPT voltage range [V] 70 ~ 480 70 ~ 480 70 ~ 480 70 ~ 480
Start output voltage [V] 90 V 90 V 90 V 90 V
No. of MPP trackers 3 3 2 2
Strings per MPP tracker 1 1 1 1
Max. input current (per MPPT) [A] 14 A 14 A 14 A 14 A
Max. short circuit current (per MPPT) [A] 16 A 16 A 16 A 16 A
Rated grid voltage (AC voltage range) [V] 1P 3W 120/240 1P 3W 120/240 1P 3W 120/240 1P 3W 120/240
Rated grid frequency [Hz] 50 / 60 50 / 60 50 / 60 50 / 60
Nominal AC output power [W] 3000 3600 6000 7000
Max. apparent AC output power [VA] 3000 3600 6000 7000
Nominal AC current [A] (≈)12.5 (≈)15 (≈)25 (≈)29.2
Max. AC input current [A] 12.5 15 25 29.2
Displacement power factor 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Total harmonic distortion (THDi, rated power) < 3% < 3% < 3% < 3%
EPS rated voltage [V] 6000 (VA field placeholder) 6000 6000 7000
EPS rated frequency [Hz] 50/60 50/60 50/60 50/60
EPS rated power [VA] 6000 6000 6000 7000
EPS rated current [A] 25 25 25 29.2
EPS peak power [VA] 9300 9300 9300 9300
Battery voltage range [V] 100 ~ 480 100 ~ 480 100 ~ 480 100 ~ 480
Max. charge/discharge current [A] 30 A 30 A 30 A 30 A
Max. efficiency (%) 99.90% 99.90% 99.90% 99.90%
MPPT efficiency (%) 96.5% 96.5% 97.0% 97.0%
PV→AC Max. efficiency (%) 97.4% 97.4% 97.0% 97.0%
PV→Battery Max. efficiency (%) 96.0% 96.0% 96.0% 96.0%
Battery→AC Max. efficiency (%) 96.0% 96.0% 96.0% 96.0%
Cooling concept NEMA 4X NEMA 4X NEMA 4X NEMA 4X
Topology Transformerless Transformerless Transformerless Transformerless
Communication RS485 / Pocket WiFi / Pocket LAN / CT×2 / Dry contact RS485 / Pocket WiFi / Pocket LAN / CT×2 / Dry contact RS485 / Pocket WiFi / Pocket LAN / CT×2 / Dry contact RS485 / Pocket WiFi / Pocket LAN / CT×2 / Dry contact
Dimensions of inverter [mm] 482 × 417 × 181 482 × 417 × 181 502 × 502 × 200 502 × 502 × 200
Inverter net weight [kg] 24 24 31 31
IP class IP65 IP65 IP65 IP65
Protection class Class I Class I Class I Class I
Operating temperature range [°C] -25 ~ +60°C (derating at +45°C) -25 ~ +60°C -25 ~ +60°C -25 ~ +60°C
Storage temperature [°C] -25 ~ +60°C -25 ~ +60°C -25 ~ +60°C -25 ~ +60°C
Humidity 0 ~ 100% (condensing) 0 ~ 100% (condensing) 0 ~ 100% (condensing) 0 ~ 100% (condensing)
Altitude [m] <3000 <3000 <3000 <3000
Noise emission (typical) [dB] <30 <30 <30 <30
Overvoltage category III (AC), II (DC) III (AC), II (DC) III (AC), II (DC) III (AC), II (DC)
