MP-X1-Lite-LV-1016

MP-X1-Lite-LV-1016

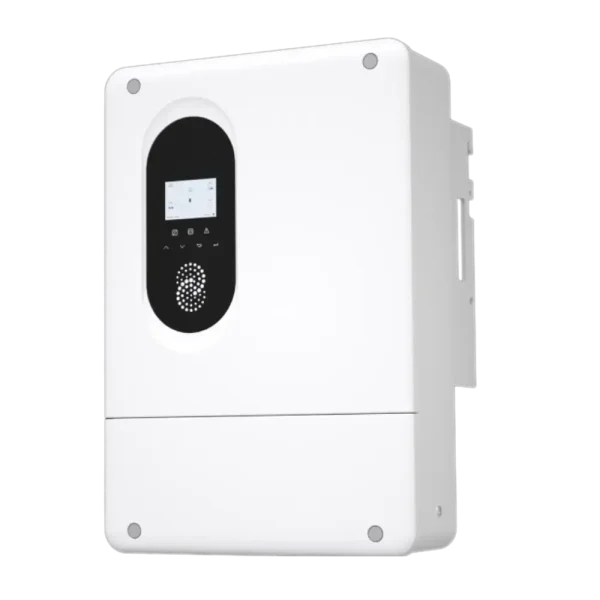

The China Moneypro X1‑Lite LV Series is a flexible low voltage hybrid solar inverter designed to support both grid‑tied and off‑grid applications. It achieves efficient solar energy harvesting, strong battery integration, fast backup response, and scalable capacity through parallel operation, making it ideal for residential and microgrid energy systems with storage and backup needs.

Category:

Share your love

Smart, High‑Performance Hybrid Inverter for Residential & Microgrid Use

The China Moneypro X1‑Lite LV Series is a flexible low voltage hybrid solar inverter designed to support both grid‑tied and off‑grid applications. It achieves efficient solar energy harvesting, strong battery integration, fast backup response, and scalable capacity through parallel operation, making it ideal for residential and microgrid energy systems with storage and backup needs.

Efficient Solar Capture & Strong AC/Hybrid Performance

Maximize Solar Energy Harvest

  • 200 % PV oversizing support improves energy capture from larger PV arrays.

  • Supports multiple MPPTs with high DC input capability for optimal panel performance.

  • Up to 110 % AC output for enhanced inverter capacity under high demand.

Benefits:

  • Higher daily solar yield and energy utilization.

  • Greater adaptation to diverse PV layouts and high‑power modules.

Reliable Backup & Fast Switchover

Seamless Power Continuity

  • Peak EPS (Emergency Power Supply) output up to 200 % of rated power for 10 s — supports surge and high‑inrush loads.

  • UPS‑level switchover time < 8 ms ensures continuity of critical loads during grid interruptions.

  • Compatible with on‑grid and off‑grid modes, enabling versatile operation of hybrid systems.

Advantages:

  • Reliable backup for essential home loads.

  • Smooth transition between grid and battery/solar supply.

Intelligent Controls & System Flexibility

Smart Energy & Load Management

  • Integrated smart load management prioritizes essential circuits and optimizes energy use.

  • Supports microgrid and generator operation, enhancing off‑grid resilience.

  • Parallel support (up to 3 units) expands capacity for larger systems where needed.

Benefits:

  • Expanded system size for higher energy needs.

  • Greater flexibility in hybrid and microgrid configurations.

Robust Safety & Long‑Term Reliability

Designed for Real‑World Conditions

  • Built‑in battery terminal temperature detection enhances safety and battery management.

  • IP65 protection degree ensures weather resistance for outdoor and harsh environments.

  • Type II SPD on AC & DC sides reduces surge risk.

  • Optional AFCI protection improves electrical safety where required.

Advantages:

  • Reliable system operation with enhanced electrical protection.

  • Reduced maintenance concerns and improved safety performance.

Why Choose China Moneypro X1‑Lite LV?

  • High Solar Capture: 200 % PV oversizing for enhanced PV energy utilization.

  • Strong Hybrid Output: Up to 110 % AC output with high EPS surge capability.

  • Fast Backup: UPS‑level switchover in < 8 ms.

  • Smart Controls: Smart load management, microgrid and generator support.

  • Scalable: Up to 3 units in parallel for expanded capacity.

  • Robust & Safe: IP65 protection with advanced electrical protection options.

Typical Applications

  • Residential Rooftop Solar Systems – Improve solar use with hybrid energy storage.

  • Hybrid Grid + Solar + Battery Installations – Smooth transition between grid and solar power.

  • Backup Power for Essential Loads – Protect vital home circuits during outages.

  • Microgrid Systems – Integrate multiple units for community or off‑grid energy solutions.

FAQ – Common Questions

Q1: What power ratings are available in the X1‑Lite LV Series?
The China Moneypro X1‑Lite LV series includes 8 kW, 10 kW, and 12 kW variants.

Q2: How fast is the switchover during an outage?
The X1‑Lite LV inverter offers UPS‑level switchover time of < 8 ms, keeping loads powered without noticeable interruption.

Q3: Can I expand system capacity?
Yes — the inverter supports parallel operation up to 3 units for larger capacity and hybrid configurations.

Q4: What types of batteries are compatible?
This inverter supports low voltage battery systems, including lithium and lead‑acid types, with proper matching and BMS compliance.

Q5: Is the system suitable for outdoor installation?
Yes — with IP65 protection, the design is suited for outdoor environmental conditions.

Specifications

Parameter MP-X1‑Lite‑8.0‑LV MP-X1‑Lite‑10.0‑LV MP-X1‑Lite‑12.0‑LV
PV INPUT
Max. recommended PV array power 16 kWp 20 kWp 24 kWp
Max. PV input voltage 600 V 600 V 600 V
Nominal PV input voltage 360 V 360 V 360 V
Operating voltage range / MPPT voltage range 50 ~ 550 V 50 ~ 550 V 50 ~ 550 V
Start‑up voltage 110 V 110 V 110 V
No. of MPP trackers / Strings per MPP tracker 2/(2/2) 2/(2/2) 3/(2/2/2)
Max. input current per MPPT (MPPT1/2/3) 32 A / 32 A 32 A / 32 A 32 A / 32 A / 32 A
Max. input short circuit current per MPPT (MPPT1/2/3) 40 A / 40 A 40 A / 40 A 40 A / 40 A / 40 A
AC OUTPUT
Rated output power 8000 W 10000 W 12000 W
Rated output current 34.8 A @ nominal AC 43.5 A @ nominal AC 52.2 A @ nominal AC
Max. output apparent power 8800 W 11000 W 13200 W
Max. output continuous current 40 A 50 A 60 A
Nominal AC voltage 1/N/PE, 220 / 230 / 240 V 1/N/PE, 220 / 230 / 240 V 1/N/PE, 220 / 230 / 240 V
Max. AC input apparent power 12650 VA 14950 VA 18400 VA
Max. AC input current 55 A 65 A 80 A
Nominal AC frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
AC frequency range 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading)
EPS (OFF‑GRID) OUTPUT
Peak EPS output power 2 × rated power, 10s 2 × rated power, 10s 2 × rated power, 10s
EPS switchover time < 6 ms < 6 ms < 6 ms
GENERAL
Dimensions (W × H × D) 462 × 651 × 280 mm 462 × 651 × 280 mm 462 × 651 × 280 mm
Net weight 38.5 kg 38.5 kg 38.5 kg
Ingress protection IP65 IP65 IP65
Cooling concept Smart air cooling Smart air cooling Smart air cooling
Communication interfaces RS485 / PLC / WiFi / USB RS485 / PLC / WiFi / USB RS485 / PLC / WiFi / USB
Display LCD LCD LCD
Certifications CE CE CE
