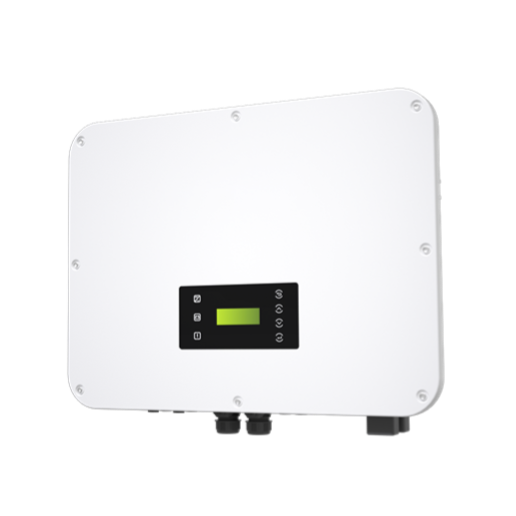

MP-X3-ULTRA 15-30kW Three Phase Energy Storage Inverter-4502

MP-X3-ULTRA 15-30kW Three Phase Energy Storage Inverter-4502

The China Moneypro X3‑ULTRA Series is a high‑performance hybrid solar inverter designed to optimize PV energy harvest, support robust off‑grid or on‑grid operation, enable micro‑grid connectivity, and integrate with storage systems for backup and energy self‑consumption. With strong adaptability, advanced management features, and scalable parallel support, it suits a wide range of residential, commercial, and industrial clean energy installations.

Category:

Share your love

Flexible, High‑Yield Hybrid Inverter for Residential & C&I

The China Moneypro X3‑ULTRA Series is a high‑performance hybrid solar inverter designed to optimize PV energy harvest, support robust off‑grid or on‑grid operation, enable micro‑grid connectivity, and integrate with storage systems for backup and energy self‑consumption. With strong adaptability, advanced management features, and scalable parallel support, it suits a wide range of residential, commercial, and industrial clean energy installations.

Maximum Solar Utilization & Smart Performance

Capture More Solar Energy

  • Supports up to 200 % PV oversizing — enabling maximum energy capture and conversion into AC output and battery storage.

  • High‑capacity 36 A PV input per MPPT supports high‑power PV modules.

  • Up to 3 MPPTs for precise solar tracking across diverse array configurations.

Benefits:

  • Higher solar yield and improved PV utilization.

  • Strong compatibility with complex PV installations.

Robust Backup & Scalable System Integration

Reliable Power When You Need It

  • Available output power options: 15 kW, 19.9 kW, 20 kW, 25 kW, 30 kW — covers both residential and larger scale usage.

  • Supports up to 10 units in parallel — scalable for larger systems or higher backup capacity.

  • Micro‑grid & generator support enables flexible off‑grid operation and resilient power supply.

  • UPS‑level switching with < 10 ms transfer time for uninterrupted critical loads.

Advantages:

  • Flexible scaling from small residential to commercial micro‑grid applications.

  • Fast transition to backup during grid outages.

Intelligent Energy & Load Management

Smart Control for Modern Energy Systems

  • Built‑in shadow tracking improves PV energy tracking under partial shade.

  • Intelligent loads management for heat pumps, smart EV chargers, etc.

  • VPP ready (OpenADR, IEEE2030.5, FCAS, API compatibility) for future grid services.

Benefits:

  • Higher energy autonomy and responsive power dispatch.

  • Supports modern smart energy ecosystems and grid‑interactive operation.

Durable & Safe Design

Engineered for Longevity

  • IP66 protection rating ensures durability and resilience in outdoor environments.

  • Type II SPD protection on both AC & DC sides for enhanced electrical safety.

  • Optional AFCI protection increases system safety against arc faults.

Advantages:

  • Rugged enclosure suitable for varied installations.

  • Multiple safety layers protect the system and connected loads.

Why Choose China Moneypro X3‑ULTRA?

  • High Solar Capture: 200 % PV oversizing with MPPT flexibility.

  • Scalable Power Options: Wide range of power ratings up to 30 kW.

  • Parallel & Off‑Grid Ready: Up to 10 units parallel, micro‑grid support.

  • Smart Energy Management: Advanced load controls and VPP support.

  • Safe & Durable: High ingress protection with robust electrical safeguards.

Typical Applications

  • Residential Solar + Storage Systems: High‑power solar conversion with battery integration.

  • Micro‑Grid & Off‑Grid Systems: Reliable performance independent of grid.

  • Commercial & Industrial Solar: Scalable hybrid solution for business energy demand.

  • Smart Load Management Scenarios: Coordinated control for EV charging, heat pumps.

FAQ – Common Questions

Q1: What power ratings does the X3‑ULTRA series offer?
China Moneypro X3‑ULTRA is available in 15 kW, 19.9 kW, 20 kW, 25 kW, and 30 kW variants.

Q2: Can multiple units be combined?
Yes — the system supports up to 10 units in parallel for increased capacity and backup.

Q3: Does it work off‑grid?
Yes — micro‑grid support and generator compatibility allow off‑grid operation.

Q4: Is the unit suitable for outdoor installation?
Yes — with an IP66 protection rating, it withstands harsh environments.

Q5: What smart features are included?
Includes intelligent load management, shadow tracking, and VPP readiness for advanced energy control.

Specifications

Technical Data
X3-ULT-15K
X3-ULT-15KP
X3-ULT-19.9K
X3-ULT-20K
X3-ULT-20KP
X3-ULT-25K
X3-ULT-30K
PV INPUT
Max. recommended PV array power
30000 Wp
30000 Wp
40000 Wp
40000 Wp
40000 Wp
50000 Wp
60000 Wp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
Rated PV input voltage
600 V
600 V
600 V
600 V
600 V
600 V
600 V
Operating voltage range
120 ~ 950 V
120 ~ 950 V
120 ~ 950 V
120 ~ 950 V
120 ~ 950 V
120 ~ 950 V
120 ~ 950 V
MPPT voltage range
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
Start-up voltage
200 V
200 V
200 V
200 V
200 V
200 V
200 V
No. of MPP trackers / Strings per MPP tracker
2 / (2/2)
3 / (2/2/2)
2 / (2/2)
2 / (2/2)
3 / (2/2/2)
3 / (2/2/2)
3 / (2/2/2)
Max. input current per MPPT (MPPT1/2/3)
36 A / 36 A
36 A / 36 A / 36 A
36 A / 36 A
36 A / 36 A
36 A / 36 A / 36 A
36 A / 36 A / 36 A
36 A / 36 A / 36 A
Max. input short circuit current per MPPT (MPPT1/2/3)
45 A / 45 A
45 A / 45 A / 45 A
45 A / 45 A
45 A / 45 A
45 A / 45 A / 45 A
45 A / 45 A / 45 A
45 A / 45 A / 45 A
AC INPUT & OUTPUT (ON-GRID)
Rated output power
15000 W (AS4777 14999 W)
15000 W (AS4777 14999 W)
19999 W
20000 W
20000 W
25000 W (VDE4105 24900 W)
30000 W (AS4777 29999 W, VDE4105 29900 W)
Rated output current
21.8 A
21.8 A
29.0 A
29.0 A
29.0 A
36.3 A
43.5 A
Max. output apparent power
16500 VA (AS4777 14999 VA)
16500 VA (AS4777 14999 VA)
19999 VA
22000 VA
22000 VA
27500 VA (VDE4105 24900 VA)
30000 VA (AS4777 29999 VA, VDE4105 29900 VA)
Max. output continuous current
24.0 A (AS4777 21.8 A)
24.0 A (AS4777 21.8 A)
29.0 A
31.9 A
31.9 A
39.9 A (VDE4105 36.3 A)
43.5 A
Rated AC voltage
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
Max. AC input apparent power
15000 VA
15000 VA
19999 VA
20000 VA
20000 VA
25000 VA
30000 VA
Max. AC input current
21.8 A
21.8 A
29.0 A
29.0 A
29.0 A
36.3 A
43.5 A
Rated AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
<3%
BATTERY
Battery type
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Battery voltage range
120 ~ 800 V
120 ~ 800 V
120 ~ 800 V
120 ~ 800 V
120 ~ 800 V
120 ~ 800 V
120 ~ 800 V
Max. charge / discharge current
60 A (30 A × 2)
60 A (30 A × 2)
60 A (30 A × 2)
60 A (30 A × 2)
60 A (30 A × 2)
60 A (30 A × 2)
60 A (30 A × 2)
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
Rated EPS output power
15000 VA
15000 VA
19999 VA
20000 VA
20000 VA
25000 VA
30000 VA
Peak EPS output power
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
Switchover time
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
EFFICIENCY
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating ambient temperature range
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
Overvoltage category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
GENERAL
Dimensions (W × H × D)
696 × 526 × 240 mm
696 × 526 × 240 mm
696 × 526 × 240 mm
696 × 526 × 240 mm
696 × 526 × 240 mm
696 × 526 × 240 mm
696 × 526 × 240 mm
Net weight
46 kg
47.5 kg
46 kg
46 kg
47.5 kg
48.5 kg
48.5 kg
Cooling concept
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Communication interfaces
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Meter (RS-485), DI × 2, DO × 1, Modbus
Power consumption (night)
<5 W
<5 W
<5 W
<5 W
<5 W
<5 W
<5 W
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
PROTECTION
Protections
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
PV insulation resistance detection, Reverse polarity protection, Anti-islanding protection, AC/DC overcurrent protection, AC/DC overvoltage protection, Short circuit protection, Over-temperature protection, Residual current detection, Grid monitoring
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
Optional
Optional
