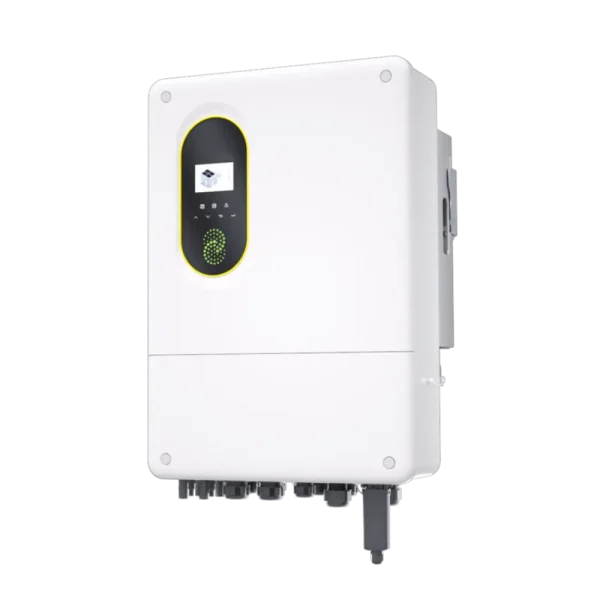

MP-X3-NEO-LV-879

MP-X3-NEO-LV-879

The China Moneypro X3‑NEO‑LV Series is a high‑performance three‑phase low‑voltage hybrid inverter system designed for residential and commercial solar storage applications. Its hybrid architecture supports both on‑grid and off‑grid operation, smart load management, and strong PV integration, delivering efficient energy usage and reliable backup power in diverse energy environments.

Category:

Share your love

High‑Efficiency, Flexible & Intelligent Hybrid Power

The China Moneypro X3‑NEO‑LV Series is a high‑performance three‑phase low‑voltage hybrid inverter system designed for residential and commercial solar storage applications. Its hybrid architecture supports both on‑grid and off‑grid operation, smart load management, and strong PV integration, delivering efficient energy usage and reliable backup power in diverse energy environments.

Flexible Operation & Smart Integration

On‑Grid, Off‑Grid & Microgrid Ready

  • Supports parallel operation of up to 3 units for scalable system sizing and higher combined output.

  • Hybrid design enables seamless transition between on‑grid, off‑grid, and microgrid modes.

  • Compatible with generator integration for greater adaptability in weak grid or backup scenarios.

Benefits:

  • Flexible energy system configuration for homes and businesses.

  • Reliable power delivery even in grid instability.

High Performance & Maximum Harvest

Efficient Power Conversion

  • Supports up to 200 % PV oversizing to capture more solar energy.

  • Up to 2 MPPTs optimize energy harvest under varied PV orientations.

  • High DC input capacity — up to 36 A per MPPT — for compatibility with high‑power solar modules.

  • Low start‑up voltage enhances solar production, especially in low irradiance conditions.

Advantages:

  • Higher daily solar yield.

  • Efficient integration with modern PV arrays.

Reliable Backup & UPS‑Level Response

Continuous Power When You Need It

  • UPS‑level switchover time < 3 ms ensures minimal disruption during grid outages.

  • Up to 200 % EPS output power for short bursts (≈10 s) supports high‑start loads.

  • Supports both grid‑tied and hybrid backup modes with battery energy.

Benefits:

  • Stable emergency power supply for critical loads.

  • Better handling of transient and overload conditions.

Intelligent Control & Monitoring

Smart Energy Management

  • Integrated smart load management helps prioritize essential circuits.

  • Remote monitoring and control (optional Wi‑Fi/cloud connectivity) gives real‑time system insights.

  • Designed for simple commissioning and operations in residential/commercial installations.

Benefits:

  • Easy system visibility and diagnostics.

  • Better energy dispatch and usage insights.

Durable & Safe Design

Built for Real‑World Applications

  • IP65 ingress protection level for tough outdoor or harsh environment installations.

  • Built‑in Type II SPD (Surge Protection Device) enhances electrical safety.

  • Optional AFCI (Arc Fault Circuit Interrupter) available to reduce fire risk from DC arc faults.

  • Thermal monitoring (battery terminal temperature detection) improves operational reliability.

Advantages:

  • Solid protection against dust, water, and electrical surges.

  • Enhanced safety for long‑term operation.

Why Choose China Moneypro X3‑NEO‑LV?

  • Scalable Hybrid Solution: Parallel up to 3 units for larger solar projects.

  • High Solar Efficiency: Up to 200 % PV oversizing and robust MPPT performance.

  • Fast Backup Switching: UPS‑level switchover < 3 ms keeps systems running.

  • Reliable Safety: IP65 protection, SPD, and optional AFCI.

  • Smart Load & Cloud Control: Modern energy management for flexible usage.

Typical Applications

  • Residential Solar + Storage: Maximize self‑consumption and provide backup energy.

  • Commercial Hybrid Systems: Efficient power management for business loads.

  • Off‑Grid & Weak Grid Areas: Reliable hybrid operation with generator support.

  • Microgrid Projects: Flexible integration into smart energy communities.

FAQ – Common Questions

Q1: What power sizes are offered in this series?
The X3‑NEO‑LV Series includes multiple output configurations, such as 5 kW, 8 kW, 10 kW, 12 kW, 15 kW, and 20 kW variants.

Q2: How many units can be paralleled?
Up to 3 units can be operated in parallel to increase total capacity and output.

Q3: Does it support backup power?
Yes — it offers EPS (backup) output with UPS‑level switchover and high peak power handling.

Q4: Is the inverter safe for outdoor installation?
Yes — with IP65 protection and integrated surge safety devices, it is suitable for outdoor use.

Q5: Can I integrate this with a generator?
Yes — the hybrid design supports generator integration for enhanced off‑grid capability.

Specifications

Parameter X3‑NEO‑5K‑LV X3‑NEO‑8K‑LV X3‑NEO‑10K‑LV X3‑NEO‑12K‑LV X3‑NEO‑15K‑LV X3‑NEO‑20K‑LV
PV INPUT
Max. recommended PV array power 10 kWp 16 kWp 20 kWp 24 kWp 30 kWp 40 kWp
Max. PV input voltage① 1000 V 1000 V 1000 V 1000 V 1000 V 1000 V
Rated PV input voltage 640 V 640 V 640 V 640 V 640 V 640 V
Operating voltage range 160 ~ 950 V 160 ~ 950 V 160 ~ 950 V 160 ~ 950 V 160 ~ 950 V 160 ~ 950 V
Start‑up voltage 150 V 150 V 150 V 150 V 150 V 150 V
No. of MPP trackers / Strings per MPPT 2 / (2/1) 2 / (1/1) 2 / (2/1) 2 / (2/2) 2 / (2/2) 2 / (2/2)
Max. input current per MPPT 36 A / 18 A 18 A / 18 A 36 A / 18 A 36 A / 36 A 36 A / 36 A 40 A / 40 A
Max. input short circuit current per MPPT 50 A / 25 A 25 A / 25 A 50 A / 25 A 50 A / 50 A 50 A / 50 A 50 A / 50 A
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 5 kW 8 kW 10 kW 12 kW 15 kW 20 kW
Rated output current 7.3 A @ 230 V 11.6 A @ 230 V 14.5 A @ 230 V 17.4 A @ 230 V 21.8 A @ 230 V 29.0 A @ 230 V
Max. output apparent power 5.5 kVA 8.8 kVA 11 kVA 13.2 kVA 16.5 kVA 22.0 kVA
Max. output continuous current 8.0 A @ 230 V 13.4 A @ 230 V 16.0 A @ 230 V 19.2 A @ 230 V 24.0 A @ 230 V 31.9 A @ 230 V
Rated AC voltage 3W / N / PE, 220/380 V ; 3W / N / PE, 230/400 V ; 3W / N / PE, 240/415 V Same Same Same Same Same
Max. AC input apparent power 10 kVA 16 kVA 16 kVA 24 kVA 24 kVA 30 kVA
Max. AC input current 24.3 A 24.3 A 36.4 A 36.4 A 43.5 A
Max. continuous AC passthrough (grid to load) — — — — — —
Rated AC frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
AC frequency range② 50 ± 5 Hz / 60 ± 5 Hz Same Same Same Same Same
Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) Same Same Same Same Same
THDi (rated power) < 3% < 3% < 3% < 3% < 3% < 3%
BATTERY
Battery type LFP / Lead‑acid Same Same Same Same Same
Battery voltage range 40 ~ 60 V Same Same Same Same Same
Max. charge / discharge current 200 A 200 A 200 A 280 A 280 A 300 A
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS output power 5 kVA 8 kVA 10 kVA 12 kVA 15 kVA 20 kVA
Peak EPS output power 2 times of rated power, 10 s Same Same Same Same Same
Switchover time < 3 ms < 3 ms < 3 ms < 3 ms < 3 ms < 3 ms
EFFICIENCY
Max. efficiency 97.6% 97.6% 97.6% 97.6% 97.6% 97.6%
European efficiency 97.0% 97.0% 97.0% 97.0% 97.0% 97.0%
ENVIRONMENT LIMIT
Ingress protection IP65 IP65 IP65 IP65 IP65 IP65
Operating ambient temperature range -25 ~ 60°C (>45°C derating) Same Same Same Same Same
Max. operating altitude 3000 m Same Same Same Same Same
Relative humidity 4 ~ 100% RH (condensing) Same Same Same Same Same
Overvoltage category Mains: III, Battery: II, PV: II Same Same Same Same Same
GENERAL
Dimensions (W × H × D mm) 520 × 705 × 258 Same Same Same Same Same
Net weight 44.6 kg Same Same Same Same Same
Cooling concept Natural cooling / Smart air cooling Same Same Same Same Same
Communication interfaces RS485, CAN, USB, DI/DO Same Same Same Same Same
Display LCD Same Same Same Same Same
Topology Non‑isolated for PV side / HF for battery side Same Same Same Same Same
Certifications EN IEC 62109‑1 / ‑2, NRS 097‑2‑1, IEC 61727, IEC 62116, PEA, MEA, BIS, G98 / G99③ Same Same Same Same Same
