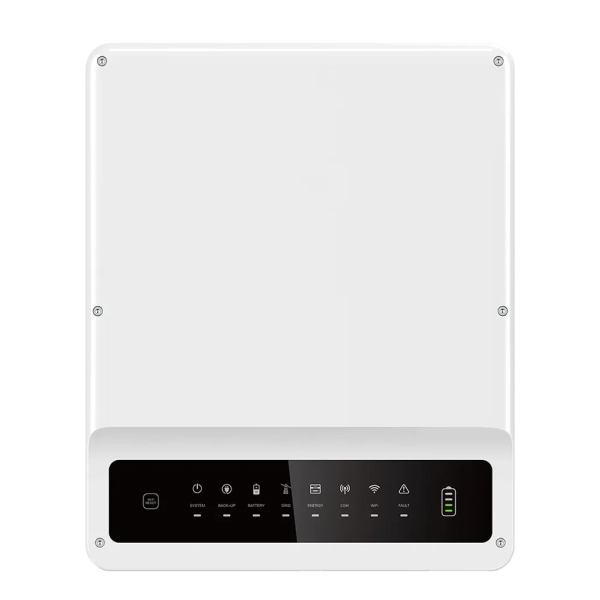

MP-ET PLUS+ Series 5-10kW Three Phase Hybrid Inverter-795

Intelligent Three-Phase Hybrid Power for Residential Energy

The China Moneypro ET PLUS+ Series is a 5 ~ 10 kW three-phase hybrid inverter designed for modern residential energy storage and smart power management. It combines high power generation capability with advanced energy control features like smart load control, peak shaving, and export power limiting, helping homeowners optimize energy self-consumption, reduce grid electricity demand, and enhance overall system performance. With UPS-level switching < 10 ms, robust safety features, and flexible future-proof options, the ET PLUS+ Series delivers reliable energy autonomy for homes and small commercial use.

Smart Load & Power Control

Customized Load Management

• Enables smart load control to tailor power generation according to household consumption patterns.

• Integrated export power limit adapts to utility provider requirements, preventing excess grid feed-in.

• Supports peak shaving to reduce peak grid demand charges during high consumption periods.

Advantages:

• Reduces peak electricity costs.

• Matches total generation with real-time household needs.

• Improves energy autonomy and grid interaction.

Seamless Backup Power

Ultra-Fast UPS-Level Switching

• The ET PLUS+ Series achieves backup switching in less than 10 ms, ensuring uninterrupted power for critical loads during grid disturbances.

• Built-in three-phase architecture supports stable power delivery and enhanced load management.

Benefits:

• Continuous comfort even during outages.

• Reliable support for sensitive equipment.

Flexible & Future-Ready Design

Easy Upgrade to Storage

• Offers battery-ready option that activates energy storage with a simple code, making future expansion straightforward.

• Supports 100 % unbalanced output, allowing flexibility in three-phase load distribution.

• Forced battery charging via dedicated controls improves battery utilization.

Advantages:

• Simple expansion to hybrid systems.

• Versatile for varied electrical needs.

• Future-proof investment for energy storage.

High Generation & Optimized Consumption

Peak Performance

• Supports 150 % DC input oversizing, enabling increased PV array capacity for higher energy yield.

• Achieves 98.2 % max. efficiency for superior energy conversion.

• Each string supports up to 16 A DC input current, compatible with high-power modules.

Benefits:

• Maximizes daily energy production.

• Improves use of high-power PV modules.

• Reduces reliance on grid electricity.

Robust Safety & Reliability

Engineered for Long-Term Operation

• In-built Type II SPD on DC side offers surge protection, reducing external device requirements.

• IP66 ingress protection ensures dust and water resistance for outdoor performance.

• Fanless and quiet design enhances user comfort during operation.

Benefits:

• Stable and reliable in various environmental conditions.

• Strong protection against electrical hazards.

• Comfortable, low-noise operation.

Why Choose China Moneypro ET PLUS+ Series?

• Smart Load Control: Tailored energy distribution for optimal consumption.

• Seamless Backup: UPS-level switching in < 10 ms for uninterrupted power.

• Expandable Storage: Battery-ready option makes hybrid upgrades easy.

• High Efficiency: Up to 98.2 % energy conversion efficiency.

• Robust Safety: Built-in SPD and IP66 protection for long-lasting performance.

Key Specifications

(Only parameters available in the original page are included)

• Power Range: 5 ~ 10 kW

• 150 % DC Input Oversizing

• 98.2 % Max. Efficiency

• Maximum 16 A DC Input Current per String

Typical Applications

• Residential Rooftops: Enhanced self-consumption and backup power.

• Smart Homes: Integrated energy control via smart load and export power features.

• Battery Ready Systems: Easy future upgrade to energy storage.

• Three-Phase Loads: Stable three-phase power support for modern households.

FAQ – Common Questions

Q1: How fast does ET PLUS+ switch to backup mode?
It achieves UPS-level switching in less than 10 ms, providing seamless backup during outages.

Q2: Can the inverter be expanded for hybrid storage?
Yes, it offers a battery-ready option that allows future activation of energy storage.

Q3: What is the maximum efficiency of the ET PLUS+ Series?
The inverter delivers up to 98.2 % maximum efficiency.

Q4: Does it support high-power PV modules?
Yes — it supports up to 16 A DC input per string, compatible with high-power PV modules.

Q5: Is the ET PLUS+ safe for outdoor use?
Yes — with IP66 ingress protection and built-in surge protection for reliable long-term performance.
