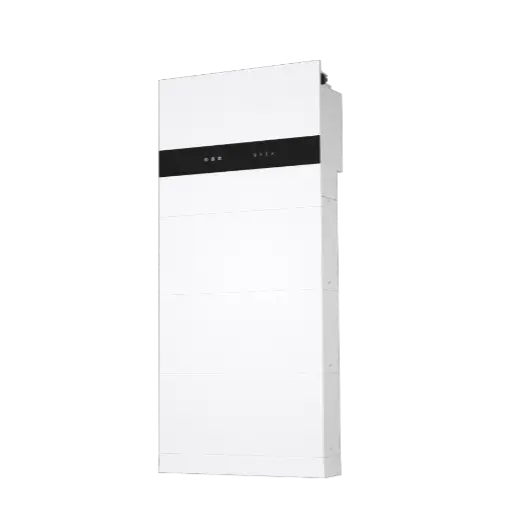

MP-X3-IES-P 4-15kW All-in-one Residential ESS-9130

MP-X3-IES-P 4-15kW All-in-one Residential ESS-9130

The China Moneypro X3-IES-P is an integrated residential hybrid energy storage system that combines solar inverter, battery support, and intelligent energy management in a single all-in-one unit. It is designed to maximize solar self-consumption, provide backup power capability, and adapt to diverse household energy demands. Flexible PV input compatibility and fast switchover performance ensure reliable energy delivery day and night.

Category:

Share your love

Smart Hybrid Storage for Modern Homes

The China Moneypro X3-IES-P is an integrated residential hybrid energy storage system that combines solar inverter, battery support, and intelligent energy management in a single all-in-one unit. It is designed to maximize solar self-consumption, provide backup power capability, and adapt to diverse household energy demands. Flexible PV input compatibility and fast switchover performance ensure reliable energy delivery day and night.

High Yield & Efficient Energy Harvest

Maximize Solar Utilization

  • Up to 200 % PV oversizing allows larger PV arrays relative to inverter capacity, increasing daily solar harvest.

  • Up to 20 A DC input per MPPT for strong PV capture under varied conditions.

  • Low startup voltage and three MPPT trackers (on larger variants) support better energy performance across orientations.

Benefits:

  • Enhanced energy capture from diverse rooftop configurations.

  • Stronger daily solar utilization with optimized tracking and DC input.

Reliable Grid & Off-Grid Support

Seamless Power Delivery

  • UPS-level switchover in < 10 ms ensures uninterrupted power supply for critical loads during grid instability.

  • EPS (off-grid) rated power matches rated inverter capacity — able to support household loads during power outages.

  • Peak EPS output up to 200 % for 10 s provides overload capability for transient high demand.

Advantages:

  • Smooth transitions between grid and backup with minimal disruption.

  • Stronger transient power support for heavy loads.

Intelligent Management & Smart Features

Optimized System Control

  • Built-in intelligent energy management algorithms forecast solar generation and load to determine optimal usage strategies.

  • VPP-ready features with protocol support (OpenADR, IEEE2030.5, FCAS, API) enable participation in grid flexibility programs.

  • Smart scene and schedule settings support advanced load and tariff management.

Benefits:

  • Smarter solar scheduling and consumption optimization.

  • Compatibility with modern grid interaction and energy programs.

Safe & Durable Design

Built for Residential Reliability

  • Lithium-ion (LFP) battery compatibility ensures high performance and stability.

  • IP66 protection rating offers robust resistance to dust and water for reliable operation.

  • Optional AFCI protection and AC/DC SPD Type II add further safety layers.

Advantages:

  • Durable system operation in a wide range of environments.

  • Enhanced safety protections for residential installation.

Why Choose China Moneypro X3-IES-P?

  • Wide Power Range: Available from 4 kW to 15 kW to match various household sizes.

  • High Solar Harvest: Supports up to 200 % PV oversizing and global MPP tracking.

  • Seamless Backup: UPS-level switchover < 10 ms and robust EPS performance.

  • Smart & Connected: Intelligent energy management with VPP-ready capabilities.

  • Durable & Safe: LFP battery support with IP66 protection and optional AFCI.

Key Specifications (Representative Models)

Model Max. PV Array Power MPPT Trackers Rated Output Power EPS Output Switchover Time Protection
X3-IES-4K-P 8 kWp 2 MPPTs 4 kVA 4 kVA < 10 ms IP66
X3-IES-5K-P 10 kWp 2 MPPTs 5 kVA 5 kVA < 10 ms IP66
X3-IES-6K-P 12 kWp 2 MPPTs 6 kVA 6 kVA < 10 ms IP66
X3-IES-8K-P 16 kWp 3 MPPTs 8 kVA 8 kVA < 10 ms IP66
X3-IES-10K-P 20 kWp 3 MPPTs 10 kVA 10 kVA < 10 ms IP66
X3-IES-12K-P 24 kWp 3 MPPTs 12 kVA 12 kVA < 10 ms IP66
X3-IES-15K-P 30 kWp 3 MPPTs 15 kVA 15 kVA < 10 ms IP66

Rated output and PV array sizing are approximate, actual values depend on local configuration and installation conditions.

Typical Applications

  • Residential Rooftops: Integrated solar + storage support for daily use.

  • Backup Power Systems: Reliable support for essential loads during outages.

  • Smart Energy Homes: Advanced scheduling and tariff optimization.

  • Grid-Responsive Systems: VPP-ready for modern grid interaction.

FAQ – Common Questions

Q1: What power sizes are available in the X3-IES-P series?
Models range from 4 kW up to 15 kW to match various residential energy needs.

Q2: How quickly can it switch to backup power?
The system provides UPS-level switchover in < 10 ms, ensuring minimal disruption during outages.

Q3: Does it support large PV arrays?
Yes — it supports up to 200 % PV oversizing for larger PV generation capture.

Q4: Is the system safe for outdoor installation?
With IP66 protection, it resists dust and water for many outdoor or sheltered installations.

Q5: What battery chemistry is used?
It supports Li-ion (LFP) battery types, known for safety and stable cycling performance.

Specifications

Technical Data
X3-IES-P-4
X3-IES-P-5
X3-IES-P-6
X3-IES-P-8
X3-IES-P-10
X3-IES-P-12
X3-IES-P-15
System Overview
Rated output power
4 kW
5 kW
6 kW
8 kW
10 kW
12 kW
15 kW
Number of batteries
2
3
4
5
6
5
6
Nominal capacity
10.2 kWh
15.3 kWh
20.4 kWh
25.6 kWh
30.7 kWh
25.6 kWh
30.7 kWh
Usable energy
9.2 kWh
13.8 kWh
18.4 kWh
23.0 kWh
27.6 kWh
23.0 kWh
27.6 kWh
Max. charge / discharge power
10.2 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
Degree of protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating temperature range
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
Allowable relative humidity range
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Net weight
147.2 kg
194.2 kg
241.2 kg
147.2 / 146.2 kg
194.2 / 146.2 kg
147.2 / 146.2 kg
194.2 / 146.2 kg
Dimension (W × H × D)
730 × 1281 × 209.5 mm
730 × 1599 × 209.5 mm
730 × 1917 × 209.5 mm
730 × 1281 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1599 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1281 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1599 × 209.5 mm / 730 × 1120.5 × 150 mm
Display
LCD
LCD
LCD
LCD
LCD
LCD
LCD
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Communication
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
PV Input
Max. recommended PV array power
8 kWp
10 kWp
12 kWp
16 kWp
20 kWp
24 kWp
30 kWp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
Nominal PV input voltage
600 V
600 V
600 V
600 V
600 V
600 V
600 V
Operating voltage range
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
MPPT voltage range
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
Start-up voltage
140 V
140 V
140 V
140 V
140 V
140 V
140 V
No. of MPP trackers / Strings per MPP tracker
2 / (1/1)
2 / (1/1)
2 / (1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
Max. input current per MPPT (MPPT1/2/3)
20 A / 20 A
20 A / 20 A
20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
Max. input short circuit current per MPPT
25 A / 25 A
25 A / 25 A
25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
AC Input & Output (On-Grid)
Rated output power
4 kW
5 kW
6 kW
8 kW
10 kW
12 kW
15 kW
Rated output current
5.8 A
7.3 A
8.7 A
11.6 A
14.5 A
17.4 A
21.8 A
Max. output apparent power
4000 VA
5500 VA
6600 VA
8800 VA
10000 VA
13200 VA
16500 VA
Max. output continuous current
6.1 A
8.4 A
10 A
13.4 A
15.2 A
20.0 A
25.0 A
Nominal AC voltage
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
Max. input apparent power
10 kVA
10 kVA
12 kVA
16 kVA
20 kVA
20 kVA
20 kVA
Max. AC input current
16.1 A
16.1 A
19.3 A
25.8 A
32.0 A
32.0 A
32.0 A
Nominal AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
<3%
Battery
Battery voltage range
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
Communication interfaces
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
BMS module
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
Battery module
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
Composition
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
Battery type
LFP
LFP
LFP
LFP
LFP
LFP
LFP
Nominal capacity / Nominal capacity
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
Usable energy
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
Standard power
3 kW
3 kW
3 kW
3 kW
3 kW
3 kW
3 kW
Max power
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
Max. charge/discharge current
50 A
50 A
50 A
50 A
50 A
50 A
50 A
Cycle life
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
Warranty
10 years
10 years
10 years
10 years
10 years
10 years
10 years
Safety
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
TBMS-MCS0800E dimensions (W × H × D) / Weight
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
TP-HS50E dimensions (W × H × D) / Weight
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
Base dimensions (W × H × D) / Weight
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
Series box dimensions (W × H × D) / Weight
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
EPS (Off-Grid) Output (With Battery)
Rated EPS output voltage, frequency
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
Rated EPS output power
4 kVA
5 kVA
6 kVA
8 kVA
10 kVA
12 kVA
15 kVA
Peak EPS output power
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
Switchover time
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
Efficiency
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
Environment Limit
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating ambient temperature range
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
Overvoltage Category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
General
Dimensions (W × H × D)
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
Net weight
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Communication interfaces
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
Power consumption (night)
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
AC auxiliary power supply (APS)
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Protection
Protections
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
Optional
Optional

Related products
