MP-SMILE-M5 5 kW | 5 ?C 20 kWh AC/ DC / Hybrid-Coupling ESS-4092

Smart & Scalable Solar Storage for Homes

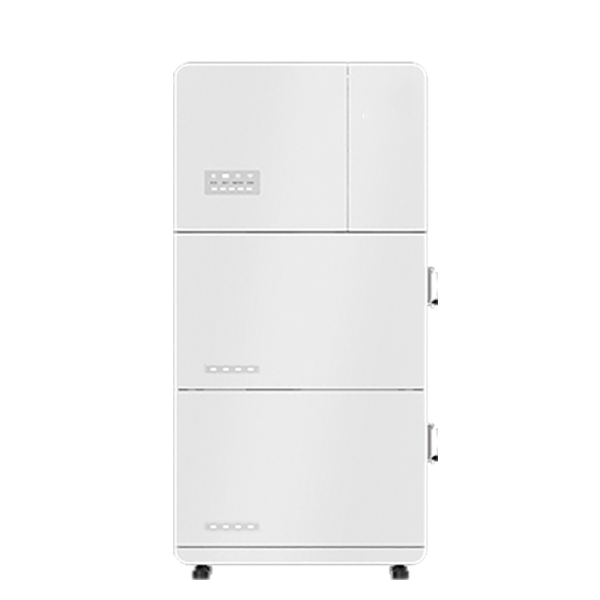

The China Moneypro SMILE-M5 is a single-phase all-in-one residential energy storage solution that integrates a 5 kW hybrid inverter and scalable battery modules into a compact, stackable unit. Designed for easy installation and maintenance, it supports solar self-consumption, peak load shifting, and backup power with intuitive operation and robust safety features.

Integrated & Expandable Design

Tailored to Your Energy Needs

• All-in-one modular architecture combines inverter and battery for simplified installation.

• Stackable battery modules support flexible capacity configurations from 5 kWh up to 20 kWh (1–4 modules in parallel).

• Plug-and-play setup reduces wiring complexity and accelerates commissioning.

Benefits:

• Enables homeowners to start with a small battery and expand capacity as needed.

• Suitable for both new installations and system upgrades.

High Performance & Efficient Operation

Maximize Solar Utilization

• Nominal output power: 5 kW for reliable home power delivery.

• 200 % PV oversizing support allows larger PV arrays to maximize energy harvest.

• 100 % depth of discharge (DoD) enables full use of stored energy.

• Dual MPPT inputs optimize energy production from varied panel orientations.

Advantages:

• Improves daily self-consumption with efficient energy capture and delivery.

• Handles higher PV input without derating system performance.

Reliable Backup & Smart Control

Smooth Power Continuity

• Supports UPS-style backup during grid outages when paired with appropriate hybrid configuration.

• Integrated changeover switching helps maintain power to critical loads during inverter or grid failures.

• Ethernet & Wi-Fi communication provides system monitoring and performance data.

Benefits:

• Keeps essential appliances running during interruptions.

• Makes remote monitoring and control easy via wireless connectivity.

Safe, Durable & Quiet

Built for Everyday Use

• Built-in aerosol fire suppression adds an extra layer of safety for home environments.

• Ultra-quiet operation (< 35 dB) fits well in noise-sensitive residential settings.

• IP65 protection class for both inverter and battery modules supports indoor or sheltered outdoor installation.

• 10-year system warranty gives long-term peace of mind.

Advantages:

• High system safety and environmental resistance.

• Quiet design enhances living comfort without operational noise.

Why Choose China Moneypro SMILE-M5?

• All-in-One Integration: Inverter + battery in a compact modular system.

• Flexible Expansion: Stackable modules from 5 kWh up to 20 kWh.

• Enhanced Solar Yield: 200 % PV oversizing for better energy harvest.

• Full Usable Capacity: 100 % DoD battery modules maximize stored energy usage.

• Reliable & Quiet: Safe operation with ultra-quiet performance.

Key Specifications

• Nominal AC Output Power: 5 kW

• Battery Capacity Range: 5 – 20 kWh (stackable modules, 100 % DoD)

• Max. PV Input Power: 10,000 Wp

• MPPT / Max. String per MPPT: 2 / 1

• Rated Output Voltage: 230 V

• Ingress Protection: IP65

• Communication: Ethernet / Wi-Fi

• Warranty: 10 years

Typical Applications

• Residential Rooftops: Store excess solar generation for peak load or evening use.

• Backup Power Support: Maintain power for essential circuits during grid outages.

• Tariff Optimization: Shift solar generation to high-tariff periods for cost savings.

• Smart Home Integration: Monitor and control energy use in real time via network connectivity.

FAQ – Common Questions

Q1: What is the scalable storage range of SMILE-M5?
It supports 5 – 20 kWh of battery capacity using stackable modules.

Q2: What safety features are included?
The system includes built-in aerosol fire suppression and multiple protections for safe operation.

Q3: Can it integrate with solar PV systems?
Yes — it supports up to 10 kWp PV input and 200 % PV oversizing.

Q4: How is monitoring performed?
You can monitor performance remotely via Ethernet or Wi-Fi connectivity.

Q5: Is the SMILE-M5 suitable for outdoor install?
The IP65 rating allows installation in sheltered outdoor environments.
