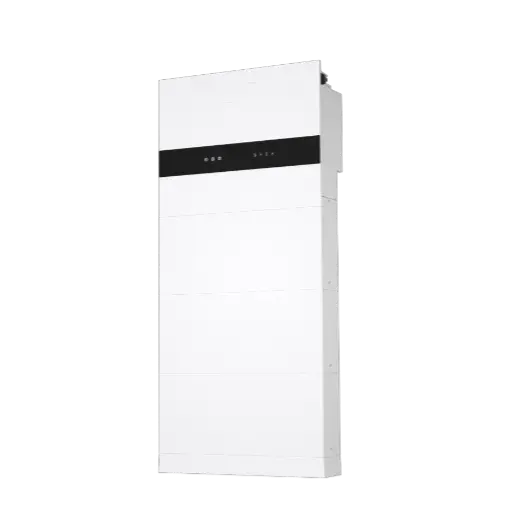

MP-X1-IES-A 2.5-8kW All-in-one Residential ESS-880

MP-X1-IES-A 2.5-8kW All-in-one Residential ESS-880

The China Moneypro X1‑IES‑A Series is an integrated residential energy storage solution that combines a powerful hybrid inverter, modular battery capability, and intelligent energy management into one all‑in‑one system. Designed for homes and small commercial applications like villas, grocery stores, and workshops, it maximizes solar self‑consumption, provides reliable backup power, and delivers high safety and performance for a modern clean‑energy lifestyle.

Category:

Share your love

All‑in‑One Smart Solar & Storage System

The China Moneypro X1‑IES‑A Series is an integrated residential energy storage solution that combines a powerful hybrid inverter, modular battery capability, and intelligent energy management into one all‑in‑one system. Designed for homes and small commercial applications like villas, grocery stores, and workshops, it maximizes solar self‑consumption, provides reliable backup power, and delivers high safety and performance for a modern clean‑energy lifestyle.

High Yield & Efficient Energy Harvest

Capture More Solar Energy

  • Allows up to 200 % PV oversizing — supports larger PV array relative to inverter capacity for increased solar generation capture.

  • Supports up to 200 % PV input power, enabling strong energy inflow from solar panels.

  • Max. 20 A DC input per MPPT ensures efficient tracking of PV power.

  • Lower startup voltage improves UV performance and increases usable generation hours.

Benefits:

  • Enhanced daily PV generation and self‑consumption.

  • Works well even with high‑power solar modules and varied rooftop orientations.

Smart Energy Management

AI‑Driven & Cost‑Effective

  • Built‑in AI energy management forecasts solar generation and household consumption to better schedule charging and discharging.

  • Supports 7×24 Time‑of‑Use (ToU) optimization, helping reduce electricity costs by charging when rates are low and discharging when rates are high.

  • Smart schedule, intelligent load management, and smart scenes enable adaptable energy use.

Advantages:

  • Reduces grid electricity draw and overall utility bills.

  • Makes the most of solar energy with smart control strategies.

Fast & Flexible Installation

Ready in Minutes

  • Modular plug‑and‑play design significantly simplifies installation and reduces setup time.

  • Optional wireless meter provides flexible system monitoring without complex wiring.

Advantages:

  • Fast installation by a single technician or household installer.

  • Reduces labor and commissioning costs.

Reliable Backup & Power Continuity

Protected & Uninterrupted

  • UPS‑level fast switchover (< 10 ms) helps ensure uninterrupted power to essential loads during grid instability.

  • EPS overload support up to 200 % for 10 seconds handles brief heavy load demands (e.g., motor starts).

  • Max. 50 A charge/discharge current enables strong energy flow between PV, battery, and loads.

Benefits:

  • Improves home energy reliability in power interruptions.

  • Delivers robust performance under varied load conditions.

Safe, Durable & Climate‑Ready

Built for Real‑World Use

  • Optional AFCI (Arc Fault Circuit Interrupter) enhances electrical safety against arc‑fault fire risks.

  • Rapid shutdown option improves safety during maintenance or emergency scenarios.

  • Type II SPD on AC & DC sides guards against transient surges.

  • Cobalt‑free LiFePO₄ battery chemistry ensures stable and safer long‑life operation.

  • Integrated battery heating technology enables reliable performance in extreme cold environments (as low as –30 °C).

Advantages:

  • Enhanced safety and resistance to environmental stress.

  • Supports operation in diverse climates, including cold regions.

Why Choose China Moneypro X1‑IES‑A?

  • Flexible Power Options: Available in 3.7 kW, 5 kW, 6 kW, and 8 kW variants to suit different household sizes.

  • High Solar Yield: Up to 200 % PV oversizing and input support maximises solar utilization.

  • Smart Energy Control: AI & ToU scheduling for optimized costs and performance.

  • Reliable Backup: Fast switchover and EPS overload capacity for uninterrupted power.

  • Safe & Durable: AFCI, SPD protection, and advanced battery tech for long‑term reliability.

Key Specifications (Typical Models)

Model Nominal Output Power Max PV Input MPPT / DC Input Charge/Discharge Protection
X1‑IES‑3.7K‑A ~3.7 kW Up to ~7.4 kWp 2 MPPT / 20 A 50 A IP66
X1‑IES‑5K‑A ~5 kW Up to ~10 kWp 3 MPPT / 20 A 50 A IP66
X1‑IES‑6K‑A ~6 kW Up to ~12 kWp 3 MPPT / 20 A 50 A IP66
X1‑IES‑8K‑A ~8 kW Up to ~16 kWp 3 MPPT / 20 A 50 A IP66

Rated output and PV array sizing shown are typical values; actual values depend on model choice and installation conditions.

Typical Applications

  • Residential Rooftops: Maximise self‑consumption and solar utilization.

  • Backup Power Scenarios: Support essential loads during grid outages.

  • Peak Shaving & TOU Management: Charge at low tariff, discharge at high tariff.

  • Small Commercial Sites: Villas, shops, or light industrial loads.

FAQ – Common Questions

Q1: What power options are available?
The China Moneypro X1‑IES‑A Series comes in 3.7 kW, 5 kW, 6 kW, and 8 kW variants to suit different energy demands.

Q2: Can it handle large PV arrays?
Yes — it supports up to 200 % PV oversizing and input power to maximise energy capture.

Q3: How quickly does it switch to backup power?
It provides UPS‑level switchover in < 10 ms for seamless transition to backup.

Q4: Is the system suitable for cold climates?
Yes — with integrated battery heating technology, it can operate reliably even in extreme cold down to ~–30 °C.

Q5: What safety features does it include?
It includes AFCI (optional), rapid shutdown (optional), and Type II SPD protection for both AC and DC sides.

Specifications

Technical Data
X3-IES-4K
X3-IES-5K
X3-IES-6K
X3-IES-8K
X3-IES-10K
X3-IES-12K
X3-IES-15K
System Overview
Rated output power
4 kW
5 kW
6 kW
8 kW
10 kW
12 kW
15 kW
Number of batteries
2
3
4
5
6
5
6
Nominal capacity
10.2 kWh
15.3 kWh
20.4 kWh
25.6 kWh
30.7 kWh
25.6 kWh
30.7 kWh
Usable energy
9.2 kWh
13.8 kWh
18.4 kWh
23.0 kWh
27.6 kWh
23.0 kWh
27.6 kWh
Max. charge / discharge power
10.2 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
15.0 kW
Degree of protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating temperature range
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
-30 ~ 53°C
Allowable relative humidity range
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
4 ~ 100% (condensing)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Net weight
147.2 kg
194.2 kg
241.2 kg
147.2 / 146.2 kg
194.2 / 146.2 kg
147.2 / 146.2 kg
194.2 / 146.2 kg
Dimension (W × H × D)
730 × 1281 × 209.5 mm
730 × 1599 × 209.5 mm
730 × 1917 × 209.5 mm
730 × 1281 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1599 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1281 × 209.5 mm / 730 × 1120.5 × 150 mm
730 × 1599 × 209.5 mm / 730 × 1120.5 × 150 mm
Display
LCD
LCD
LCD
LCD
LCD
LCD
LCD
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Communication
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
RS485, Pocket-X, USB, CAN, DO, DI
PV Input
Max. recommended PV array power
8 kWp
10 kWp
12 kWp
16 kWp
20 kWp
24 kWp
30 kWp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
Nominal PV input voltage
600 V
600 V
600 V
600 V
600 V
600 V
600 V
Operating voltage range
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
MPPT voltage range
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
Start-up voltage
140 V
140 V
140 V
140 V
140 V
140 V
140 V
No. of MPP trackers / Strings per MPP tracker
2 / (1/1)
2 / (1/1)
2 / (1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
Max. input current per MPPT (MPPT1/2/3)
20 A / 20 A
20 A / 20 A
20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
Max. input short circuit current per MPPT
25 A / 25 A
25 A / 25 A
25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
AC Input & Output (On-Grid)
Rated output power
4 kW
5 kW
6 kW
8 kW
10 kW
12 kW
15 kW
Rated output current
5.8 A
7.3 A
8.7 A
11.6 A
14.5 A
17.4 A
21.8 A
Max. output apparent power
4000 VA
5500 VA
6600 VA
8800 VA
10000 VA
13200 VA
16500 VA
Max. output continuous current
6.1 A
8.4 A
10 A
13.4 A
15.2 A
20.0 A
25.0 A
Nominal AC voltage
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
Max. input apparent power
10 kVA
10 kVA
12 kVA
16 kVA
20 kVA
20 kVA
20 kVA
Max. AC input current
16.1 A
16.1 A
19.3 A
25.8 A
32.0 A
32.0 A
32.0 A
Nominal AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
<3%
Battery
Battery voltage range
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
Communication interfaces
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
CAN / RS485
BMS module
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
Battery module
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
TP-HS50E
Composition
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
Battery type
LFP
LFP
LFP
LFP
LFP
LFP
LFP
Nominal capacity / Nominal capacity
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
5.1 kWh / 50 Ah
Usable energy
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
4.6 kWh
Standard power
3 kW
3 kW
3 kW
3 kW
3 kW
3 kW
3 kW
Max power
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
5.1 kW
Max. charge/discharge current
50 A
50 A
50 A
50 A
50 A
50 A
50 A
Cycle life
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
>6000 cycles
Warranty
10 years
10 years
10 years
10 years
10 years
10 years
10 years
Safety
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
CE, RCM, TUV (IEC62619), ROHS, REACH
TBMS-MCS0800E dimensions (W × H × D) / Weight
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
730 × 165 × 150 mm / 9.3 kg
TP-HS50E dimensions (W × H × D) / Weight
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
730 × 318 × 150 mm / 47 kg
Base dimensions (W × H × D) / Weight
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
730 × 75 × 150 mm / 3.9 kg
Series box dimensions (W × H × D) / Weight
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
167 × 91.5 × 121 mm / 1.3 kg
EPS (Off-Grid) Output (With Battery)
Rated EPS output voltage, frequency
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
Rated EPS output power
4 kVA
5 kVA
6 kVA
8 kVA
10 kVA
12 kVA
15 kVA
Peak EPS output power
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
Switchover time
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
Efficiency
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
Environment Limit
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating ambient temperature range
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
-35 ~ 60°C
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
Overvoltage Category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
General
Dimensions (W × H × D)
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
Net weight
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Communication interfaces
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
Power consumption (night)
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
< 40 W for hot standby, < 5 W for cold standby
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
AC auxiliary power supply (APS)
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Protection
Protections
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
Optional
Optional

Related products
