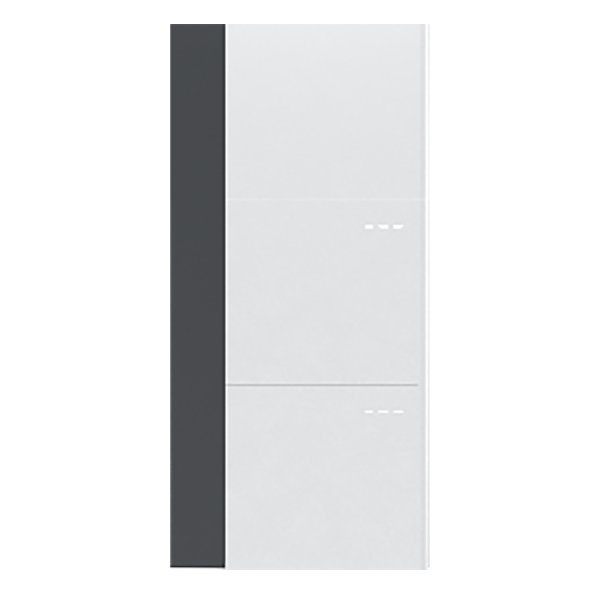

MP-SMILE-G3-T4~10 Residential Energy Storage System-7101

Smart, Scalable & Reliable Home Storage

The China Moneypro SMILE-G3-T4~10 Series is a three-phase hybrid energy storage system engineered for residential applications with varying power needs. It integrates a high-voltage hybrid inverter with modular battery storage to deliver optimized solar self-consumption, backup power capability, and flexible system expansion. Designed for homes requiring strong power delivery and grid interaction, this series supports PV input oversizing and enhanced backup performance in unstable grid conditions.

Modular & Expandable Design

Tailored to Different Energy Demands

• Available in 4 kW, 5 kW, 6 kW, 8 kW, and 10 kW hybrid power variants.

• Storage capacity is modular and flexible, supporting from ~3.8 kWh up to ~45.6 kWh (with higher expansion scenarios reported up to ~111.6 kWh).

• Lego-style modular battery packs (e.g., 3.8 kWh or 8.2 kWh options) simplify installation and scaling.

Benefits:

• Address diverse household energy needs with scalable storage.

• Start with a smaller capacity and expand later as energy use grows.

• Modular design reduces installation complexity and improves system adaptability.

High Performance & Efficient Cycling

Maximise Solar Utilisation

• Three MPPTs allow flexible PV input configurations and higher solar capture — supports up to 200 % PV oversizing to enhance energy generation.

• Depth of Discharge (DoD) ~95 % from Li-ion phosphate battery chemistry ensures high usable energy.

• Compatible with 182 mm panel inputs, enabling a wide range of PV setups.

Advantages:

• Greater PV energy capture even in multi-orientation rooftops.

• Efficient daily cycling with minimal capacity loss over time.

• Higher usable capacity helps reduce grid dependency.

Reliable Backup & Grid Support

Continuous Power & Dynamic Response

• Enhanced backup overload capability handles up to 150 % overload for ~30 s, ensuring stability under unpredictable grid conditions.

• The hybrid inverter offers grid-forming and support functions for maintenance of essential loads during outages.

• Intelligent system design allows dynamic tariff response and improved energy dispatch for household cost savings.

Benefits:

• Keeps vital appliances powered during grid interruptions.

• Improves energy usage efficiency by adapting to time-of-use tariffs.

Safe, Durable & Smart Integration

Engineered for Long-Term Performance

• LFP (Lithium Iron Phosphate) battery cells offer high stability, long cycle life, and inherent safety.

• Robust protection with IP65 ratings — suitable for indoor or sheltered outdoor installations in many regions.

• Designed to integrate with smart home systems via Ethernet / Wi-Fi / Modbus / API interfaces (depending on configuration).

• Multi-layer safety protection and comprehensive battery management system ensure secure daily operation.

Advantages:

• High reliability with protective designs against environmental stress.

• Smart connectivity simplifies monitoring and system control.

Why Choose China Moneypro SMILE-G3-T4~10?

• Flexible Power Range: Offers 4 kW to 10 kW hybrid output to meet diverse residential needs.

• Scalable Capacity: Modular storage expands from ~3.8 kWh up to ~45.6 kWh or more with additional modules.

• High Solar Harvest: 3 MPPTs and up to 200 % PV input support maximise energy capture.

• Reliable Backup: Enhanced overload and grid dynamic support ensure power continuity.

• Smart & Safe: LFP battery chemistry and smart interfaces for real-time monitoring and control.

Key Specifications (Representative Range)

• Nominal AC Output Power: 4 / 5 / 6 / 8 / 10 kW

• Usable Storage Capacity: ~3.8 – 45.6 kWh (expandable with modular packs)

• Battery Chemistry: LFP (LiFePO₄)

• Max. PV Input: Up to 200 % oversizing via 3 MPPTs

• Depth of Discharge (DoD): ~95 %

• Protection Class: IP65 (varies by configuration)

• Warranty: ~5 years product + ~10 years battery performance

• Communication: Ethernet / Wi-Fi / Modbus / API (depending on setup)

Typical Applications

• Residential Rooftops: Store and utilise excess PV generation.

• Whole-Home Backup: Maintain essential power during grid outages.

• Energy Cost Optimisation: React to tariff signals for optimal energy use.

• Hybrid PV + Storage Systems: Integrated solution for new installs or retrofits.

FAQ – Common Questions

Q1: What power outputs are available in SMILE-G3-T4~10?
Models range from 4 kW up to 10 kW to suit different residential system sizes.

Q2: How scalable is the storage capacity?
The system supports modular expansion, typically from ~3.8 kWh up to ~45.6 kWh with multiple battery modules.

Q3: What battery chemistry does it use?
It uses LFP (Lithium Iron Phosphate) cells for safety and long-term performance.

Q4: Does it support larger PV inputs?
Yes — it supports up to 200 % PV oversizing via three MPPT inputs to capture more solar energy.

Q5: Is the system suitable for outdoor installation?
With IP65 protection, many configurations are suitable for sheltered outdoor or indoor placements.
