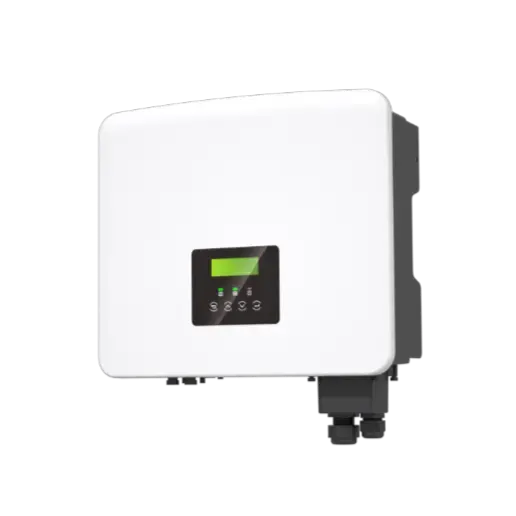

MP-X1-Hybrid G4-252

MP-X1-Hybrid G4-252

The China Moneypro X1‑Hybrid G4 is a single‑phase hybrid solar inverter designed for modern residential solar+storage systems. It integrates high solar oversizing support, intelligent energy management, flexible battery compatibility, and both on‑grid and off‑grid capabilities, delivering reliable and optimized energy use for homes and small commercial installations.

Category:

Share your love

Smart, Flexible & High‑Efficiency Home Energy Solution

The China Moneypro X1‑Hybrid G4 is a single‑phase hybrid solar inverter designed for modern residential solar+storage systems. It integrates high solar oversizing support, intelligent energy management, flexible battery compatibility, and both on‑grid and off‑grid capabilities, delivering reliable and optimized energy use for homes and small commercial installations.

High Performance & Maximum Solar Utilization

Efficient Energy Conversion

  • Supports up to 200 % PV oversizing to capture more solar energy.

  • Up to 110 % AC overload output for handling surge loads.

  • Charging and discharging efficiency up to ~97 % for optimized energy flow.

  • Low start‑up voltage extends operation during low‑sun conditions.

Benefits:

  • Increased solar harvest and better self‑consumption.

  • Reliable inverter performance under variable PV conditions.

Reliable Backup & Quick Switching

Keep Power Flowing

  • UPS‑level switchover < 10 ms for fast backup transition.

  • EPS output up to ~150 % for 10 s supports high startup loads.

  • IP65 protection rating protects the inverter in various environments.

  • Integrated Type II SPD on both AC and DC sides for surge protection.

Advantages:

  • Minimal interruption during grid outages.

  • Enhanced safety and durability for long‑term operation.

Intelligent Load & Energy Management

Smarter Energy Control

  • VPP‑ready for ancillary services in energy markets.

  • Global MPP scan optimizes energy harvest.

  • Smart load management for heat pumps, EV chargers, and other devices.

  • Intelligent Time‑of‑Use (ToU) energy scheduling.

  • CT compatibility enables rapid load response (~0.3 s).

  • Parallel operation (on‑grid and off‑grid) up to ~15 kW for expanded systems.

Benefits:

  • Flexible energy flows aligned to consumption patterns.

  • Greater autonomy and smarter dispatch of solar & storage resources.

Flexible & Adaptive Design

Compatible with Diverse Storage Options

  • Compatible with lithium‑ion and lead‑acid batteries for broad deployment.

  • Supports operation both on‑grid and off‑grid, enabling energy use even during outages.

  • Compact form factor makes it suitable for residential installations.

Advantages:

  • Choose battery types per site needs.

  • Expand system capacity through inverter parallelization.

Why Choose China Moneypro X1‑Hybrid G4?

  • High Solar Capture: Up to 200 % PV oversizing support.

  • Efficient Storage Use: ~97 % charging/discharging efficiency.

  • Fast Backup: UPS‑level transition with high EPS output.

  • Smart Energy Management: VPP readiness and intelligent load control.

  • Flexible Compatibility: Works with common battery chemistries and both grid/off‑grid modes.

Typical Applications

  • Residential Solar+Storage Systems — optimized home power management.

  • Weak‑Grid or Backup Scenarios — seamless switchover when grid fails.

  • EV Charging & Smart Loads — integrate solar with home EV chargers and heat pumps.

  • Expandable Multi‑Unit Systems — parallel operation up to ~15 kW outputs.

FAQ – Common Questions

Q1: What power ratings does the X1‑Hybrid G4 support?
The X1‑Hybrid G4 is available in 3.0 kW, 3.7 kW, 5.0 kW, 6.0 kW, and 7.5 kW variants.

Q2: Can this inverter work with batteries?
Yes — the system is compatible with both lithium‑ion and lead‑acid batteries.

Q3: Does it support off‑grid use?
Yes — it can operate in off‑grid mode and supports parallel configurations up to ~15 kW.

Q4: How quick is the backup switchover?
The X1‑Hybrid G4 provides fast < 10 ms switchover similar to UPS performance.

Q5: What is the protection rating?
It carries an IP65 protection rating, suitable for outdoor or sheltered installations.

Specifications

Parameter X1‑HYBRID‑3.0‑D X1‑HYBRID‑3.7‑D X1‑HYBRID‑5.0‑D X1‑HYBRID‑6.0‑D X1‑HYBRID‑7.5‑D
PV INPUT
Max. recommended PV array power 6.0 kWp 7.4 kWp 10.0 kWp 12.0 kWp 15.0 kWp
Max. PV input voltage¹ 600 V 600 V 600 V 600 V 600 V
Rated PV input voltage 360 V 360 V 360 V 360 V 360 V
Operation voltage range 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V
MPPT voltage range 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V 70 ~ 550 V
Start‑up voltage 90 V 90 V 90 V 90 V 90 V
No. of MPP trackers / strings per MPPT tracker 2 (1/1) 2 (1/1) 2 (1/1) 2 (1/1) 2 (1/1)
Max. input current per MPPT 16 A / 16 A 16 A / 16 A 16 A / 16 A 16 A / 16 A 16 A / 16 A
Max. input short circuit current per MPPT 20 A / 20 A 20 A / 20 A 20 A / 20 A 20 A / 20 A 20 A / 20 A
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 3000 W 3680 W 5000 W (AU 4999 W) 6000 W 7500 W
Max. output apparent power 3300 VA 3680 VA 5500 VA (4999 VA AU) 6600 VA 7500 VA
Max. output continuous current 14.4 A 16.0 A 23.9 A (21.7 A AU) 28.6 A 32.6 A
Rated AC voltage 1 / N / PE, 220 / 230 / 240 V 1 / N / PE, 220 / 230 / 240 V 1 / N / PE, 220 / 230 / 240 V 1 / N / PE, 220 / 230 / 240 V 1 / N / PE, 220 / 230 / 240 V
Nominal AC frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
THDi (rated power) < 2% < 2% < 2% < 2% < 2%
BATTERY
Battery type Lithium Lithium Lithium Lithium Lithium
Battery voltage range 80 ~ 480 V 80 ~ 480 V 80 ~ 480 V 80 ~ 480 V 80 ~ 480 V
Max. charge / discharge current 30 A 30 A 30 A 30 A 30 A
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency 230 V, 50 Hz / 60 Hz 230 V, 50 Hz / 60 Hz 230 V, 50 Hz / 60 Hz 230 V, 50 Hz / 60 Hz 230 V, 50 Hz / 60 Hz
Rated EPS output power 3000 VA 3680 VA 5000 VA 6000 VA 7500 VA
Peak EPS output power 6000 VA, 10 s 6000 VA, 10 s 9000 VA, 10 s 9000 VA, 10 s 11250 VA, 10 s
Switchover time < 10 ms < 10 ms < 10 ms < 10 ms < 10 ms
EFFICIENCY
Max. efficiency 97.6% 97.6% 97.6% 97.6% 97.6%
European efficiency 97.0% 97.0% 97.0% 97.0% 97.0%
ENVIRONMENT LIMIT
Ingress protection IP65 IP65 IP65 IP65 IP65
Operating temperature range -35 ~ +60°C (>45°C derating) -35 ~ +60°C (>45°C derating) -35 ~ +60°C (>45°C derating) -35 ~ +60°C (>45°C derating) -35 ~ +60°C (>45°C derating)
Max. operation altitude 3000 m 3000 m 3000 m 3000 m 3000 m
Relative humidity 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing)
GENERAL
Dimensions (W × H × D) 482 × 417 × 181 mm 482 × 417 × 181 mm 482 × 417 × 181 mm 482 × 417 × 181 mm 482 × 417 × 181 mm
Net weight 24 kg 24 kg 24 kg 24 kg 25 kg
Cooling concept Smart air cooling Smart air cooling Smart air cooling Smart air cooling Smart air cooling
Communication interfaces CT / Meter (optional), External control RS485, Dongle interface, DRM, NTC (optional) Same Same Same Same
Certifications VDE‑AR‑N 4105, G99, G98, AS/NZS4777, EN50549, CEI 0‑21, C10/11 Same Same Same Same
