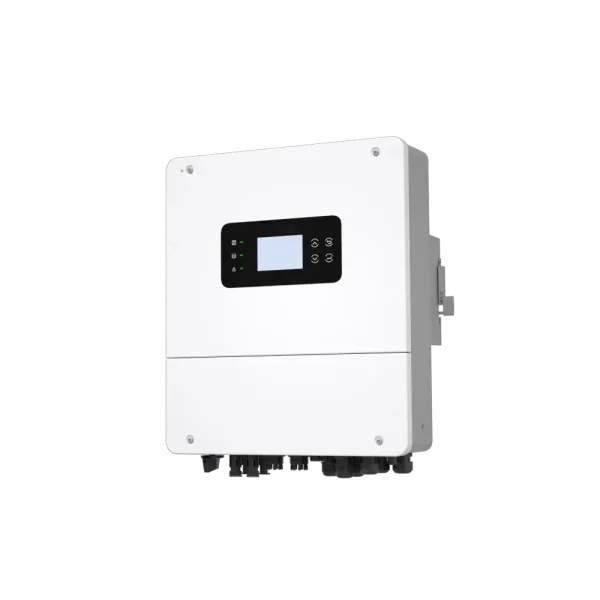

MP-X1-HYB LV-6985

MP-X1-HYB LV-6985

The China Moneypro X1‑HYB LV Series is a versatile hybrid solar inverter designed to support both on‑grid and off‑grid applications for residential energy systems. With high PV oversizing capacity, smart energy management, fast backup switchover, and scalable parallel support, it delivers reliable performance and enhanced solar utilization for modern homes.

Category:

Share your love

Smart & Flexible Hybrid Inverter for Home Energy

The China Moneypro X1‑HYB LV Series is a versatile hybrid solar inverter designed to support both on‑grid and off‑grid applications for residential energy systems. With high PV oversizing capacity, smart energy management, fast backup switchover, and scalable parallel support, it delivers reliable performance and enhanced solar utilization for modern homes.

High Performance & Solar Harvest

Maximize Solar Generation

  • Supports 200 % PV oversizing for capturing more energy from large PV arrays.

  • Handles high DC input current up to 16 A per MPPT — compatible with high‑power solar panels.

  • Up to 110 % AC output capability for flexible energy delivery.

Benefits:

  • Higher daily solar yields.

  • Better utilization of PV input for diverse panel configurations.

Reliable Backup & Fast Response

Power When You Need It

  • UPS‑level switchover time < 4 ms ensures seamless backup when grid power is lost.

  • 200 % peak EPS power for 10 s supports high‑demand loads during outages.

  • Scalable solution with support for up to 3 units in parallel — for increased capacity.

Advantages:

  • Stable power delivery under grid instability.

  • Scalable capacity for larger residential systems.

Intelligent Energy Management

Smart Controls & Monitoring

  • Built‑in intelligent load management helps prioritize critical loads.

  • Global MPP tracking improves energy harvest from solar arrays.

  • User‑friendly interface makes system interaction simple and intuitive.

Benefits:

  • Optimized energy distribution across loads.

  • Enhanced daily performance insights.

Durable & Safe Design

Built for Reliable Operation

  • IP65 protection rating — robust for outdoor and indoor installations.

  • Detection of battery terminal temperature enhances operational safety.

  • Integrated Type II SPD on both AC & DC sides, optional AFCI protection available.

Advantages:

  • High system protection for real‑world environments.

  • Enhanced long‑term reliability and safety.

Why Choose China Moneypro X1‑HYB LV Series?

  • High Solar Compatibility: 200 % PV oversizing and up to 110 % AC output capacity.

  • Smart Backup: Fast UPS‑level switchover and powerful EPS output for backup reliability.

  • Scalable: Parallel support up to 3 units for increased capacity.

  • Intelligent Management: Smart load control and MPP tracking for better performance.

  • Robust Protection: IP65 rating and integrated protective features for safety.

Typical Applications

  • Residential Solar Systems: Hybrid PV + storage installations.

  • Backup Power Support: Critical load protection during grid outages.

  • Weak‑Grid or Microgrid Scenarios: Reliable energy solution for unstable grids.

  • Scalable Hybrid Installations: Parallel inverter setups for increased power needs.

FAQ – Common Questions

Q1: What power ranges are available in the X1‑HYB LV Series?
China Moneypro X1‑HYB LV supports multiple power ratings including 3.0 kW, 3.7 kW, 4.0 kW, 4.6 kW, 5.0 kW, and 6.0 kW.

Q2: How does the inverter handle solar oversizing?
It supports up to 200 % PV oversizing, allowing higher PV array capacity relative to inverter rating.

Q3: Is fast backup switching supported?
Yes — the system delivers UPS‑level switchover in < 4 ms for seamless power continuity.

Q4: Can multiple units be combined?
Yes — it supports up to 3 units in parallel for scalable energy solutions.

Q5: What protection features are included?
Features include IP65 protection, battery terminal temperature detection, integrated SPD, and optional AFCI safety enhancements.

Specifications

Parameter X1‑HYB‑3.0‑LV X1‑HYB‑3.7‑LV X1‑HYB‑4.0‑LV X1‑HYB‑5.0‑LV X1‑HYB‑6.0‑LV
PV INPUT
Max. recommended PV array power 6000 Wp 7360 Wp 8000 Wp 10000 Wp 12000 Wp
Max. PV input voltage¹ 550 V 550 V 550 V 550 V 550 V
Rated PV input voltage 360 V 360 V 360 V 360 V 360 V
Operating voltage range 80 ~ 520 V 80 ~ 520 V 80 ~ 520 V 80 ~ 520 V 80 ~ 520 V
Start‑up voltage 110 V 110 V 110 V 110 V 110 V
No. of MPP trackers / strings per MPPT 2 / (1 / 1) 2 / (1 / 1) 2 / (1 / 1) 2 / (1 / 1) 2 / (1 / 1)
Max. input current per MPPT 16 A / 16 A 20 A / 20 A 20 A / 20 A 20 A / 20 A 20 A / 20 A
Max. input short circuit current per MPPT 75 A / 75 A 75 A / 75 A 75 A / 75 A 75 A / 75 A 75 A / 75 A
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 3000 W 3680 W 4000 W 5000 W 6000 W
Rated output current 13.1 A @ 230 V 16.0 A @ 230 V 17.4 A @ 230 V 21.8 A @ 230 V 26.1 A @ 230 V
Max. output apparent power 3300 VA 3680 VA 4000 VA 5000 VA 6000 VA
Max. output continuous current 14.4 A @ 230 V 16.0 A @ 230 V 17.4 A @ 230 V 21.8 A @ 230 V 26.1 A @ 230 V
Rated AC voltage 220 / 230 / 240 V 220 / 230 / 240 V 220 / 230 / 240 V 220 / 230 / 240 V 220 / 230 / 240 V
Max. AC input apparent power 6000 VA 7360 VA 8000 VA 10000 VA 12000 VA
Max. AC input current 40 A 40 A 40 A 40 A 40 A
Max. continuous AC passthrough (grid to load) 3000 VA 3680 VA 4000 VA 5000 VA 6000 VA
Rated AC frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
AC frequency range¹ 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz 50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading) ~ 1 ~ 1 ~ 1 ~ 1
THDi (rated power) < 3% < 3% < 3% < 3% < 3%
BATTERY
Battery type Lithium / Lead‑acid Lithium / Lead‑acid Lithium / Lead‑acid Lithium / Lead‑acid Lithium / Lead‑acid
Battery voltage range 40 ~ 60 V 40 ~ 60 V 40 ~ 60 V 40 ~ 60 V 40 ~ 60 V
Max. charge / discharge current 120 A 120 A 120 A 120 A 120 A
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency 230 V, 50 / 60 Hz 230 V, 50 / 60 Hz 230 V, 50 / 60 Hz 230 V, 50 / 60 Hz 230 V, 50 / 60 Hz
Rated EPS output power Same as rated output power Same as rated output power Same as rated output power Same as rated output power Same as rated output power
Peak EPS output power 2 × rated power, 10s 2 × rated power, 10s 2 × rated power, 10s 2 × rated power, 10s 2 × rated power, 10s
Switchover time < 4 ms < 4 ms < 4 ms < 4 ms < 4 ms
EFFICIENCY
Max. efficiency 97.6% 97.6% 97.6% 97.6% 97.6%
European efficiency 97.0% 97.0% 97.0% 97.0% 97.0%
GENERAL
Ingress protection IP65 IP65 IP65 IP65 IP65
Operating temperature range -25 ~ 60 °C (> 45 °C derating) -25 ~ 60 °C -25 ~ 60 °C -25 ~ 60 °C -25 ~ 60 °C
Max. operating altitude 3000 m 3000 m 3000 m 3000 m 3000 m
Relative humidity 4 ~ 100% RH (condensing) 4 ~ 100% RH 4 ~ 100% RH 4 ~ 100% RH 4 ~ 100% RH
Overvoltage category Mains: III, Battery: II, PV: II Mains: III, Battery: II, PV: II Mains: III, Battery: II, PV: II Mains: III, Battery: II, PV: II Mains: III, Battery: II, PV: II
Dimensions (W × H × D) 397 × 490 × 201 mm 397 × 490 × 201 mm 397 × 490 × 201 mm 397 × 490 × 201 mm 397 × 490 × 201 mm
Net weight 17.3 kg 17.3 kg 17.3 kg 17.3 kg 17.3 kg
Cooling concept Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling
Communication interfaces RS485, CAN, USB, DI/DO RS485, CAN, USB, DI/DO RS485, CAN, USB, DI/DO RS485, CAN, USB, DI/DO RS485, CAN, USB, DI/DO
Display LCD LCD LCD LCD LCD
Topology Non‑isolated for PV side / HF for battery side Same Same Same Same
Certifications NRS 097‑2‑1, IEC 61727, IEC 62116, PEA, MEA, BIS, EN IEC 62109‑1/‑2 Same Same Same Same
PROTECTIONS Active anti‑islanding Over/under voltage protection DC isolation protection Reverse polarity protection Residual current detection
