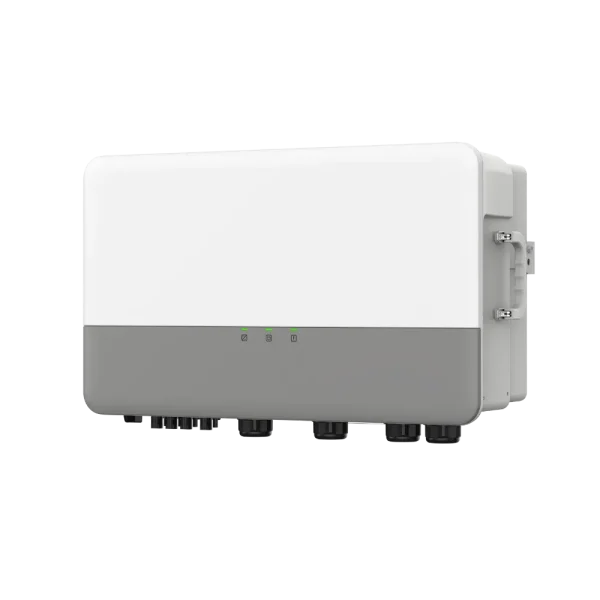

MP-X1-SPT 10kW / 12kW-512

MP-X1-SPT 10kW / 12kW-512

The China Moneypro X1‑SPT 10 kW / 12 kW is a powerful split‑phase hybrid inverter designed to deliver reliable solar power conversion, whole‑home backup capability, and flexible battery integration. With high efficiency, rapid backup switching, dual battery ports, and strong safety protections, it is optimized for residential and light commercial solar + storage systems with split‑phase output support.

Category:

Share your love

Robust, High‑Performance Solar Hybrid Inverter for Whole‑Home Use

The China Moneypro X1‑SPT 10 kW / 12 kW is a powerful split‑phase hybrid inverter designed to deliver reliable solar power conversion, whole‑home backup capability, and flexible battery integration. With high efficiency, rapid backup switching, dual battery ports, and strong safety protections, it is optimized for residential and light commercial solar + storage systems with split‑phase output support.

High Solar Performance & Energy Utilization

Efficient Energy Harvest

  • Supports 3 MPPTs, maximizing energy capture from multiple solar orientations and larger PV arrays.

  • Low startup voltage ~45 V enables early morning and low‑irradiance energy harvesting.

  • High recommended PV array capacities — 15 kWp for 10 kW and 18 kWp for 12 kW — for strong solar generation potential.

Benefits:

  • More daily solar yield and increased self‑consumption.

  • Enhanced performance across diverse roof layouts.

Reliable Backup & Seamless Power Continuity

Whole‑Home Backup

  • Split‑phase 120 V/240 V AC output supports typical residential load profiles.

  • Seamless EPS (Emergency Power Supply) switching in < 10 ms ensures continuous power during outages.

  • Dual battery ports support two battery strings for expanded storage capacity.

  • 200 % EPS peak power delivers strong surge capability for appliances at startup.

Advantages:

  • Reliable backup for critical loads and whole‑home operation.

  • Flexible battery integration and high surge power support.

Intelligent & Flexible System Integration

Smart Solar + Storage Control

  • Works with a wide range of high‑voltage LFP batteries (100–480 V), enabling system scalability.

  • Designed to integrate with generators and external energy sources for hybrid operation.

  • Split‑phase EPS output ideal for markets requiring balanced dual‑voltage support.

Benefits:

  • Greater system design flexibility.

  • Support for diverse backup and hybrid power scenarios.

Durable & Safe Design

Built for Outdoor & Harsh Conditions

  • NEMA 4X / IP66 weatherproof enclosure protects the inverter for sheltered outdoor installation.

  • Integrated Type II SPD (Surge Protective Device) guards against transient overvoltage events.

  • Intelligent AFCI protection enhances electrical safety and reduces fault risk.

Advantages:

  • Robust weather protection for long‑term outdoor use.

  • Enhanced safety layers for dependable home operation.

Why Choose China Moneypro X1‑SPT 10 kW / 12 kW?

  • 3 MPPT Design: Efficient solar energy harvesting across multiple array orientations.

  • Whole‑Home Backup: Split‑phase output plus rapid EPS switching.

  • High Solar Integration: Large PV array support for strong generation.

  • Battery Flexibility: Dual battery ports and wide voltage range support.

  • Safety & Durability: Weatherproof enclosure, integrated SPD, and AFCI.

Typical Applications

  • Residential Rooftop Solar + Storage: Whole‑home power with backup capability.

  • Backup Power Systems: Reliable EPS support for loads during grid outages.

  • Hybrid Solar + Generator Systems: Flexible integration with external power sources.

  • High‑Capacity Solar Projects: Systems requiring large PV array support.

FAQ – Common Questions

Q1: What output power options are available?
The China Moneypro X1‑SPT is offered in 10 kW and 12 kW rated output variants.

Q2: Can this inverter support whole‑home backup?
Yes — its split‑phase 120 V/240 V EPS output and < 10 ms switchover provide reliable whole‑home backup capability.

Q3: How many MPPTs does the system have?
It features 3 MPPTs for flexible and efficient PV array connection.

Q4: What battery configurations are supported?
The inverter supports LFP batteries with a 100 V–480 V voltage range and includes dual battery ports for expanded storage design.

Q5: Is the inverter suitable for outdoor installation?
Yes — with a NEMA 4X / IP66 weatherproof enclosure, it’s designed for sheltered outdoor environments.

Specifications

Parameter X1‑SPT‑10K X1‑SPT‑12K
PV INPUT
Max. recommended PV array power 15,000 Wp 18,000 Wp
Max. PV input voltage① 1500 V 1500 V
Rated PV input voltage 390 V 390 V
MPPT voltage range② 35 ~ 490 V d.c. 35 ~ 490 V d.c.
Full load MPPT voltage range — —
Start‑up voltage 45 V d.c. 45 V d.c.
No. of MPP trackers / strings per MPPT 3 (1 / 1 / 1) 3 (1 / 1 / 1)
Max. input current per MPPT 18 A d.c. 22 A d.c.
Max. input short circuit current per MPPT 22 A d.c. —
BATTERY
Battery type LFP LFP
No. of battery ports 2 2
Battery voltage range 100 ~ 480 V d.c. 100 ~ 480 V d.c.
Max. charge / discharge power — —
Max. charge / discharge current 60 (30×2) A d.c. 60 (30×2) A d.c.
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS power — —
Peak EPS output power 2×Rated power, 10 s / 1.67×Rated power, 10 s 2×Rated power, 10 s / 1.67×Rated power, 10 s
Rated EPS output voltage, frequency 120 / 240 a.c. V; 127 / 220 a.c. V, 50 / 60 Hz 120 / 240 a.c. V; 127 / 220 a.c. V, 50 / 60 Hz
EPS rated current 140 A 140 A
Switchover time③ < 10 ms < 10 ms
LRA current 140 A 140 A
Total harmonic distortion (THDv, linear load) < 3% < 3%
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 10,000 W 12,000 W
Rated output current 41.7 A @ 120 V / 39.4 A @ 127 V 50 A
Max. output apparent power 10,000 VA 12,000 VA
Max. output continuous current 41.7 A @ 120 V / 39.4 A @ 127 V 51 A
Rated AC voltage 2L/ N / PE, 120 / 240 a.c. V; 127 / 220 a.c. V 2L/ N / PE, 120 / 240 a.c. V; 127 / 220 a.c. V
Rated AC frequency 50 / 60 Hz 50 / 60 Hz
Adjustable power factor range ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading)
THDi (rated power) < 3% < 3%
EFFICIENCY
Max. efficiency 96.6% 96.6%
ENVIRONMENT LIMIT
Ingress protection NEMA 4X / IP66 NEMA 4X / IP66
Operating temperature range -35 ~ 60 °C (>45 °C derating) -35 ~ 60 °C (>45 °C derating)
Max. operating altitude 3000 m 3000 m
Relative humidity 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing)
Storage temperature -40 ~ 70 °C -40 ~ 70 °C
Noise emission (typical) < 45 dB < 45 dB
Overvoltage category DC: Ⅱ, AC: Ⅲ DC: Ⅱ, AC: Ⅲ
GENERAL
Dimensions (W × H × D) 718 × 415 × 210 mm 718 × 415 × 210 mm
Net weight 33 kg 33 kg
Cooling concept Smart air cooling Smart air cooling
Communication interfaces RS485, WIFI, DI, DO, CAN RS485, WIFI, DI, DO, CAN
Power consumption (night) < 10 W < 10 W
Topology Non‑isolated Non‑isolated
Certifications IEC‑62109, IEC‑61727, UL 1741, IEC63027, Inmetro IEC‑62109, IEC‑61727, UL 1741, IEC63027, Inmetro
PROTECTIONS
Surge protection DC: Type II, AC: Type II DC: Type II, AC: Type II
Arc‑fault circuit interrupter (AFCI) Yes Yes
