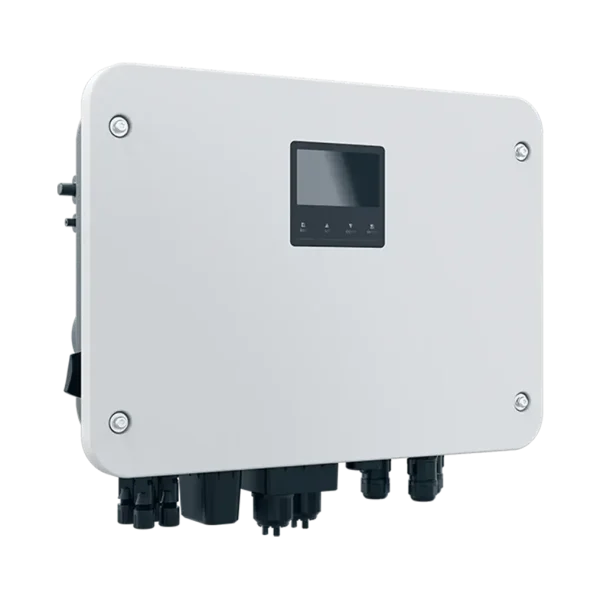

MP-5~10 kw MG5/6/8/10RL 1-Phase Hybrid Inverter-246

MP-5~10 kw MG5/6/8/10RL 1-Phase Hybrid Inverter-246

1-Phase Hybrid Inverter

The MG5/6/8/10RL hybrid inverter provides reliable, uninterrupted energy for residential rooftops. It combines smart solar conversion, battery integration, and robust backup capabilities, ensuring your home remains powered even during grid outages or fluctuations. This inverter is engineered to optimize solar energy generation while delivering stable, safe, and quiet power to your home.

Category:

Share your love

My Grid, Ever On

The MG5/6/8/10RL hybrid inverter provides reliable, uninterrupted energy for residential rooftops. It combines smart solar conversion, battery integration, and robust backup capabilities, ensuring your home remains powered even during grid outages or fluctuations. This inverter is engineered to optimize solar energy generation while delivering stable, safe, and quiet power to your home.

Robust Backup – Power You Can Rely On

Reliable Energy in Any Scenario

  • Seamless ≤4ms on/off-grid switch ensures uninterrupted energy during outages.

  • Maximum 200% surge output for 10s accommodates sudden power demands.

  • Continuous AC power support up to 40/63A for high-capacity appliances.

Benefits:

  • Maintains household energy stability in emergencies.

  • Supports high-demand appliances without system strain.

  • Ensures peace of mind during unpredictable power interruptions.

Robust Generation – Maximize Solar Output

High Power, High Efficiency

  • Supports high-power PV modules with 20A string input.

  • Maintains 45°C full-load operation for optimal performance in hot climates.

  • PID Zero Technology protects modules, maintaining efficiency and longevity.

Advantages:

  • Maximizes solar energy production under all conditions.

  • Compatible with mainstream PV modules for flexible installation.

  • Prevents performance degradation due to temperature or system stress.

Robust Safety – Engineered for Protection

Contain, Resist, and Safeguard

  • IP65/C5 rated for water, dust, and corrosion resistance.

  • Patented pressure relief structure ensures structural integrity during abnormal events.

  • AFCI technology detects and isolates arc faults quickly for safe operation.

Benefits:

  • Long-lasting reliability in harsh environmental conditions.

  • Protects both the system and your home from electrical hazards.

  • Meets international safety standards for residential hybrid inverters.

Robust Use – User-Friendly Operation

Intuitive Controls & Quiet Performance

  • 4.3-inch LCD touchscreen for instant monitoring and local control.

  • Fanless design, operating at just 35dB, ensures home-friendly quiet operation.

  • Supports remote monitoring and management via iSolarCloud.

Advantages:

  • Easy system setup, commissioning, and real-time monitoring.

  • Reduced maintenance effort through intuitive on-device and remote controls.

  • Enhances user experience with silent, reliable operation.

Why Choose MG5/6/8/10RL?

  • Reliable Backup: ≤4ms on/off-grid switch for seamless energy.

  • High Solar Generation: 200% surge output and PID zero tech for durable modules.

  • Safe & Durable: IP65/C5 rating, AFCI arc fault protection, structural safety.

  • User-Friendly: Touchscreen display and silent fanless operation.

  • Smart Monitoring: iSolarCloud for full remote control and management.

Key Specifications

  • Max. PV Input Voltage: 500 V

  • Rated AC Output Power: 5~10 kW

  • Rated AC Voltage: 240 V

  • Max. Efficiency: 97.6%

Typical Applications

  • Residential Rooftops: Supports full household loads, with hybrid battery backup.

  • On/Off-Grid Scenarios: Seamless transition during grid fluctuations or outages.

  • High Temperature Environments: Maintains full output in extreme heat.

  • Flexible PV System Integration: Compatible with mainstream PV modules and storage batteries.

FAQ – Common Questions

Q1: How quickly can the MG5/6/8/10RL switch to backup power?
Seamless ≤4ms transfer ensures uninterrupted home energy.

Q2: Can it handle high-power PV modules?
Yes, supports 20A string input, ready for mainstream high-power PV modules.

Q3: Is the system safe for outdoor installation?
Absolutely. Rated IP65/C5 and equipped with AFCI arc fault protection.

Q4: Can it integrate with home batteries?
Yes, fully compatible with hybrid battery storage systems for on/off-grid operation.

Q5: How can I monitor and manage the system?
Through iSolarCloud, enabling remote real-time monitoring, diagnostics, and control from a smartphone.

Specifications

Type designationMG5RL Input (DC) MG6RL
Recommended max. PV input power 10000 Wp12000 Wp
Max. usable PV input power 8000 Wp9600 Wp
Max. PV input voltage 500 V
Min. PV input voltage / Startup input voltage 40 V / 50 V
Rated PV input voltage 360 V
MPPT operating voltage range** 40 V – 425 V
No. of independent MPP trackers 2
No. of PV strings per MPPT 1 / 1
Max. PV input current 40 A ( 20 A / 20 A )
Max. DC short-circuit current 50 A ( 25 A / 25 A )
Max. current for DC connector 25 A
Battery data
Battery type Li-ion battery
Battery voltage range 40 V – 60 V
Max. charge / discharge current*** 120 A / 120 A135 A / 135 A
Max. charge / discharge power 5000 W / 5000 W6000 W / 6000 W
Input / Output (AC)
Max. AC power from grid 8800 W
Rated AC output power 5000 W 6000 W
Max. AC output apparent power 5000 VA 6000 VA
Max. AC output current 22.7 A27.3 A
Rated AC voltage 220 V / 230 V / 240 V
AC voltage range 154 V – 276 V
Rated grid frequency 50 Hz / 60 Hz
Grid frequency range 45 Hz – 55 Hz / 55 Hz – 65 Hz
Harmonic ( THD ) < 3%  ( of rated power )
Power factor at rated power / Adjustable power factor > 0.99 at default value at rated power / 0.8 leading to 0.8 lagging
Feed-in phases / Connection phases 1 / 1
Backup Data (on grid mode)
Max. output power for backup load **** 8800 W
Max. output current for backup load 40 A
Backup Data (off-grid mode)
Rated voltage 220 V / 230 V / 240 V
Rated frequency 50 Hz / 60 Hz
THDV ( @ Linear load ) < 2%
Backup switch time ≤ 4 ms
Rated output power 5000 W 6000 W
Max. output power for backup load 5500 W 6600 W
Peak output power 2 times of rated power, 10 s
Effciency
Max. effciency / European effciency 97.6% / 96.7%
Protection & Function
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
DC switch ( solar ) Yes
Surge protection DC Type II / AC Type II
PID Zero Yes
Micro-inverter compatibility ***** Optional
General Data
Topology ( Inverter ) Non-isolated
Topology ( Battery BDC ) Isolated
Degree of protection IP65
Dimensions ( W * H * D ) 532 mm * 386 mm * 210 mm
Weight ≤ 18 kg
Mounting method Wall-mounting bracket
Operating ambient temperature range -25 ℃ to 60 ℃
Allowable relative humidity range 0% – 95%
Cooling method Natural convection
Max. operating altitude 2000 m
Noise ( typical ) ≤ 35 dB ( A )
Display LCD digital touchable display & LED indicator
Communication CAN, RS485, Ethernet ( optional ), WLAN ( optional )
DI / DO DI * 1 / DO * 1
DC connection type MC4 compatible ( Max. 6 mm² )
Battery connection type OT terminal ( 35 mm² – 50 mm² )
AC connection type Plug and Play ( Max. 8 AWG )
Scalability****** 8 in parallel
Grid compliance IEC 62109-1/-2, IEC/EN 61000-6-1/-3, IEC 62116, IEC 61727, NRS 097-2-1, MEA, PEA, DEWA
