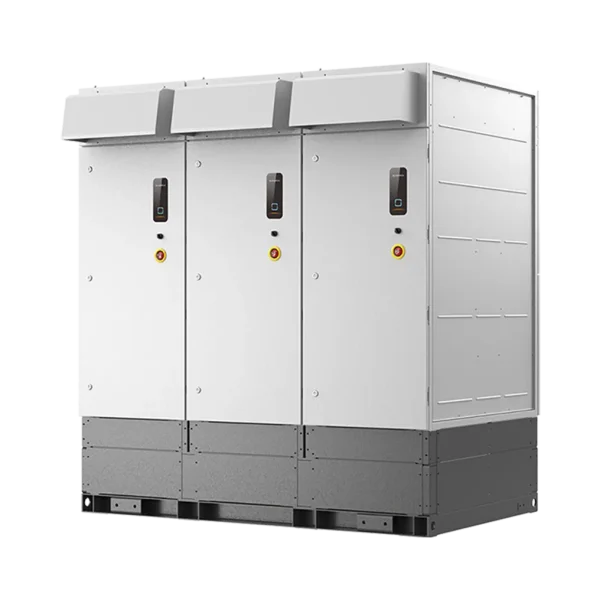

MP-SG3300UD-3017

MP-SG3300UD-3017

Modular Inverter

The China Moneypro SG3300UD-20 is engineered for high-power, high-efficiency, and utility-scale photovoltaic applications. Designed specifically for modern 1500Vdc PV systems, it combines advanced three-level power conversion, robust thermal management, and intelligent monitoring to ensure maximum energy yield, reduced operating costs, and long-term system reliability even in harsh, high-temperature environments.

Category:

Share your love

Unlock Maximum Utility-Scale Solar Potential

The China Moneypro SG3300UD-20 is engineered for high-efficiency, reliable, and cost-effective utility-scale PV power generation. Designed for 1500Vdc systems, it delivers stable performance even under high-temperature conditions, ensuring maximum energy capture for large-scale solar farms.

Superior Energy Harvesting

Advanced Three-Level Conversion

  • Three-level inverter technology provides up to 99% efficiency.

  • Optimized cooling enables full power operation at 52??C, ensuring consistent output.

Advantages:

  • Captures more energy from PV modules

  • Maintains performance in hot climates

  • Maximizes return on investment

Smart Operations & Maintenance

Intelligent System Monitoring

  • Integrated zone monitoring allows real-time diagnostics and online troubleshooting.

  • Modular design simplifies maintenance, reducing downtime and labor costs.

Benefits:

  • Quick fault detection and repair

  • Minimal operational interruption

  • Simplified O&M for large PV arrays

Economical Deployment

Lower Cost Installation

  • Outdoor-ready design reduces transportation and installation complexity.

  • DC 1500V system compatibility lowers overall system cost.

  • Optional Q-at-night function enhances efficiency during low-light periods.

Reliable Grid Integration

Seamless Connection to Utilities

  • Compliant with IEC 61727 and IEC 62116 standards.

  • Supports Low/High Voltage Ride Through (L/HVRT).

  • Enables active and reactive power control with controlled ramp rates.

Benefits:

  • Ensures grid stability

  • Meets international compliance standards

  • Supports advanced utility grid management

Why Choose China Moneypro SG3300UD-20?

  • High Reliability: 1500Vdc design with robust outdoor operation

  • Maximized Efficiency: Three-level conversion for optimal energy output

  • Compliance Assured: Meets international grid codes

  • Lower Installation Costs: Outdoor-ready design simplifies deployment

  • Easy Maintenance: Modular structure and smart monitoring reduce downtime

Key Specifications

  • Max PV Input Voltage: 1500 V

  • AC Output Power: 3300 kVA

  • Nominal AC Voltage: 660 V

  • Maximum Efficiency: 99%

Typical Applications

  • Utility-Scale PV Plants: High-efficiency inverter reduces total system costs

  • Grid Integration: Supports reactive power dispatch and voltage regulation

  • Harsh Environments: Maintains reliable operation even in high temperatures

FAQ ?C Common Questions

Q1: How does SG3300UD-20 increase yield?
Through advanced three-level technology and optimized thermal management, it captures maximum solar energy.

Q2: How is maintenance simplified?
The modular design and zone monitoring allow quick diagnosis and fast repairs.

Q3: Can it handle voltage fluctuations?
Yes, it supports L/HVRT and active/reactive power control, ensuring grid stability.

Q4: Is this inverter suitable for outdoor use?
Absolutely. The outdoor-ready design simplifies installation and reduces costs.

Q5: Does it save energy during low-sun periods?
Yes. The optional Q-at-night function improves efficiency during low irradiance periods.

Specifications

Type designation SG3300UD-20
Input (DC)
Max. PV input voltage 1500 V
Min. PV input voltage / Startup input voltage 938 V / 950 V
MPP voltage range 938 V – 1500 V
No. of independent MPP inputs 3
No. of DC inputs 15 ( optional: 21 )
Max. PV input current 3 * 1435 A
Max. DC short-circuit current 3 * 3528 A
PV array confguration Negative grounding or foating
Output (AC)

AC output power

 3300 kVA @ 52 ℃, 3960 kVA @ 23 ℃
Max. AC output current 3 * 1155 A
Nominal AC voltage 660 V
AC voltage range 561 V – 726 V
Nominal grid frequency / Grid frequency range 50 Hz / 45 Hz – 55 Hz, 60 Hz / 55 Hz – 65 Hz
Harmonic (THD) < 1.5 % ( at nominal power )
Power factor at nominal power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / AC connection 3 / 3
Effciency
Max. effciency / European effciency 99.0 % / 98.7 %
Protection & Function
DC input protection Load break switch + fuse
AC output protection Circuit breaker
Surge protection DC Type II / AC Type II
Grid monitoring / Ground fault monitoring Yes / Yes
Insulation monitoring Yes
Surge protection Yes
Q at night function Optional
General data
Dimensions (W*H*D) 2340 mm * 2300 mm * 1550 mm
Weight 2.5 T
Topology Transformerless
Degree of protection IP65
Night power consumption < 200 W
Operating ambient temperature range * -35 ℃ – 60 ℃
Allowable relative humidity range 0 – 100 %
Cooling method Temperature controlled forced air cooling
Max. operating altitude 4000 m (> 2000 m derating)
Display LED Indicators, Ethernet+WebHMI
Communication Standard: RS485, Ethernet
Compliance CE, IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683
