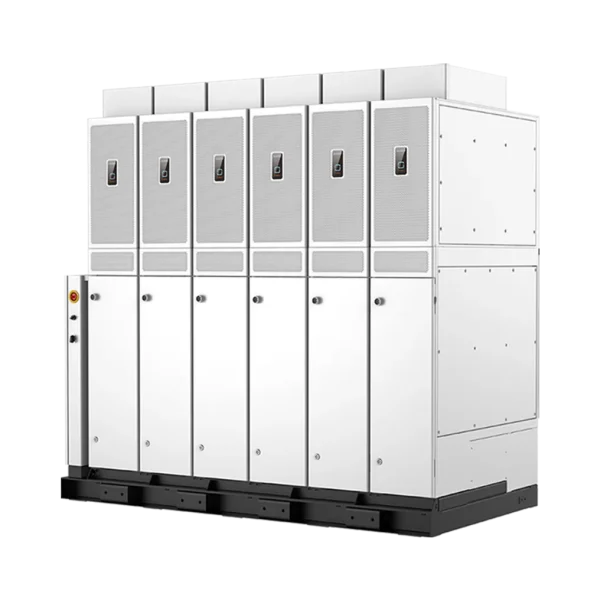

MP-0.8~9.6MW 1+X 2.0-8373

Next-Generation Utility Inverter for Large-Scale PV

Utility-scale solar plants often face high downtime costs, complex maintenance, and grid stability challenges. The China Moneypro 1+X 2.0 Modular Inverter is designed to combine the benefits of central and string inverters, providing flexible, safe, and highly reliable solutions for 0.8?C9.6 MW utility PV projects.

---

Flexible Block Design for Maximum Efficiency

Modular ??LEGO-style?? Deployment

• Each unit delivers 800 kW, with split modular design for easy combination.

• Supports up to 12 units in parallel, forming a 9.6 MW block.

• Optimized for lower LCOE and faster deployment.

Benefits:

• Flexibly scale system size according to project needs

• Minimize upfront investment by modular expansion

• Reduce installation complexity and time

---

Rapid Fault Recovery

Intelligent Fault Diagnosis & Split Design

• Advanced fault detection locates issues without full system disassembly.

• Split modular design allows faulty modules to be replaced within 1 hour.

• Achieves 97% lower outage losses compared to conventional solutions.

Operational benefits:

• Minimized downtime

• Faster ROI and improved energy yield

• Simplified on-site maintenance

---

Active Arc Protection for Ultimate Safety

DC Parallel Arc Extinction

• Active arc shutdown in 40 ms prevents arcing risks at the source.

• Block-level linkage protection stops fault propagation.

Safety advantages:

• Protects personnel and equipment

• Ensures system stability in real-world conditions

• Meets strict utility safety requirements

---

High Reliability with Minimal Maintenance

Robust Design and Thermal Management

• Dual-cycle dissipation ensures no derating up to 52??C.

• IP66 / C5-H protection for dust, water, and corrosion resistance.

• Air duct self-cleaning keeps ducts dust-free without daily attention.

Reliability benefits:

• Stable performance in harsh environments

• Reduced O&M workload

• Longer system lifespan

---

Advanced Grid-Forming Capability

Fast Inertia Support & Off-Grid Power

• Provides faster response time (5 ms) for voltage and frequency stability.

• Black start capability powers construction sites before grid connection.

Grid benefits:

• Improves grid stability and resilience

• Supports earlier COD (Commercial Operation Date)

• Maximizes ROI through advanced PV system performance

---

Technical Highlights

• Max PV Input Voltage: 1500 V

• Rated Output Power: 0.8?C9.6 MW

• Nominal AC Voltage: 645 V

• Max Efficiency: 99%

---

Applications

Utility-Scale PV Farms

Ideal for 0.8?C9.6 MW 1500Vdc projects, combining modularity and high reliability.

Flexible, Rapid Expansion

Modular 800 kW units allow LEGO-style block growth, reducing downtime and investment risk.

Safe & Maintenance-Friendly Operation

Active arc protection, air duct self-cleaning, and IP66/C5-H design reduce daily O&M effort while enhancing system safety.

---

FAQ ?C Key Questions

Q1: What is the maximum system size supported?
Supports up to 9.6 MW using 12 modular 800 kW units in parallel.

Q2: How fast can a faulty module be replaced?
Thanks to split modular design, faulty modules can be replaced in 1 hour.

Q3: What safety features are included?
Active DC arc extinction, 40 ms shutdown, and block-level linkage protection ensure ultimate safety.

Q4: How does it handle harsh environments?
With IP66/C5-H protection, dual-cycle dissipation, and air duct self-cleaning, it operates reliably even in extreme conditions.

Q5: Can it support off-grid or black start operations?
Yes. The grid-forming capability allows black start for construction power and improves grid stability.

---

Why Choose China Moneypro

The 1+X 2.0 Modular Inverter combines central and string inverter advantages, delivering high efficiency, rapid fault recovery, ultimate safety, and minimal maintenance. It is ideal for next-generation utility-scale PV projects seeking flexible deployment, reliable operations, and maximum ROI.
