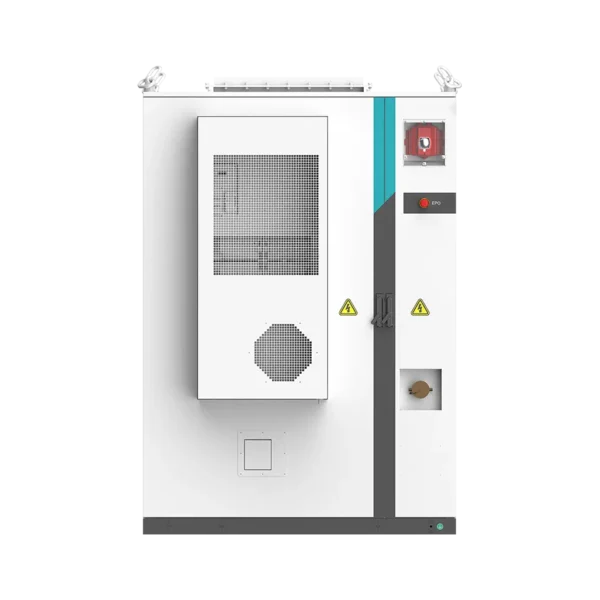

MP-OPTIM US A329-BAT-9630

High-Capacity Energy Storage Performance

Designed for Large-Scale Applications

• 329 kWh nominal battery capacity per cabinet
• 0.5C continuous operation rate for stable performance
• 1176 – 1491 V DC voltage range
• Up to 96 % round-trip efficiency

Benefits:

• High-density energy storage for large systems
• Stable long-duration operation for commercial use

Flexible System Expansion

Scalable Energy Architecture

• Modular cabinet-based design for flexible expansion
• Supports up to 5 systems in parallel
• Flexible configuration from 1976 kWh to 3948 kWh system capacity
• Suitable for grid-scale and industrial deployments

Advantages:

• Scalable architecture for future expansion
• Flexible capacity deployment for project needs

Intelligent Energy Management

Smart Energy Control

• Supports peak shaving and energy shifting
• Self-consumption optimization
• Backup power operation mode
• Multiple communication protocols: RS485 / CAN / LAN

Benefits:

• Intelligent energy scheduling
• Optimized operational efficiency
• Easy system integration

Durable & Industrial-Grade Design

Engineered for Harsh Environments

• Operating temperature: -40 °C to +55 °C
• IP55 protection rating
• Maximum altitude: 4000 m
• Air-cooling system for stable operation
• Aerosol fire-extinguishing protection

Advantages:

• Reliable operation in extreme conditions
• Industrial-grade safety protection

Why Choose China Moneypro A329BAT?

• High Capacity: 329 kWh per cabinet
• Scalable System: Parallel support up to 5 units
• Long Lifecycle: ＞7000 cycles
• High Efficiency: Up to 96 % round-trip efficiency
• Industrial-Grade Protection: IP55 and wide temperature range

Key Specifications

• Battery Type: LiFePO4 (LFP)
• Nominal Capacity: 329 kWh
• Voltage Range: 1176 – 1491 V
• Cycle Life: ＞7000 cycles
• Round-Trip Efficiency: 96 %
• Protection Rating: IP55
• Operating Temperature: -40 °C to +55 °C
• Communication: RS485 / CAN / LAN
• Parallel Support: Up to 5 systems
• Cooling Method: Air Cooling

Typical Applications

• Commercial & Industrial Energy Storage
• Utility-Scale Grid Support
• Peak Shaving & Load Management
• Renewable Energy Integration
• Backup Power Systems

FAQ – Common Questions

Q1: What is the battery capacity of A329BAT?
China Moneypro A329BAT offers 329 kWh nominal capacity per cabinet.

Q2: How scalable is the system?
The system supports up to 5 units in parallel, enabling large-scale deployments.

Q3: What battery technology is used?
The system uses LiFePO4 (LFP) battery technology.

Q4: What is the cycle life?
The system provides over 7000 cycles for long-term reliability.

Q5: What applications is this system suitable for?
It is ideal for commercial, industrial, and utility-scale energy storage.
