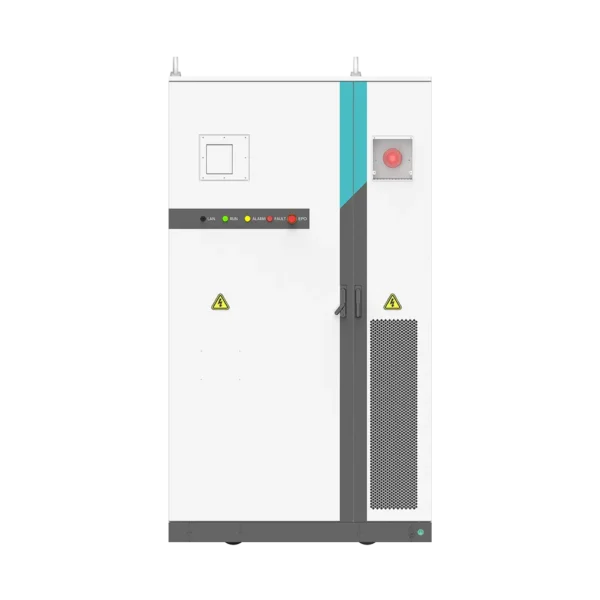

MP-OPTIM US L417-BAT-7319

High Capacity & Scalable Architecture

Designed for Large-Scale Applications

• 417 kWh nominal energy per cabinet for large-scale deployment
• Supports up to 12 systems in parallel for multi-MWh capacity
• High-voltage platform 1123-1497 V DC improves system efficiency
• Modular cabinet design simplifies expansion and installation

Benefits:

• Scalable energy storage for commercial & utility applications
• Flexible system expansion for growing energy demand

Advanced Liquid-Cooling Technology

Intelligent Thermal Management

• Liquid-cooling system ensures stable temperature control
• Operating temperature range: -25 °C to +55 °C
• Reduced thermal stress improves battery lifetime
• High-efficiency thermal management for demanding environments

Advantages:

• Enhanced system safety and reliability
• Improved battery lifespan and performance

High Performance & Long Lifecycle

Optimized Energy Efficiency

• LFP battery technology for enhanced safety and durability
• Cycle life > 8500 cycles @ 98% DoD
• Round-trip efficiency > 95%
• High energy density for reduced footprint

Benefits:

• Long-term investment value
• High operational efficiency

Robust & Industrial-Grade Design

Built for Harsh Environments

• IP55 protection level for outdoor deployment
• Maximum altitude: 4000 m
• Wide humidity range: 5%–95%
• Anti-corrosion design C3 (C5 optional)

Advantages:

• Reliable performance in industrial environments
• Suitable for outdoor and harsh climate installations

Intelligent Management & Communication

Smart Energy Control

• Communication interfaces: CAN / Ethernet (Modbus TCP)
• Multi-level Battery Management System (BMS)
• Remote monitoring and system diagnostics
• Supports energy arbitrage and demand response

Benefits:

• Real-time monitoring and remote management
• Flexible integration with EMS systems

Why Choose China Moneypro L417BAT?

• High Capacity: 417 kWh per cabinet
• Liquid Cooling: Stable temperature management
• Long Lifespan: >8500 cycle life
• Scalable Design: Up to 12 systems parallel
• Industrial Grade: IP55 protection
• High Efficiency: >95% round-trip efficiency

Key Specifications

• Nominal Energy: 417 kWh
• Battery Type: LFP (LiFePO4)
• Voltage Range: 1123-1497 V
• Cycle Life: >8500 cycles
• Round-trip Efficiency: >95%
• Cooling Method: Liquid cooling
• Protection Rating: IP55
• Operating Temperature: -25°C ~ +55°C
• Communication: CAN / Ethernet
• Parallel Support: Up to 12 systems
• Dimension: 1300 × 1300 × 2410 mm
• Weight: ~3670 kg

Typical Applications

• Commercial & Industrial Energy Storage
• Renewable Energy Integration
• Peak Shaving & Load Shifting
• Backup Power Systems
• Microgrid & Utility-Scale Applications

FAQ – Common Questions

Q1: What is the capacity of the L417BAT system?
Each cabinet provides 417 kWh nominal energy.

Q2: What battery technology is used?
The system uses LFP (LiFePO4) battery technology for high safety and long lifespan.

Q3: Is the system scalable?
Yes, up to 12 cabinets can be connected in parallel.

Q4: What cooling method is used?
The system adopts liquid-cooling thermal management.

Q5: What environments is the system suitable for?
With IP55 protection and wide temperature range, the system is suitable for outdoor industrial applications.
