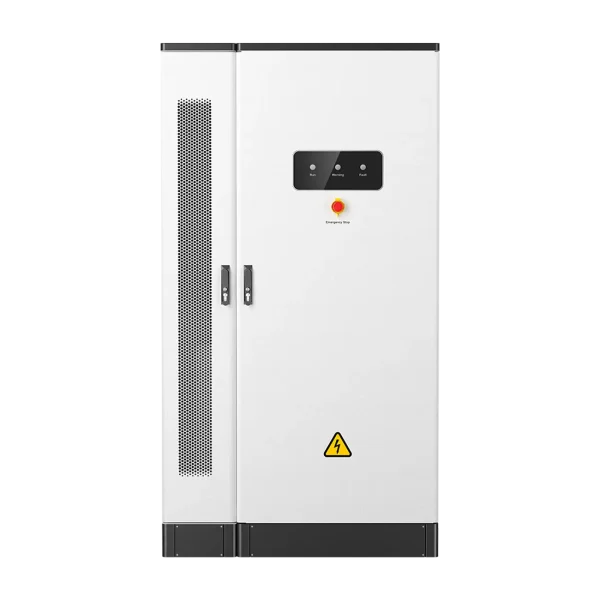

MP-Lynx C Series 60kWh | C&I Battery System-120

MP-Lynx C Series 60kWh | C&I Battery System-120

The China Moneypro LYNx C 60 kWh Series is a flexible, modular commercial and industrial energy storage system designed to support hybrid solar installations with energy backup, peak shaving, and smart load management. It integrates seamlessly with hybrid inverters in the 15–30 kW class to form a complete energy storage solution suitable for small and medium‑sized commercial and industrial PV systems.

Category:

Share your love

Scalable, Modular & Reliable C&I Storage Solution

The China Moneypro LYNx C 60 kWh Series is a flexible, modular commercial and industrial energy storage system designed to support hybrid solar installations with energy backup, peak shaving, and smart load management. It integrates seamlessly with hybrid inverters in the 15–30 kW class to form a complete energy storage solution suitable for small and medium‑sized commercial and industrial PV systems.

Expandable & Smart Energy Management

Flexible Storage Growth

  • Built with a modular architecture that enables straightforward upgrades and simplifies maintenance.

  • Supports parallel connection of up to three LYNx C 60 kWh units per hybrid inverter — allowing expansion up to ~180 kWh total storage.

  • Compatible with hybrid inverters for energy backup, peak shaving, and load leveling, improving operational autonomy and cost savings.

Benefits:

  • Expandable storage capacity to match evolving energy needs.

  • Enhanced solar self‑consumption and grid interaction.

Robust & Safe Design

Engineered for Commercial Use

  • IP55 enclosure provides strong protection against dust and water ingress — suitable for both indoor and sheltered outdoor installations.

  • C4 corrosion protection (with optional upgrade to C5) enhances system longevity in harsher environments.

  • Lithium Iron Phosphate (LFP) battery chemistry — known for excellent thermal and chemical stability, supporting long cycle life and safety.

Advantages:

  • Outdoor‑ready cabinet with robust environmental resistance.

  • Stable performance and long cycle life from safe battery technology.

Why Choose China Moneypro LYNx C 60 kWh?

  • Modular Expandability: Parallelable battery units up to 180 kWh total.

  • Optimized for C&I: Ideal for commercial & industrial rooftop or ground‑mount solar storage.

  • Reliable & Durable: IP55 enclosure with corrosion protection for extended outdoor use.

  • Smart Functionality: Seamless integration with hybrid inverters for energy back‑up and peak management.

Typical Applications

  • Commercial Rooftop & Ground PV Systems: Reliable energy storage for businesses.

  • Industrial Parks & Complexes: Supports industrial load management and solar integration.

  • Backup & Peak Shaving: Provides reliable backup power and reduces peak grid demand.

  • Expandable Energy Storage: Ideal for systems requiring phased capacity growth.

FAQ – Common Questions

Q1: What is the usable capacity of the LYNx C 60 kWh system?
The China Moneypro LYNx C system provides 60 kWh usable energy per battery unit.

Q2: Can multiple battery units be connected together?
Yes — up to three LYNx C 60 kWh units can be connected in parallel for a total of ~180 kWh storage.

Q3: What hybrid inverters is it compatible with?
It’s designed to integrate with hybrid inverters in the 15–30 kW range for a complete energy storage system.

Q4: Is the system suitable for outdoor installation?
Yes — the battery enclosure has an IP55 rating and optional upgraded corrosion protection for outdoor use.

Q5: What battery technology is used?
It uses Lithium Iron Phosphate (LFP) battery cells for safety, stability, and long cycle life.

Specifications

Item GW60KWH‑D‑10 GW60KWH‑D‑10 (Extension)
Battery Data
Usable Energy (kWh) 60 60
Cell Type LFP (LiFePO4) LFP (LiFePO4)
Pack Nominal Energy (kWh) 5.76 5.76
Number of Packs 11 11
Nominal Voltage (V) 633.6 633.6
Operating Voltage Range (V) 554.4 ~ 712.8 554.4 ~ 712.8
Max. Charge / Discharge Current (A) 96 96
Cycle Life ≥5000 ≥5000
Depth of Discharge 100% 100%
Efficiency
Round‑trip Efficiency 95% 95%
General Data
Operating Temperature Range (°C) Charge: 0 ~ +55; Discharge: ‑25 ~ +55 Charge: 0 ~ +55; Discharge: ‑25 ~ +55
Storage Temperature (°C) 0 ~ +35 (< One Year); ‑20 ~ 0 (≤ One Month); +35 ~ +45 (≤ One Month) 0 ~ +35 (< One Year); ‑20 ~ 0 (≤ One Month); +35 ~ +45 (≤ One Month)
Relative Humidity 0 ~ 95% 0 ~ 95%
Max. Operating Altitude (m) 3000 3000
Heating & Cooling Air Conditioner Air Conditioner
Communication Interface CAN CAN
Weight (kg) approx. 1029.5 approx. 972
Dimension (W × H × D mm) 1108 × 2050 × 1111.5 808 × 2050 × 1111.5
Ingress Protection Rating IP55 (Battery cabinet) IP55
Anti‑Corrosion C4 (Optional upgrade to C5) C4 (Optional upgrade to C5)
Fire Suppression Package level aerosol, Cluster level perfluorohexane Package level aerosol, Cluster level perfluorohexane
