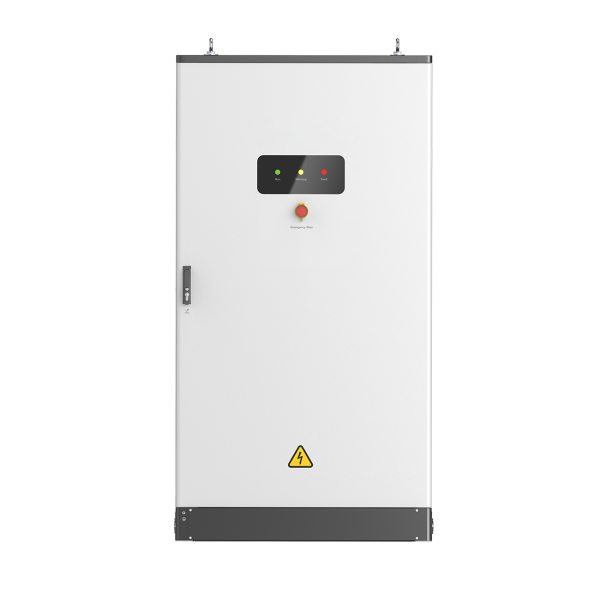

MP-BAT-C Series 60-112kWh | C&I Battery System-9488

MP-BAT-C Series 60-112kWh | C&I Battery System-9488

The China Moneypro BAT‑C Series is a high‑voltage commercial & industrial (C&I) battery storage system designed for medium‑to‑large energy storage applications. Engineered with robust LiFePO₄ cells, advanced safety systems, and flexible scalability, this battery series pairs seamlessly with hybrid inverters to deliver efficient energy backup, peak shaving and optimized load management.

Category:

Share your love

Scalable, Safe & Efficient C&I Energy Storage

The China Moneypro BAT‑C Series is a high‑voltage commercial & industrial (C&I) battery storage system designed for medium‑to‑large energy storage applications. Engineered with robust LiFePO₄ cells, advanced safety systems, and flexible scalability, this battery series pairs seamlessly with hybrid inverters to deliver efficient energy backup, peak shaving and optimized load management.

High Performance & Modular Scalability

Flexible Capacity Options

  • Available in ~60 kWh, ~100 kWh and ~110 kWh usable energy variants to match diverse C&I energy needs.

  • Supports up to 4 units in parallel — enabling system scaling up to ~450 kWh capacity for larger projects.

  • Continuous charging up to 0.9C and discharging up to 1.1C for responsive power delivery under dynamic load demands.

Benefits:

  • Tailored storage capacities for commercial sites, industrial facilities, and PV‑plus‑storage deployments.

  • Scales effortlessly as energy requirements grow.

Robust Safety & Long‑Term Reliability

Engineered for Commercial & Industrial Environments

  • Built on LiFePO₄ (LFP) cell technology with high cycle stability for long‑lasting performance.

  • Pack‑level humidity monitoring with automatic dehumidification ensures optimal internal conditions across temperature variations.

  • Aerosol‑based fire suppression at both pack and cabinet levels enhances multi‑layered safety protection.

  • IP55 protection rating offers robust environmental resistance suitable for outdoor installations.

Advantages:

  • Comprehensive safety design for demanding commercial and industrial applications.

  • Long cycle life and enhanced operational reliability.

Intelligent Control & Smart Integration

Enhanced System Management

  • Supports intelligent monitoring and control for real‑time visibility into battery status.

  • Seamless integration with hybrid inverters and Static Transfer Switch (STS) boxes enables optimized energy dispatch, peak shaving, and backup support.

  • Modular design simplifies installation and maintenance for C&I project deployments.

Benefits:

  • Improves operational performance and reduces system downtime.

  • Flexible integration options for evolving energy system architectures.

Why Choose China Moneypro BAT‑C Series?

  • Flexible Storage Capacities: Multiple usable energy options — ~60 kWh, ~100 kWh, ~110 kWh — for tailored C&I solutions.

  • Scalable System Architecture: Parallel support up to 4 units — scalable up to ~450 kWh.

  • High Safety Standards: Multi‑layered aerosol fire suppression and humidity control.

  • Robust Outdoor‑Rated Protection: IP55 enclosure for reliable outdoor performance.

  • Responsive Charge/Discharge: Up to 0.9C continuous charge and 1.1C discharge rate for dynamic power demands.

Typical Applications

  • Commercial Energy Storage: Efficient backup and load management for retail, office, and campus facilities.

  • Industrial Power Support: Peak shaving and energy optimization for factories and manufacturing sites.

  • PV‑Plus‑Storage Systems: Integration with hybrid inverters for solar self‑consumption and grid interaction.

  • Backup Power Supply: Reliable energy reservoir for critical loads during outages.

FAQ – Common Questions

Q1: What usable energy options are available in the BAT‑C Series?
China Moneypro BAT‑C Series offers approximately 60 kWh, 100 kWh, and 110 kWh usable energy variants.

Q2: Can the system be expanded for larger storage needs?
Yes — up to 4 BAT‑C units can be connected in parallel, allowing system capacity to scale up to ~450 kWh.

Q3: What safety features are included?
The system incorporates LFP cells, pack‑level humidity monitoring with automatic dehumidification, and an aerosol‑based fire suppression system for robust safety performance.

Q4: Is the battery suitable for outdoor installation?
Yes — the enclosure is rated IP55, making it suitable for outdoor and commercial environments.

Q5: What charge and discharge performance does the system support?
The BAT‑C Series supports continuous charging up to 0.9C and discharging up to 1.1C for dynamic energy response.

Specifications

Parameter MP-GW61.4‑BAT‑AC‑G10 MP-GW102.4‑BAT‑AC‑G10 MP-GW112.6‑BAT‑AC‑G10
Cell & Pack
Cell Type LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4)
Cell Capacity (Ah) 100 100 100
Rated Capacity (Ah) 200 200 200
Pack Type / model GW10.2‑PACK‑ACI‑G10 GW10.2‑PACK‑ACI‑G10 GW10.2‑PACK‑ACI‑G10
Pack Nominal Energy (kWh) 10.24 10.24 10.24
Pack Configuration 2P96S 2P160S 2P176S
Pack Weight (kg) < 90 < 90 < 90
Number of Packs 6 10 11
Nominal Energy (kWh) 61.4 102.4 112.6
Usable Energy (kWh)*¹ 60 100 110
Nominal Voltage (V) 307.2 512.0 563.2
Operating Voltage Range (V) 275.52 ~ 346.56 459.2 ~ 577.6 505.12 ~ 635.36
Charge & Discharge
Charging Operating Temperature Range (°C) -20 ~ +55 -20 ~ +55 -20 ~ +55
Discharging Operating Temperature Range (°C) -20 ~ +55 -20 ~ +55 -20 ~ +55
Max. Charge / Discharge Current (A)*² 180 / 220 180 / 220 180 / 220
Max. Charge / Discharge Rate*² 0.9C / 1.1C 0.9C / 1.1C 0.9C / 1.1C
Max. Charge / Discharge Power (kW)*² 55.2 / 67.5 92.1 / 112.6 101.3 / 123.9
Cycle Life 6000 (25 ± 2°C, 0.5C, 90% DOD, 70% EOL) 6000 (25 ± 2°C, 0.5C, 90% DOD, 70% EOL) 6000 (25 ± 2°C, 0.5C, 90% DOD, 70% EOL)
Depth of Discharge 100% 100% 100%
Efficiency
Round‑trip Efficiency 96%@100% DOD, 0.2C, 25 ± 2°C 96%@100% DOD, 0.2C, 25 ± 2°C 96%@100% DOD, 0.2C, 25 ± 2°C
General Data
Operating Temperature Range (°C) -20 ~ +55 -20 ~ +55 -20 ~ +55
Storage Temperature (°C) +35 ~ +45 (< 6 Months); -20 ~ +35 (< 1 Year) +35 ~ +45 (< 6 Months); -20 ~ +35 (< 1 Year) +35 ~ +45 (< 6 Months); -20 ~ +35 (< 1 Year)
Relative Humidity 0 ~ 100% (Condensationless) 0 ~ 100% (Condensationless) 0 ~ 100% (Condensationless)
Max. Operating Altitude (m) 4000 4000 4000
Cooling Method Air Conditioner Air Conditioner Air Conditioner
User Interface LED LED LED
Communication CAN (RS485 Optional) CAN (RS485 Optional) CAN (RS485 Optional)
Weight (kg) < 950 < 1310 < 1400
Dimension (W × H × D mm) 1055 × 2000 × 1055 1055 × 2000 × 1055 1055 × 2000 × 1055
Ingress Protection Rating IP55 IP55 IP55
Anti‑corrosion Class C4 (C5‑M Optional) C4 (C5‑M Optional) C4 (C5‑M Optional)
Fire Safety Equipment Aerosol (Pack & Cabinet Level) Aerosol (Pack & Cabinet Level) Aerosol (Pack & Cabinet Level)
Certification*³ IEC62619 / IEC63056 / IEC60730 / IEC62477 / VDE2510 / ISO13849 / IEC62040 / N140 / EU 2023 / 1542 / UN38.3 Same Same
EMC IEC / EN61000‑6‑1 / 2 / 3 / 4 Same Same
