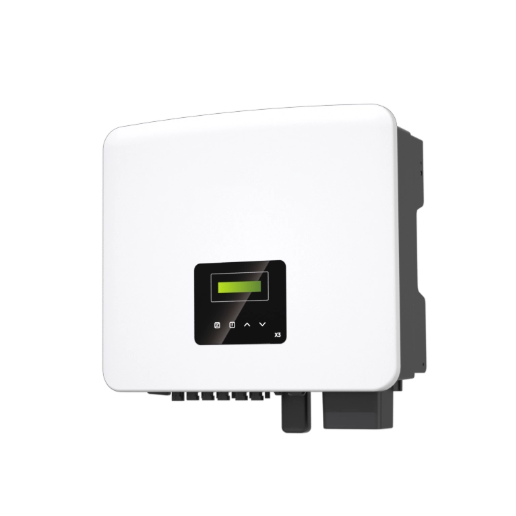

MP-X3-PRO G2 | 8-30kW Three Phase Residential On-grid Inverter-6862

MP-X3-PRO G2 | 8-30kW Three Phase Residential On-grid Inverter-6862

The China Moneypro X3‑PRO G2 Series is a versatile three‑phase string solar inverter designed for both residential and commercial PV installations. It combines high conversion efficiency, smart energy management, robust safety features, and flexible power configurations to suit diverse solar applications from home systems to commercial rooftops.

Category:

Share your love

Flexible, Efficient & Intelligent PV Inverter Solution

The China Moneypro X3‑PRO G2 Series is a versatile three‑phase string solar inverter designed for both residential and commercial PV installations. It combines high conversion efficiency, smart energy management, robust safety features, and flexible power configurations to suit diverse solar applications from home systems to commercial rooftops.

High Conversion Efficiency & Solar Utilization

Maximize PV Energy Harvest

  • Delivers up to 98.5 % maximum efficiency for excellent energy conversion.

  • Supports 150 % DC oversizing and 110 % AC overloading output for enhanced solar utilization.

  • Each MPPT supports up to 32 A input current combined with a wide MPPT voltage range and global MPP scan to optimize yield even under variable irradiance.

Benefits:

  • Higher PV energy capture and improved system performance.

  • Strong adaptability to high‑power PV arrays and diverse module types.

Smart & Connected Operation

Built‑In Intelligent Features

  • Export power control function for grid compliance and energy optimization.

  • Intelligent load management for devices like heat pumps and EV chargers.

  • 24‑hour system monitoring supported via Wi‑Fi, LAN, or 4G connectivity.

  • Compact, high‑power‑density design enables flexible deployment in various installations.

Advantages:

  • Smarter energy dispatch and load coordination.

  • Remote monitoring and management capability for enhanced usability.

Robust Safety & Reliable Design

Commercial‑Grade Protection

  • IP66 ingress protection ensures resistance to dust and water in outdoor installations.

  • Type II SPD protection on both AC and DC sides for effective surge protection.

  • Optional AFCI (arc‑fault circuit interrupter) support enhances electrical safety.

Benefits:

  • Multiple safety layers protect equipment and personnel.

  • Designed for reliable operation in a wide range of environments.

Why Choose China Moneypro X3‑PRO G2?

  • High Efficiency: Up to 98.5 % conversion performance.

  • Flexible PV Input: Supports 150 % DC oversizing and 110 % AC overloading output.

  • Smart Control: Integrated export control and intelligent load management.

  • Connected Monitoring: 24 h system visibility with network connectivity.

  • Robust Safety: IP66 protection, SPD safeguards, and optional AFCI support.

Typical Applications

  • Residential Solar Installations: Flexible power options for home PV systems.

  • Commercial & C&I PV Systems: Ideal for business rooftops and mid‑scale solar energy production.

  • Smart Load Scenarios: Coordination with EV chargers, heat pumps, and other intelligent loads.

  • Connected & Remote Monitoring Environments: Integrated communication for system visibility.

FAQ – Common Questions

Q1: What power ratings does the X3‑PRO G2 series offer?
China Moneypro X3‑PRO G2 is available in 8 kW, 10 kW, 12 kW, 15 kW, 17 kW, 20 kW, 25 kW, and 30 kW variants.

Q2: What efficiency levels can be expected?
The inverter delivers up to 98.5 % maximum efficiency, ensuring strong energy conversion.

Q3: Does it support smart load integration?
Yes — integrates intelligent load management to optimize energy usage with devices such as heat pumps and EV chargers.

Q4: Is the unit suitable for outdoor installations?
Yes — the IP66 protection rating provides resistance to environmental elements for outdoor deployment.

Q5: What safety protections are built in?
It includes Type II SPD surge protection on AC & DC sides, with optional AFCI support for enhanced electrical safety.

Specifications

Technical Data
X3-PRO-8K-G2
X3-PRO-10K-G2
X3-PRO-12K-G2
X3-PRO-15K-G2
X3-PRO-17K-G2
X3-PRO-20K-G2
X3-PRO-25K-G2
X3-PRO-30K-G2
PV INPUT
Max. recommended PV array power
12.0 kWp
15.0 kWp
18.0 kWp
22.5 kWp
25.5 kWp
30.0 kWp
37.5 kWp
45.0 kWp
Max. PV input voltage
1100 V
1100 V
1100 V
1100 V
1100 V
1100 V
1100 V
1100 V
Rated PV input voltage
650 V
650 V
650 V
650 V
650 V
650 V
650 V
650 V
Operation voltage range
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
135 ~ 985 V
MPPT voltage range
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
160 ~ 980 V
Full load voltage range
350 ~ 850 V
350 ~ 850 V
350 ~ 850 V
350 ~ 850 V
400 ~ 850 V
400 ~ 850 V
500 ~ 850 V
500 ~ 850 V
Start-up voltage
200 V
200 V
200 V
200 V
200 V
200 V
200 V
200 V
No. of MPP trackers / Strings per MPP tracker
2 / (2/2)
2 / (2/2)
2 / (2/2)
2 / (2/2)
2 / (2/2)
2 / (2/2)
3 / (2/2/2)
3 / (2/2/2)
Max. input current per MPPT
32 A
32 A
32 A
32 A
32 A
32 A
32 A
32 A
Max. input short circuit current per MPPT
40 A
40 A
40 A
40 A
40 A
40 A
40 A
40 A
AC OUTPUT
Rated output power
8 kW
10 kW
12 kW
15 kW
17 kW
20 kW
25 kW
30 kW
Rated output current
12.2 / 11.6 A
15.2 / 14.5 A
18.2 / 17.4 A
22.8 / 21.8 A
25.8 / 24.7 A
30.3 / 29.0 A
37.9 / 36.3 A
45.5 / 43.5 A
Max. output apparent power
8.8 kVA
11.0 kVA
13.2 kVA
16.5 kVA
18.7 kVA
22.0 kVA
27.5 kVA
30.0 kVA
Max. output continuous current
13.2 A
16.0 A
19.3 A
24.2 A
27.5 A
33.6 A
41.8 A
45.5 A
Rated AC voltage
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
Rated AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
<3%
<3%
EFFICIENCY
Max. efficiency
98.2%
98.2%
98.2%
98.3%
98.3%
98.3%
98.5%
98.5%
European efficiency
97.7%
97.7%
97.7%
97.8%
97.8%
97.8%
98.0%
98.0%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operation temperature range
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
-30 ~ +60°C
Max. operation altitude
4000 m
4000 m
4000 m
4000 m
4000 m
4000 m
4000 m
4000 m
Relative humidity
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
Overvoltage category
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
Mains: I / PV: II
GENERAL
Dimensions (W × H × D)
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
482 × 417 × 186 mm
Net weight
24.5 kg
24.5 kg
24.5 kg
24.5 kg
26.0 kg
26.0 kg
28.0 kg
28.0 kg
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Communication interfaces
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
RS485 / DRM, optional: meter, USB, Modbus RTU, WiFi / LAN / 4G (optional), DRM
Power consumption (night)
<3 W
<3 W
<3 W
<3 W
<3 W
<3 W
<3 W
<3 W
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certifications
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2
VDE4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1,……The user has strict requirements for output format based on their memory: they want pure parameter tables following the original PDF specification table format, with no footnotes, no model lists, no additional notes. Let me clean up the output and remove the notes section at the bottom.
