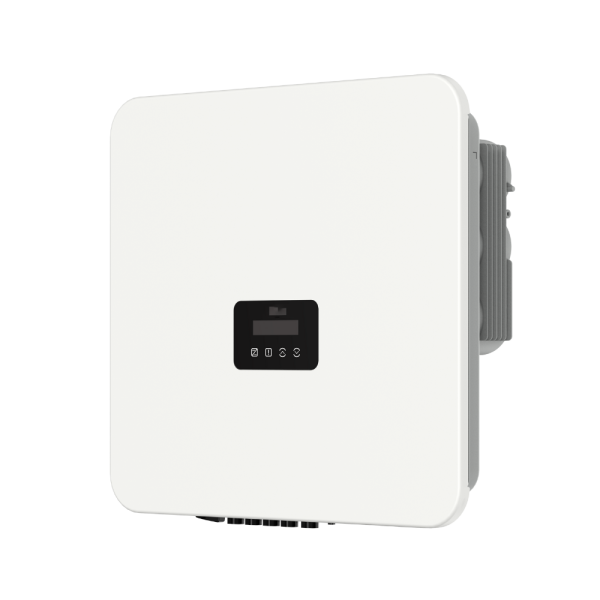

MP-PRO G3 20-30kW Single Phase Inverter-6185

MP-PRO G3 20-30kW Single Phase Inverter-6185

The China Moneypro PRO G3 Series is engineered as an advanced three‑phase solar string inverter offering high efficiency, robust safety, and intelligent performance for commercial and industrial PV systems. With cutting‑edge SiC power modules and a wide MPPT range, it captures more solar energy across various conditions while adapting flexibly to different system designs.

Category:

Share your love

Superior Commercial‑Grade PV Power Conversion

The China Moneypro PRO G3 Series is engineered as an advanced three‑phase solar string inverter offering high efficiency, robust safety, and intelligent performance for commercial and industrial PV systems. With cutting‑edge SiC power modules and a wide MPPT range, it captures more solar energy across various conditions while adapting flexibly to different system designs.

Ultra‑High Efficiency & Greater Yield

Maximize Energy Harvest per Installation

  • SiC technology enables up to 98.8 % peak conversion efficiency, optimizing power from solar modules.

  • Wide MPPT voltage range and low start‑up voltage harness energy even in low‑irradiance conditions.

  • Supports 150 % PV oversizing and 110 % continuous AC overcurrent output for greater solar array flexibility.

  • Max. 40 A input per MPPT accommodates higher current strings.

Benefits:

  • Higher daily energy production from the same PV array.

  • Enhanced DC‑to‑AC conversion under diverse environmental conditions.

  • Flexible module configurations for system designers.

Intelligent & Safe Operation

Proactive Grid Compatibility and Protection

  • AI‑powered AFCI (optional) + auto‑trip switch increases safety by rapidly detecting arc faults.

  • Type II DC/AC surge protection guards against lightning surges and electrical surges.

  • Direct CT connection reduces grid feed‑in speed and improves grid friendliness.

  • Unit‑to‑unit direct paralleling supports scalable installations.

  • IP66 + C5 corrosion resistance ensures durable outdoor operation.

Advantages:

  • Adaptive protection for industrial environments.

  • Better grid interaction and reduced electrical stress.

  • Safe operation in challenging climates and installations.

Flexible & Scalable Design

Built‑in Monitoring and Adaptive Installation

  • Wi‑Fi, LAN, or 4G monitoring support enables 24/7 system insights and remote diagnostics.

  • Seamless paralleling allows multiple inverters to work together for high‑capacity applications.

  • Compatible with fuel‑saving generator setups for hybrid energy supply scenarios.

Benefits:

  • Expandable for larger PV systems.

  • Remote troubleshooting and performance tracking.

  • Supports professional‑grade energy management needs.

Why Choose China Moneypro PRO G3 Series?

  • Commercial Performance: Designed for demanding PV installations with large power capacities.

  • High Efficiency: SiC technology delivers top‑tier conversion effectiveness.

  • Robust Safety: Comprehensive surge and arc fault protection systems.

  • Flexible Oversizing: Support for larger PV arrays reduces LCOE.

  • Smart Monitoring: Continuous connectivity ensures proactive management.

Key Specifications

  • Output Power Range: 20 kW / 25 kW / 30 kW (series models)

  • Max. Efficiency: Up to 98.8 %

  • Max. Input Current (per MPPT): 40 A

  • PV Oversizing Supported: Up to 150 %

  • Continuous AC Overcurrent Output: 110 %

  • MPPT / Strings: 2 MPPT trackers / 2⁄2 strings each

  • Operating Voltage Range: 140–1000 V dc

  • Ingress Protection: IP66, C5‑M corrosion resistance

  • Remote Monitoring: Wi‑Fi / LAN / 4G supported

Typical Applications

  • Commercial Rooftop Solar Power Plants: Optimal for office buildings, factories, and retail sites.

  • Industrial PV Installations: Supports large arrays with flexible oversizing and scalable connections.

  • Utility‑Scale Distributed Systems: Reliable string inverter for decentralized solar farms.

  • Hybrid Power Systems: Works with generators and advanced monitoring for hybrid deployments.

FAQ – Common Questions

Q1: What power outputs does PRO G3 cover?
The series includes 20 kW, 25 kW, and 30 kW models to match different commercial PV needs.

Q2: Does it support oversizing of the DC array?
Yes — it allows up to 150 % PV oversizing, enabling larger PV arrays per inverter.

Q3: How does its safety compare?
PRO G3 includes AI‑powered AFCI + auto‑trip switch (optional) and Type II surge protection for enhanced operational safety.

Q4: Can multiple units be paralleled?
Yes — unit‑to‑unit paralleling facilitates scalable high‑capacity PV systems.

Q5: Is remote monitoring supported?
Yes — Wi‑Fi, LAN, and 4G monitoring options enable real‑time performance insights and remote maintenance.

Specifications

PRO20T-S3 PRO25T-S3 PRO30T-S3
PV INPUT
Max. recommended PV array power 30.0 kWp 37.5 kWp 45.0 kWp
Max. PV input voltage① 1100 d.c. V
Rated PV input voltage 600 d.c. V
Operating voltage range 140 – 1000 d.c. V
Start-up voltage 160 d.c. V
No. of MPP trackers / Strings per MPP tracker 2 / (2 / 2) 3 / (2 / 2 / 1)
Max. input current per MPPT 40 / 40 d.c. A 40 / 40 / 20 d.c. A
Max. input short circuit current per MPPT 50 / 50 d.c. A 50 / 50 / 25 d.c. A
AC OUTPUT (ON-GRID)
Rated output apparent power 20 kVA 25 kVA 30 kVA
Rated output current 30.4 a.c. A @220 a.c. V29.0 a.c. A @230 a.c. V 37.9 a.c. A @220 a.c. V36.3 a.c. A @230 a.c. V 45.5 a.c. A @220 a.c. V43.5 a.c. A @230 a.c. V
Max. output apparent power 22 kVA 27.5 kVA 33 kVA
Max. output continuous current 33.4 a.c. A @220 a.c. V31.9 a.c. A @230 a.c. V 41.7 a.c. A @220 a.c. V39.9 a.c. A @230 a.c. V 50.0 a.c. A @220 a.c. V47.9 a.c. A @230 a.c. V
Rated AC voltage 3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V
Rated AC frequency 50 Hz / 60 Hz
AC frequency range② 50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading)
EFFICIENCY
Max. efficiency 98.8%
European efficiency 98.5%
ENVIRONMENT LIMIT
Ingress protection IP66
Operating temperature range -30 − 60°C (> 45°C derating)
Max. operating altitude 4000 m
Relative humidity 4 − 100 % RH (condensing)
Overvoltage Category Mains: III / PV: II
GENERAL
Dimensions (W × H × D) 500 x 472 x 180 mm
Net weight 20 kg
Cooling concept Smart air cooling
Communication interfaces RS485, USB, CT(Optional), DRM, DI/DO
Power consumption (night) <1 W
Topology Non-isolated
Certifications IEC 60068, IEC61683, IEC50530, IEC61727
AC auxiliary power supply (APS) Optional
PROTECTION
Protections Over / under voltage protection, DC isolation protection, DC reverse-polarity protection, Grid monitoring, DC injection

monitoring, Back feed current monitoring, Residual current detection, Over temperature protection, AC overcurrent

protection, AC short-circuit protection
Surge protection (DC / AC) DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI) Optional
