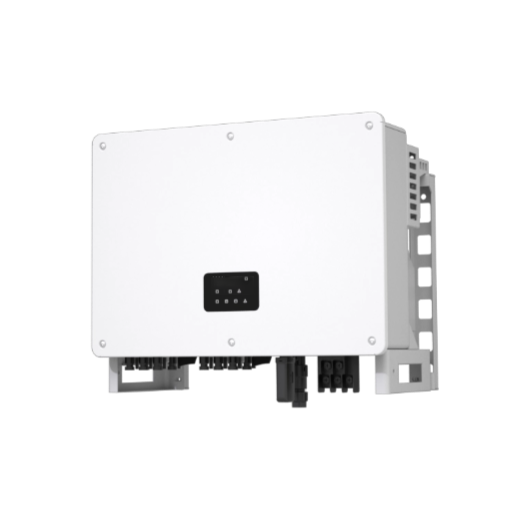

MP-X3-MEGA G2 | 40-60kW Three Phase C&I On-grid Invert-2181

MP-X3-MEGA G2 | 40-60kW Three Phase C&I On-grid Invert-2181

The China Moneypro X3‑MEGA G2 Series is a robust three‑phase solar inverter designed for high‑output PV energy systems. With a range of power variants and intelligent design, it delivers strong solar energy conversion, reliable performance, and flexible system design options suitable for commercial, industrial, and utility‑scale installations.

Category:

Share your love

Powerful, Efficient & Flexible Commercial Solar Inverter

The China Moneypro X3‑MEGA G2 Series is a robust three‑phase solar inverter designed for high‑output PV energy systems. With a range of power variants and intelligent design, it delivers strong solar energy conversion, reliable performance, and flexible system design options suitable for commercial, industrial, and utility‑scale installations.

High Energy Harvest & Smart Performance

Maximize Solar Power Generation

  • Delivers up to ~98.4 % efficiency to maximize energy conversion.

  • Supports 150 % PV oversizing input to capture more energy from oversized PV arrays.

  • Allows 110 % AC overloading output to meet peak load demands.

  • Wide 180‑1000 V DC MPPT voltage range with high current tracking for diverse PV configurations.

  • Up to 6 independent MPPTs, each supporting 2 strings, for flexible layout and maximum harvest.

Benefits:

  • Enhanced solar yield with efficient MPPT tracking.

  • Strong adaptability to large PV arrays and high power systems.

Intelligent Design & Operational Ease

Built‑In Smart Features

  • Built‑in export power control for grid compliance and export limitation.

  • Remote settings & upgrading support efficient system operation and maintenance.

  • Smart air cooling design improves fan longevity and reduces system size and weight.

  • I‑V curve diagnostics provide rapid insight into PV array performance.

  • Night‑time reactive power compensation enhances grid interaction and stability.

Benefits:

  • Smarter system monitoring and easier long‑term operation.

  • Reduced maintenance requirements with advanced design features.

Durable & Safe Construction

Commercial‑Grade Protection

  • IP66 protection rating for dust and water resistance in outdoor environments.

  • SPD protection (Type II) on both AC & DC sides for surge safety (optional).

  • Smart string current monitoring for system diagnostics and protection.

  • 24‑hour operation monitoring capabilities for continuous performance visibility.

Advantages:

  • Multiple safety layers for reliable and resilient operation.

  • Suitable for harsh outdoor and industrial installations.

Why Choose China Moneypro X3‑MEGA G2?

  • High Efficiency: Up to ~98.4 % conversion performance.

  • Flexible PV Integration: Wide MPPT range with multiple trackers and string support.

  • Scalable Design: Multiple power versions (40 kW / 50 kW / 60 kW) to fit system needs.

  • Smart Operation: Integrated export control, remote tuning, and intelligent diagnostics.

  • Commercial‑Grade Safety: IP66 protection and advanced surge safeguards.

Typical Applications

  • Commercial Solar Systems: Rooftop, ground‑mount, and business PV installations.

  • Industrial Solar Projects: High‑output power generation with strong stability.

  • Utility & Large‑Scale PV Plants: Flexible design for utility‑scale energy generation.

  • Smart & Monitored Systems: Integration with monitoring and diagnostics for optimized performance.

FAQ – Common Questions

Q1: What power ratings are available in the X3‑MEGA G2 series?
China Moneypro X3‑MEGA G2 is offered in 40 kW, 50 kW, and 60 kW versions.

Q2: How flexible is the PV configuration?
It supports up to 6 MPPTs, each with 2 strings per tracker, enabling flexible PV system layouts.

Q3: Is the inverter suitable for outdoor installation?
Yes — its IP66 protection rating ensures resistance to dust and water for rugged environments.

Q4: What smart features does this inverter include?
Includes built‑in export power control, remote upgrade support, I‑V curve diagnosis, and night‑time reactive power compensation for smarter operation.

Q5: What safety protections are built‑in?
Standard protections include IP66 ingress protection, SPD surge safeguards (Type II), and smart string current monitoring.

Specifications

Technical Data
X3-MGA-40K-G2
X3-MGA-50K-G2
X3-MGA-60K-G2
PV INPUT
Max. recommended PV array power
60 kWp
75 kWp
90 kWp
Max. PV input voltage
1100 V
1100 V
1100 V
Nominal PV input voltage
600 V
600 V
600 V
Operating voltage range
200 ~ 1000 V
200 ~ 1000 V
200 ~ 1000 V
MPPT voltage range
180 ~ 1000 V
180 ~ 1000 V
180 ~ 1000 V
Start-up voltage
200 V
200 V
200 V
No. of MPP trackers / Strings per MPP tracker
4 / 2
5 / 2
6 / 2
Max. input current per MPPT
32 A
32 A
32 A
Max. input short circuit current per MPPT
46 A
46 A
46 A
AC OUTPUT
Rated output power
40 kW
50 kW
60 kW
Rated output current
60.6 A @ 220V / 58 A @ 230V
75.8 A @ 220V / 72.5 A @ 230V
90.9 A @ 220V / 87 A @ 230V
Max. output apparent power
44 kVA
55 kVA
66 kVA
Max. output continuous current
66.7 A @ 220V / 63.8 A @ 230V
83.3 A @ 220V / 79.7 A @ 230V
100 A @ 220V / 95.7 A @ 230V
Nominal AC voltage
3 / (N) / PE, 220 / 380 V / 230 / 400 V
3 / (N) / PE, 220 / 380 V / 230 / 400 V
3 / (N) / PE, 220 / 380 V / 230 / 400 V
Nominal AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
< 3%
< 3%
< 3%
EFFICIENCY
Max. efficiency
98.4%
98.4%
98.4%
European efficiency
98.1%
98.1%
98.1%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
Operating ambient temperature range
-25 ~ +60°C
-25 ~ +60°C
-25 ~ +60°C
Max. operating altitude
4000 m
4000 m
4000 m
Relative humidity
0 ~ 100% RH
0 ~ 100% RH
0 ~ 100% RH
Overvoltage Category
Mains: III, PV: II
Mains: III, PV: II
Mains: III, PV: II
GENERAL
Dimensions (W × H × D)
630 × 521 × 286 mm
630 × 521 × 286 mm
630 × 521 × 286 mm
Net weight
44.0 kg
44.5 kg
45.5 kg
Cooling concept
Smart cooling
Smart cooling
Smart cooling
Communication interfaces
RS485, DRM, Meter
RS485, DRM, Meter
RS485, DRM, Meter
Power consumption (night)
< 2 W
< 2 W
< 2 W
Topology
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004, EN 50549, AS4777, VDE4105, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530
IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004, EN 50549, AS4777, VDE4105, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530
IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004, EN 50549, AS4777, VDE4105, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530
AC auxiliary power supply (APS)
Optional
Optional
Optional
PROTECTION
Protections
AC overcurrent protection, AC short-circuit protection, Protective class I
AC overcurrent protection, AC short-circuit protection, Protective class I
AC overcurrent protection, AC short-circuit protection, Protective class I
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Anti-PID
External
External
External
Protective class
I
I
I
