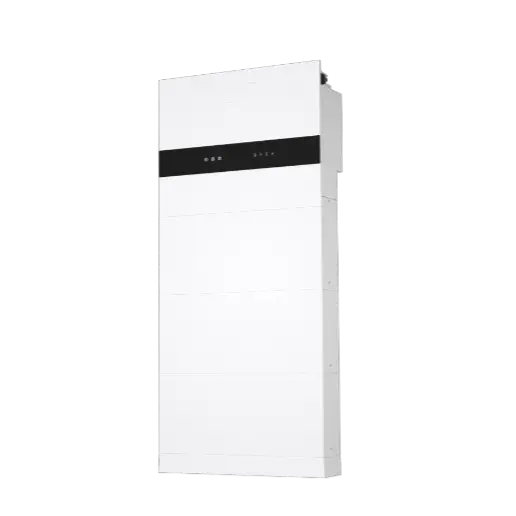

MP-X3-IES-A 4-15kW Three-phase Residential ESS-2398

MP-X3-IES-A 4-15kW Three-phase Residential ESS-2398

The China Moneypro X3-IES-A is an advanced three-phase integrated residential energy storage system designed to deliver seamless PV + storage performance for homes and small commercial sites. With flexible power options, intelligent energy management, and a modular battery platform, it maximizes solar self-consumption, supports backup power, and offers smart grid interaction — all in a robust, all-in-one solution.

Category:

Share your love

Smart, Efficient & Reliable Home Energy Storage

The China Moneypro X3-IES-A is an advanced three-phase integrated residential energy storage system designed to deliver seamless PV + storage performance for homes and small commercial sites. With flexible power options, intelligent energy management, and a modular battery platform, it maximizes solar self-consumption, supports backup power, and offers smart grid interaction — all in a robust, all-in-one solution.

High Performance & Flexible Power

Meets Diverse Load Requirements

  • Available in 5 kW, 10 kW, and 15 kW output variants to match different energy demands.

  • High charge/discharge current up to 50 A enables fast energy cycling and efficient PV utilization.

  • Supports 200 % PV oversizing to capture more solar energy from larger PV arrays.

Benefits:

  • Flexible sizing for residential systems of varying scale.

  • Greater energy capture and storage throughput.

  • Stronger performance under dynamic household loads.

Intelligent Solar + Storage Management

Optimize Energy for Greater Savings

  • Built-in AI-powered energy management forecasts solar production and household consumption for optimized dispatch.

  • VPP-ready support and cloud connectivity enable integration with smart grid services such as demand response (IEEE2030.5, OpenADR).

  • Supports intelligent load management (e.g., heat pumps, EV chargers) and 24/7 TOU strategy to reduce peak costs.

Advantages:

  • Improved energy economics with smart scheduling.

  • Enhanced self-consumption and peak shaving.

  • Flexible grid interaction and future-proof energy control.

Reliable Backup & Fast Switch

Uninterrupted Power When Needed

  • UPS-level switchover (< 10 ms) helps ensure continuous power to critical loads during outages.

  • Supports up to 200 % EPS overload for 10 s, offering strong transient support for heavy appliances.

Benefits:

  • Maintains important loads in grid interruptions.

  • Quick response helps protect sensitive devices.

Durable & Weather-Ready

Built for Real-World Conditions

  • IP66 protection class provides robust resistance against dust and water — suitable for sheltered outdoor installation.

  • Battery heating technology enables reliable operation even in cold climates (down to −30 °C).

  • Multi-layer protection (including optional AFCI and SPD Type II) enhances safety for daily use.

Advantages:

  • Durable operation under varied environmental conditions.

  • Enhanced system safety and longevity.

Why Choose China Moneypro X3-IES-A?

  • Flexible Power Range: 5/10/15 kW options suit different household needs.

  • High Solar Utilization: 200 % PV oversizing and high DC input current.

  • Smart Energy Management: AI-driven cloud support and smart TOU scheduling.

  • Reliable Backup: UPS-level fast switchover with EPS overload capability.

  • Robust & Safe: IP66 enclosure, optional AFCI, and cold-climate battery heating.

Key Specifications (Representative Models)

Model Rated AC Power Max AC Current Rated AC Voltage Battery Voltage Range Protection
X3-IES-5K-A ~5 kW 8 A 3P4W, 380/400 V 160 – 800 V IP66
X3-IES-10K-A ~10 kW 14.5 A 3P4W, 380/400 V 160 – 800 V IP66
X3-IES-15K-A ~15 kW 24 A 3P4W, 380/400 V 160 – 800 V IP66

Battery modules are modular (e.g., 10–60 kWh) depending on configuration. Li-ion (LFP) chemistry is used for safety and stability.

Typical Applications

  • Residential Solar + Storage: Store excess PV energy for evening use.

  • Backup Power Support: Reliable essential load power in grid outages.

  • Tariff & Cost Optimization: Smart TOU scheduling to reduce electricity expenses.

  • Smart Home Energy: Integrate with EV chargers, heat pumps, and smart devices.

FAQ – Common Questions

Q1: What power options are available in this series?
Available in 5 kW, 10 kW, and 15 kW three-phase variants to match different household or small commercial demands.

Q2: Can the system support large PV arrays?
Yes — it supports up to 200 % PV oversizing, enabling larger rooftop arrays for more solar capture.

Q3: What safety features does it include?
It includes IP66 protection, optional AFCI, and Type II SPD for robust safety.

Q4: How quickly does it switch to backup power?
The system supports UPS-level switchover in < 10 ms to maintain continuous power delivery.

Q5: Is this suitable for cold climates?
Yes — battery heating technology enables reliable operation even in cold environments down to about −30 °C.

Specifications

Technical Data
X3-IES-5K-A
X3-IES-10K-A
X3-IES-15K-A
INPUT AC
Nominal AC Power (VA)
5000
10000
15000
Max. AC Current (A)
8
14.5
24
Rated Grid Frequency (Hz)
50 / 60
50 / 60
50 / 60
Power Factor
Adjustable from 0.8 leading to 0.8 lagging
Adjustable from 0.8 leading to 0.8 lagging
Adjustable from 0.8 leading to 0.8 lagging
OUTPUT AC (On-Grid)
Nominal AC Power (VA)
5000
10000 (AS4777: 9997)
15000
Max. Apparent AC Power (VA)
5500
10000 (AS4777: 9999)
16500
Rated Grid Voltage (AC Voltage Range)
3P4W, 380 / 400 V
3P4W, 380 / 400 V
3P4W, 380 / 400 V
Rated Grid Frequency (Hz)
50 / 60
50 / 60
50 / 60
Rated AC Output Current (A)
7.3
14.5
21.8
Max. AC Current (A)
8.4
15.2
25
Displacement Power Factor
Adjustable from 0.8 leading to 0.8 lagging
Adjustable from 0.8 leading to 0.8 lagging
Adjustable from 0.8 leading to 0.8 lagging
THDi
<3%
<3%
<3%
BATTERY
Battery Voltage Range (V)
160 ~ 800
160 ~ 800
160 ~ 800
Communication Interfaces
CAN / RS485
CAN / RS485
CAN / RS485
BMS Module
TBMS-MCS0800E
TBMS-MCS0800E
TBMS-MCS0800E
Battery Module
TP-HS50E
TP-HS50E
TP-HS50E
Composition
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
TBMS-MCS0800E + TP-HS50E × n + Base Dimensions + Series Box (Required for two columns)
Battery Type
Li-ion (LFP)
Li-ion (LFP)
Li-ion (LFP)
Nominal Capacity (kWh) / Nominal Capacity (Ah)
5.1 / 50
5.1 / 50
5.1 / 50
Usable Energy (kWh)
4.6
4.6
4.6
Standard Power (kW)
3
3
3
Max. Power (kW)
5.1
5.1
5.1
Max. Charge / Discharge Current (A)
50
50
50
Cycle Life (Cycles)
>6000
>6000
>6000
Warranty (Years)
10
10
10
Safety
CE, RCM, TÜV (IEC62619), ROHS, REACH
CE, RCM, TÜV (IEC62619), ROHS, REACH
CE, RCM, TÜV (IEC62619), ROHS, REACH
TBMS-MCS0800E Dimensions (W × H × D mm) / Weight (kg)
730 × 165 × 150 / 9.3
730 × 165 × 150 / 9.3
730 × 165 × 150 / 9.3
TP-HS50E Dimensions (W × H × D mm) / Weight (kg)
730 × 318 × 150 / 47
730 × 318 × 150 / 47
730 × 318 × 150 / 47
Base Dimensions (W × H × D mm) / Weight (kg)
730 × 75 × 150 / 3.9
730 × 75 × 150 / 3.9
730 × 75 × 150 / 3.9
Series Box Dimensions (W × H × D mm) / Weight (kg)
167 × 91.5 × 121 / 1.3
167 × 91.5 × 121 / 1.3
167 × 91.5 × 121 / 1.3
GENERAL DATA (INVERTER)
Dimensions (W × H × D mm)
717 × 405 × 209.5
717 × 405 × 209.5
717 × 405 × 209.5
Operating Temperature Range (°C)
-35 ~ +60 (derating at +45)
-35 ~ +60 (derating at +45)
-35 ~ +60 (derating at +45)
Protection Class
IP66
IP66
IP66
Relative Humidity (%)
0 ~ 100 (condensing)
0 ~ 100 (condensing)
0 ~ 100 (condensing)
Storage Temperature (°C)
-40 ~ +65
-40 ~ +65
-40 ~ +65
Noise Emission (Typical) dB(A)
<33
<33
<33
PROTECTION
AFCI
Optional
Optional
Optional
SPD
Type II, AC
Type II, AC
Type II, AC
STANDARD
Safety
IEC62477 / IEC62109-1 / IEC62109-2
IEC62477 / IEC62109-1 / IEC62109-2
IEC62477 / IEC62109-1 / IEC62109-2
EMC
EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3
EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3
EN 61000-6-1 / EN 61000-6-2 / EN 61000-6-3
Certification
VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
