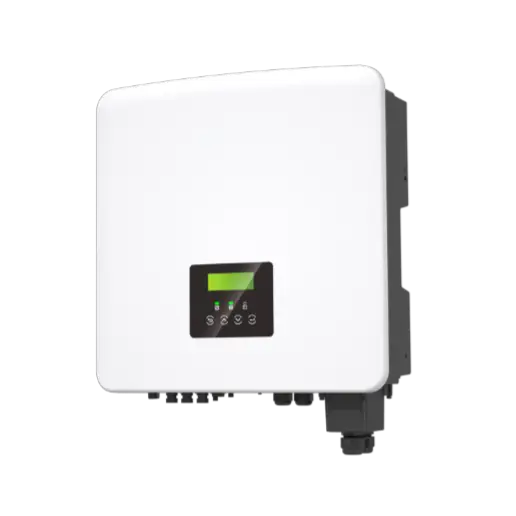

MP-X3-HYBRID G4-6152

MP-X3-HYBRID G4-6152

The China Moneypro X3‑Hybrid‑G4 Series is a high‑performance three‑phase hybrid solar inverter engineered for modern residential and commercial solar + storage applications. It seamlessly integrates PV generation, energy storage, and grid interaction with intelligent control, flexible battery compatibility, and robust reliability — unlocking higher self‑consumption, reliable backup power, and advanced energy management.

Category:

Share your love

Smart, Efficient & Flexible Solar + Storage Inverter

The China Moneypro X3‑Hybrid‑G4 Series is a high‑performance three‑phase hybrid solar inverter engineered for modern residential and commercial solar + storage applications. It seamlessly integrates PV generation, energy storage, and grid interaction with intelligent control, flexible battery compatibility, and robust reliability — unlocking higher self‑consumption, reliable backup power, and advanced energy management.

High Performance & Solar Maximization

Optimized PV & Charging Efficiency

  • Supports up to 200 % PV oversizing to capture more energy from oversized PV arrays.

  • Up to 110 % AC overload output for short durations to handle dynamic loads.

  • Charging and discharging efficiencies up to ~97.5 % for efficient energy flow.

  • Built‑in shadow tracking enhances PV performance under uneven light conditions.

Benefits:

  • Higher solar yield and improved energy utilization.

  • Strong performance under varied PV conditions and dynamic loads.

Reliable Backup & Dynamic Load Support

Seamless Switching & EPS Support

  • EPS (Emergency Power Supply) output up to ~150 % of rated capacity for short durations.

  • Fast switchover time < 10 ms for uninterrupted backup power.

  • Full on‑grid and off‑grid parallel functionality — supports up to ~150 kW parallel capacity.

Advantages:

  • Reliable UPS‑like performance during outages.

  • Scalable to support larger hybrid systems and higher output requirements.

Intelligent Operation & Compatibility

Smart Controls for Energy Management

  • Compatible with both lithium‑ion and lead‑acid batteries — flexible energy storage options.

  • CT‑compatible load detection enables intelligent response within ~0.3 s.

  • Multiple work modes and dual charging periods allow tailored energy strategies.

  • On‑grid/off‑grid VPP‑ready operation unlocks future‑ready value streams.

Benefits:

  • Smart prioritization of loads and optimized energy dispatch.

  • Flexible system behavior across grid‑connected, independent, or hybrid scenarios.

Robust & Durable Design

Built for Real‑World Conditions

  • IP65 ingress protection makes the inverter suitable for a wide range of installation environments.

  • Type II SPD (surge protection) on both DC and AC sides enhances electrical safety.

  • Compact and lightweight housing simplifies installation and service.

Advantages:

  • Reliable protection against dust and water ingress.

  • Integrated safety measures for long‑term operation.

Why Choose China Moneypro X3‑Hybrid‑G4?

  • High Solar Capture: Up to 200 % PV oversizing and built‑in shadow tracking.

  • Efficient Energy Flow: Charging/discharging efficiency up to ~97.5 %.

  • Fast Backup Performance: < 10 ms switchover and high EPS capacity.

  • Flexible Compatibility: Works with lithium and lead‑acid batteries.

  • Scalable & Intelligent: Parallel capacity up to ~150 kW and smart load control.

Typical Applications

  • Residential & Commercial Solar + Storage: Seamless integration of PV and batteries for self‑consumption optimization.

  • Backup Power Solutions: Reliable emergency power and load support during outages.

  • Hybrid Energy Systems: On/off‑grid operation with scalable parallel configurations.

  • Advanced Energy Management: Smart load control, VPP readiness, and time‑of‑use strategies.

FAQ – Common Questions

Q1: What power ratings are available in this series?
China Moneypro X3‑Hybrid‑G4 supports 5 kW, 6 kW, 8 kW, 10 kW, 12 kW and 15 kW variants to fit diverse residential and commercial needs.

Q2: Does X3‑Hybrid‑G4 support backup power?
Yes — the inverter offers EPS output up to ~150 % of rated power and < 10 ms switchover for uninterrupted backup.

Q3: What batteries are compatible?
It is compatible with both lithium‑ion and lead‑acid batteries, enabling flexible storage configurations.

Q4: Can multiple units be paralleled?
Yes — the X3‑Hybrid‑G4 can operate in parallel (up to ~150 kW) for expanded capacity.

Q5: How does the inverter improve solar utilization?
Through up to 200 % PV oversizing, built‑in shadow tracking, and smart energy management strategies, the system maximizes PV harvest and self‑consumption.

Specifications

Parameter X3‑HYBRID‑5.0‑D X3‑HYBRID‑6.0‑D X3‑HYBRID‑8.0‑D X3‑HYBRID‑10.0‑D X3‑HYBRID‑12.0‑D X3‑HYBRID‑15.0‑D
PV INPUT
Max. recommended PV array power 6 kWp 8 kWp 10 kWp 12 kWp 14 kWp 18 kWp
Max. PV input voltage ※ 1000 V 1000 V 1000 V 1000 V 1000 V 1000 V
Rated PV input voltage 640 V 640 V 640 V 640 V 640 V 640 V
MPPT voltage range ※※ 180 ~ 950 V 180 ~ 950 V 180 ~ 950 V 180 ~ 950 V 180 ~ 950 V 180 ~ 950 V
Start‑up voltage 200 V 200 V 200 V 200 V 200 V 200 V
No. of MPP trackers / strings per MPPT 2 (1/1) 2 (2/1) 2 (2/1) 2 (2/1) 2 (2/1) 2 (2/1)
Max. input current per MPPT ※※※ 16 A/16 A 28 A/16 A 35 A/20 A 35 A/20 A 35 A/20 A 35 A/20 A
Max. input short‑circuit current per MPPT 20 A/20 A 28 A/16 A 35 A/20 A 35 A/20 A 35 A/20 A 35 A/20 A
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 5 kW 6 kW 8 kW 10 kW 12 kW 15 kW
Rated output current 7.2 A 8.7 A 11.6 A 14.5 A 17.5 A 21.8 A
Max. output apparent power 5.5 kVA 6.6 kVA 8.8 kVA 11.0 kVA 13.2 kVA 15.0 kVA
Max. continuous output current 8.1 A 9.7 A 12.9 A 16.1 A 19.3 A 24.1 A
Rated AC voltage 3 / N / PE, 220 / 380 V 3 / N / PE, 220 / 380 V 3 / N / PE, 220 / 380 V 3 / N / PE, 220 / 380 V 3 / N / PE, 220 / 380 V 3 / N / PE, 220 / 380 V
Max. AC input apparent power 22 kVA 22 kVA 20 kVA 16 kVA 12 kVA 10 kVA
Max. AC input current 32.0 A 32.0 A 32.0 A 25.8 A 19.3 A 16.1 A
Rated AC frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
Adjustable power factor range ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading) ~1 (0.8 lagging to 0.8 leading)
THDi (rated power) <3% <3% <3% <3% <3% <3%
BATTERY
Battery type Lithium Lithium Lithium Lithium Lithium Lithium
Battery voltage range ※※※※ 120 ~ 800 V 120 ~ 800 V 120 ~ 800 V 120 ~ 800 V 120 ~ 800 V 120 ~ 800 V
Max. charge/discharge current 30 A 30 A 30 A 30 A 30 A 30 A
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency 230 V / 400 V, 50 / 60 Hz 230 V / 400 V, 50 / 60 Hz 230 V / 400 V, 50 / 60 Hz 230 V / 400 V, 50 / 60 Hz 230 V / 400 V, 50 / 60 Hz 230 V / 400 V, 50 / 60 Hz
Rated EPS output power
Peak EPS output power 22.5 kVA, 10 s 22.5 kVA, 10 s 22.5 kVA, 10 s 18.0 kVA, 10 s 22.5 kVA, 10 s —
Switchover time <10 ms <10 ms <10 ms <10 ms <10 ms <10 ms
EFFICIENCY
Max. efficiency 98.0% 98.0% 98.0% 98.0% 98.0% 98.0%
European efficiency 97.7% 97.7% 97.7% 97.7% 97.7% 97.7%
ENVIRONMENT LIMIT
Ingress protection IP65 IP65 IP65 IP65 IP65 IP65
Operation temperature range –35 ~ +60 °C (>45 °C derating) –35 ~ +60 °C (>45 °C derating) –35 ~ +60 °C (>45 °C derating) –35 ~ +60 °C (>45 °C derating) –35 ~ +60 °C (>45 °C derating) –35 ~ +60 °C (>45 °C derating)
Max. operation altitude 3000 m 3000 m 3000 m 3000 m 3000 m 3000 m
Relative humidity 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing) 4 ~ 100% RH (condensing)
Overvoltage category Mains: III / Battery: II / PV: II Mains: III / Battery: II / PV: II Mains: III / Battery: II / PV: II Mains: III / Battery: II / PV: II Mains: III / Battery: II / PV: II Mains: III / Battery: II / PV: II
GENERAL
Dimensions (W × H × D) 503 × 199 × 503 mm 503 × 199 × 503 mm 503 × 199 × 503 mm 503 × 199 × 503 mm 503 × 199 × 503 mm 503 × 199 × 503 mm
Net weight 30 ± 1 kg 30 ± 1 kg 30 ± 1 kg 30 ± 1 kg 30 ± 1 kg 30 ± 1 kg
Cooling concept Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling Natural cooling / Smart air cooling
Communication interfaces CT / Meter (optional), External control RS485, Pocket WiFi (Optional), DRM, NTC (optional) same same same same same
Power consumption (night) <40 W (standby), <5 W (idle) <40 W (standby), <5 W (idle) <40 W (standby), <5 W (idle) <40 W (standby), <5 W (idle) <40 W (standby), <5 W (idle) <40 W (standby), <5 W (idle)
Topology Non‑isolated Non‑isolated Non‑isolated Non‑isolated Non‑isolated Non‑isolated
Certifications EN/IEC62109‑1/-2, VDE4105, G99, G98, AS4777, EN50549, IEC61727, PEA/MEA, NRS‑097‑2‑1, RD1699, TOR same same same same same
