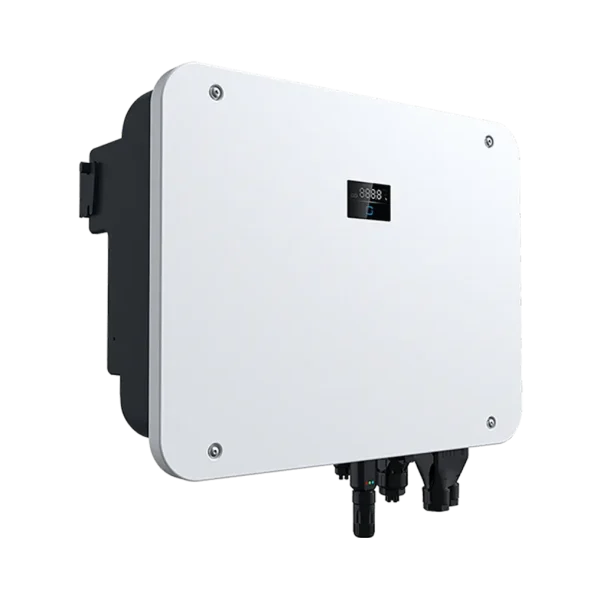

MP-15~25kW SH15/20/25T Hybrid Three Phase Inverter-5516

MP-15~25kW SH15/20/25T Hybrid Three Phase Inverter-5516

3-Phase Hybrid Inverter

The SH15/20/25T hybrid inverter delivers scalable, high-capacity solar energy management for larger residences and small commercial setups. It ensures reliable on/off-grid operation, seamless power delivery, and intelligent energy management for demanding energy loads. With enhanced output capacity, you can power multiple appliances simultaneously without worrying about interruptions or system strain.

Category:

Share your love

Energy Freedom for Larger Homes

The SH15/20/25T hybrid inverter delivers scalable, high-capacity solar energy management for larger residences and small commercial setups. It ensures reliable on/off-grid operation, seamless power delivery, and intelligent energy management for demanding energy loads. With enhanced output capacity, you can power multiple appliances simultaneously without worrying about interruptions or system strain.

High Yield & Maximum Energy Capture

Optimize Every Sunray

  • Multiple MPPTs and string inputs accommodate complex rooftops and diverse module orientations.

  • Supports larger and numerous PV modules, with a 200% DC/AC ratio for maximum energy capture.

  • High-current inputs (16A) ensure efficient operation even with high-capacity modules.

Benefits:

  • Maximizes energy harvest for larger residential and small business applications.

  • Adaptable to multi-string configurations and complex roof layouts.

  • Improves overall energy efficiency and ROI for solar investments.

Seamless Power Delivery

Reliable Energy When You Need It

  • 0ms transfer time guarantees uninterrupted power during grid failures.

  • High output capacity allows multiple high-power appliances to operate simultaneously.

  • Smooth on/off-grid transition ensures comfort and continuity.

Advantages:

  • Zero downtime during grid outages.

  • Full support for household or small business energy load.

  • Maintains energy quality for sensitive electronics.

Built for Durability & Safety

Engineered to Last Outdoors

  • IP65/C5-rated for resistance to water, dust, and corrosion.

  • AFCI2.0 arc fault protection minimizes fire risks, with 200ms shutdown for arc faults.

  • Ensures safe and long-term operation even under extreme environmental conditions.

Benefits:

  • Long-lasting reliability for residential and commercial rooftops.

  • Protects system and premises from electrical hazards.

  • Compliant with international safety and performance standards.

Flexible Home & Business Applications

Scalable & Adaptable

  • Modular design allows expansion for larger homes or small business installations.

  • Compatible with various PV module types and battery configurations.

  • Supports both retrofit and new installation projects.

Advantages:

  • Tailored solutions for higher energy demands.

  • Flexible hybrid system for on/off-grid scenarios.

  • Scalable capacity ensures future-proof energy management.

Smart Monitoring & O&M

Intelligent Remote Management

  • Integrated iSolarCloud enables real-time monitoring and control.

  • Module-level diagnostics and energy production tracking simplify maintenance.

  • Remote firmware updates and O&M alerts reduce operational effort.

Advantages:

  • Quickly identify performance issues and optimize output.

  • Reduces operational and maintenance costs.

  • Full visibility and control of PV & ESS system from a smartphone.

Why Choose SH15/20/25T?

  • Seamless Power: 0ms transfer for uninterrupted on/off-grid operation.

  • High Efficiency: Multiple MPPTs and high DC/AC ratio maximize energy output.

  • Durable & Safe: IP65/C5 protection and AFCI2.0 safeguard the system.

  • Flexible & Scalable: Modular design adapts to larger homes and small businesses.

  • Smart Monitoring: iSolarCloud integration for intelligent remote O&M.

Key Specifications

  • Max. PV Input Voltage: 1000 V

  • Rated AC Output Power: 15~25 kW

  • Rated AC Voltage: 400 V

  • Max. Efficiency: 98.2%

Typical Applications

  • Larger Residential Rooftops: Supports multiple appliances with hybrid solar-battery systems.

  • Small Commercial Loads: Flexible power capacity for offices, shops, and light commercial use.

  • On/Off-Grid Scenarios: Smooth power transition during outages or grid fluctuations.

  • Harsh Environments: Durable, outdoor-ready design with IP65/C5 protection and AFCI2.0 safety.

FAQ – Common Questions

Q1: How fast is the SH15/20/25T in switching to backup power?
0ms transfer ensures continuous power during outages.

Q2: Can it handle large PV arrays?
Yes, it supports larger and multiple modules, with 16A current input per string.

Q3: Is it safe for outdoor installation?
Absolutely. Rated IP65/C5 and equipped with AFCI2.0 arc fault protection.

Q4: Can it integrate with batteries?
Yes, fully compatible with energy storage systems for on/off-grid hybrid applications.

Q5: How can I monitor system performance?
Through iSolarCloud, enabling real-time monitoring, diagnostics, and remote management via smartphone.

Specifications

Type designation Input (DC) SH15TSH20TSH25T
Recommended max. PV input power 30000 Wp40000 Wp50000 Wp
Max. PV input voltage * 1000 V
Min. PV input voltage / Startup input voltage 150 V / 180 V
Rated PV input voltage 600 V
MPPT operating voltage range ** 150 V – 950 V
No. of independent MPP trackers 3
No. of PV strings per MPPT 2 / 2 / 1
Max. PV input current 80 A ( 32 A / 32 A / 16 A )
Max. DC short-circuit current 100 A ( 40 A / 40 A / 20 A )
Max. current for input connector 30 A
Battery data
Battery type Li-ion battery
Battery voltage range 100 V – 700 V
Max. charge / discharge current *** 50 A / 50 A
Max. charge / discharge power 30000 W / 15000 W30000 W / 20000 W30000 W / 25000 W
Input and Output (AC)
Max. AC power from grid **** 43000 VA
Rated AC output power 15000 W20000 W25000 W
Max. AC output apparent power 15000 VA20000 VA25000 VA
Max. AC output current 22.8 A30.4 A37.9 A
Rated AC voltage 3 / N / PE, 220 V / 380 V ; 230 V / 400 V; 240 V / 415 V
AC voltage range 270 V – 480 V
Rated grid frequency 50 Hz / 60 Hz
Grid frequency range 45 Hz – 55 Hz / 55 Hz – 65 Hz
Harmonic (THD) < 3 %  ( of rated power )
Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading to 0.8 lagging
Feed-in phases / connection phases 3 / 3-N-PE
Backup data(on grid mode)
Max. output power for backup load **** 43000 W
Max. output current for backup load 3 * 63 A
Backup data(off-grid mode)
Rated voltage 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V ( ± 2 % )
Rated frequency 50 Hz / 60 Hz ( ± 0.2 % )
THDV ( @Linear load ) 2 %
Backup switch time < 10 ms
Rated output power 15000 W / 15000 VA20000 W / 20000 VA25000 W / 25000 VA
Peak output power ***** 25500 W /

25500 VA ,10 s

 32000 W /

32000 VA ,10 s

 36500 W /

36500 VA ,10 s
Effciency
Max. effciency / European effciency 98.1 % / 97.6 % 98.2 % / 97.8 %
Protection & Function
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
DC switch (solar) Yes
Surge protection DC Type II / AC Type II
PID zero Yes
Battery input reverse polarity protection Yes
General data
Topology (solar / battery) Transformerless / Transformerless
Degree of protection IP65
Dimensions (W * H * D) 620 mm * 480 mm * 245 mm
Weight 38 kg 40 kg
Mounting method Wall-mounting bracket
Operating ambient temperature range -25 ℃ – 60 ℃
Allowable relative humidity range(Non-condensing) 0 % – 100 %
Cooling method Natural convection Fan cooling
Max. operating altitude 2000 m
Noise(Typical) 35 dB ( A ) 50 dB ( A )
Display LED
Communication RS485, WLAN, Ethernet, CAN
DI / DO DI * 4 / DO * 2 / DRM0
DC connection type MC4 compatible connector ( PV,Max.6 mm² ) /Plug and play connector ( battery, Max.10 mm² )
AC connection type Plug and play connector ( Max.16 mm² )
Compliance IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11,

VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21
*InputvoltageexceedingtheMPPToperatingvoltage

**PleaserefertotheusermanualforthefullloadM

*** Depending on the connected battery

 rangetriggersinverterprotection PPTvoltagerange
