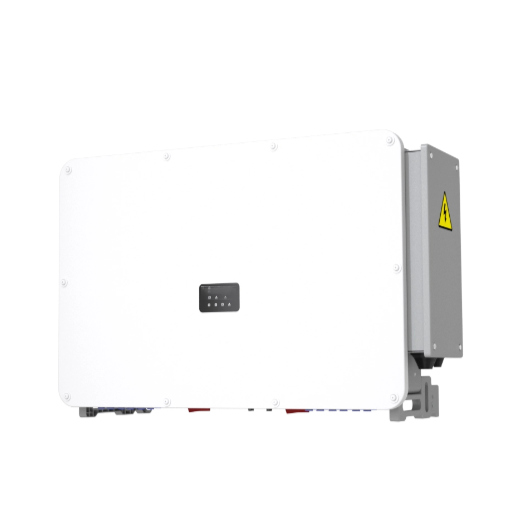

MP-X3-FORTH PLUS |120-150kW Three Phase Inverter-346

MP-X3-FORTH PLUS |120-150kW Three Phase Inverter-346

The China Moneypro X3‑FORTH PLUS Series is a durable three‑phase string solar inverter engineered to deliver high efficiency, robust performance, and low‑maintenance operation for commercial, industrial, and large‑scale solar installations. With intelligent design features, strong adaptability to challenging installations, and advanced safety protections, it provides stable power generation and efficient PV energy utilization for demanding environments.

Category:

Share your love

Powerful, Reliable & Flexible Commercial Solar Inverter

The China Moneypro X3‑FORTH PLUS Series is a durable three‑phase string solar inverter engineered to deliver high efficiency, robust performance, and low‑maintenance operation for commercial, industrial, and large‑scale solar installations. With intelligent design features, strong adaptability to challenging installations, and advanced safety protections, it provides stable power generation and efficient PV energy utilization for demanding environments.

Intelligent Design & Low‑Maintenance

Built for Long‑Term Use

  • Fan self‑cleaning system significantly reduces maintenance needs.

  • Night‑time SVG voltage regulation support enhances system stability.

  • Remote setting and firmware upgrades support streamlined operations.

  • 24‑hour system monitoring enables proactive performance insights.

Benefits:

  • Simplified maintenance and higher operational availability.

  • Real‑time monitoring and remote control capability for large systems.

High Efficiency & Solar Utilization

Maximize PV Power Generation

  • Delivers up to ~98.6 % efficiency for strong energy conversion.

  • Up to 200 % PV oversizing supports larger PV arrays relative to inverter power.

  • Wide 180‑1000 V DC input range and high current per tracker support diverse PV modules.

Advantages:

  • Higher energy yield and improved PV integration.

  • Reliable performance across varied environmental conditions.

Flexible & Adaptable System Architecture

Designed for Complex Installations

  • 6 independent MPPTs, each supporting multiple strings for flexible layout.

  • Supports high‑altitude operation up to 5000 m, making it suitable for diverse geographies.

  • Optional Power Line Communication (PLC) and Anti‑PID protection available.

Benefits:

  • High PV string configurability and system expansion flexibility.

  • Adapts to challenging installation environments with stability.

Strong Safety & Environmental Protection

Built‑In Protection Features

  • IP66 ingress protection for dust and water resistance in outdoor settings.

  • AFCI support (optional) and AC terminal over‑temperature detection enhance safety.

  • Automatic DC switch tripping for electrical fault prevention.

  • Type II SPD protection on AC and DC sides for surge protection.

Advantages:

  • Comprehensive electrical and environmental safety layers.

  • Peace of mind in demanding commercial applications.

Why Choose China Moneypro X3‑FORTH PLUS?

  • High Efficiency: ~98.6 % efficiency with strong energy harvest.

  • Flexible PV Support: 6 MPPTs and high current per tracker for diverse arrays.

  • Low Maintenance: Self‑cleaning fan and remote upgrade capability.

  • Commercial‑Grade Durability: IP66 protection and high altitude operability.

  • Advanced Safety: Enhanced electrical protections for reliable operation.

Typical Applications

  • Commercial Solar Systems: Ideal for rooftop, ground‑mount and business installations.

  • Industrial Solar Projects: Designed for large‑capacity PV generation with demanding uptime.

  • Utility & C&I PV Farms: Strong scalability for large energy production sites.

  • Hybrid or Storage‑Ready Scenarios: Can integrate with additional storage or management systems.

FAQ – Common Questions

Q1: What power ratings are available for the X3‑FORTH PLUS series?
China Moneypro X3‑FORTH PLUS is available in 120 kW, 125 kW, 136 kW, and 150 kW variants.

Q2: How many MPPTs does this inverter have?
It features 6 independent MPPTs for flexible PV string configuration.

Q3: Can this inverter operate in high‑altitude environments?
Yes — it supports operation at altitudes up to 5000 m, adapting to a range of geographical conditions.

Q4: What protection features are included?
Standard safety features include IP66 ingress protection, AFCI (optional), automatic DC switch tripping, and surge protection (Type II SPD).

Q5: Is this model suitable for commercial & industrial installations?
Yes — with its high power range, multiple MPPTs, and robust design, it’s ideal for commercial, industrial, and large‑scale PV systems.

Specifications

Technical Data
MP-X3-Forth Plus-5K
MP-X3-Forth Plus-6K
MP-X3-Forth Plus-8K
MP-X3-Forth Plus-10K
MP-X3-Forth Plus-12K
MP-X3-Forth Plus-15K
PV INPUT
Max. recommended PV array power
10 kWp
12 kWp
16 kWp
20 kWp
24 kWp
30 kWp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
Rated PV input voltage
600 V
600 V
600 V
600 V
600 V
600 V
Operating voltage range
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
MPPT voltage range
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
Start-up voltage
140 V
140 V
140 V
140 V
140 V
140 V
No. of MPP trackers / Strings per MPP tracker
2 / (1/1)
2 / (1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
Max. input current per MPPT (MPPT1/2/3)
20 A / 20 A
20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
Max. input short circuit current per MPPT
25 A / 25 A
25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
AC INPUT & OUTPUT (ON-GRID)
Rated output power
5000 W
6000 W
8000 W
10000 W
12000 W
15000 W
Rated output current
7.3 A
8.7 A
11.6 A
14.5 A
17.4 A
21.8 A
Max. output apparent power
5500 VA
6600 VA
8800 VA
10000 VA
13200 VA
16500 VA
Max. output continuous current
8.4 A
10 A
13.4 A
15.2 A
20.0 A
25.0 A
Rated AC voltage
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
Max. AC input apparent power
10 kVA
12 kVA
16 kVA
20 kVA
20 kVA
20 kVA
Max. AC input current
16.1 A
19.3 A
25.8 A
32.0 A
32.0 A
32.0 A
Rated AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
BATTERY
Battery type
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Battery voltage range
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
Max. charge / discharge current
60 A
60 A
60 A
60 A
60 A
60 A
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
Rated EPS output power
5 kVA
6 kVA
8 kVA
10 kVA
12 kVA
15 kVA
Peak EPS output power
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
Switchover time
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
EFFICIENCY
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
Operating ambient temperature range
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
Overvoltage category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
GENERAL
Dimensions (W × H × D)
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
Net weight
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Communication interfaces
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
Power consumption (night)
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
AC auxiliary power supply (APS)
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
PROTECTION
Protections
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
Optional
