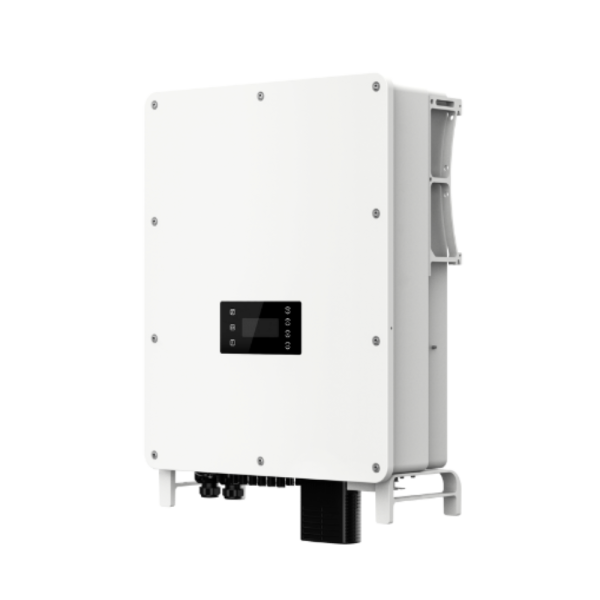

MP-X3-AELIO 49.9-61kW Three Phase Hybrid Solar Inverter-9553

MP-X3-AELIO 49.9-61kW Three Phase Hybrid Solar Inverter-9553

The China Moneypro X3‑AELIO Series is a robust three‑phase hybrid solar inverter engineered for high efficiency, intelligent energy management, and scalable performance. Designed to support both grid‑connected and off‑grid operation, this inverter enables seamless backup power, advanced load control, and flexible system expansion. It’s ideal for commercial solar installations, large residential systems, micro‑grid projects, and hybrid energy scenarios.

Category:

Share your love

Intelligent, Scalable & Efficient Hybrid Solar Solution

The China Moneypro X3‑AELIO Series is a robust three‑phase hybrid solar inverter engineered for high efficiency, intelligent energy management, and scalable performance. Designed to support both grid‑connected and off‑grid operation, this inverter enables seamless backup power, advanced load control, and flexible system expansion. It’s ideal for commercial solar installations, large residential systems, micro‑grid projects, and hybrid energy scenarios.

High Solar Harvest & Smart Energy Performance

Maximize PV Utilization

  • Supports up to 200 % PV input to capture more energy from oversized PV arrays.

  • High 40 A max input current per MPPT enables compatibility with high‑power solar modules.

  • Intuitive smart energy management strategies forecast solar generation and load consumption for optimal dispatch.

Benefits:

  • Higher PV energy harvest through flexible PV configuration.

  • Intelligent system tracking and load prediction for improved performance.

Reliable Backup & Fast Switching

Continuous Power Support

  • Fast UPS‑level switch‑over (< 10 ms) ensures reliable power continuity for critical loads.

  • Supports robust off‑grid operation with enhanced EPS output performance.

  • Designed to handle up to 150 % EPS output for short durations, ensuring stability under dynamic load changes.

Advantages:

  • Seamless transition between grid and backup power.

  • Stable support for essential loads even during grid outages.

Scalable & Flexible Configuration

Built for Larger Installations

  • Multiple power variants available: 49.9 kW, 50 kW, 60 kW, 61 kW — covering a diverse range of system capacities.

  • Integrated for parallel operation with up to 10 units to meet higher power and scalability requirements.

  • Dual independent battery ports allow easy capacity expansion with additional storage.

Benefits:

  • Great flexibility for commercial and large residential systems.

  • Parallel configuration supports micro‑grid scale energy requirements.

Intelligent & Connected System Control

Smart Operation for Diverse Scenarios

  • AI‑ready functionalities help forecast energy generation and load consumption.

  • Supports intelligent load management for devices like heat pumps and EV chargers.

  • VPP ready capability with support for grid‑interactive standards like OpenADR and IEEE 2030.5.

  • Supports 7×24h scheduling and wireless metering solutions to optimize system performance.

Benefits:

  • Enhanced autonomous operation and demand response.

  • Adaptable to advanced grid services and future smart energy infrastructure.

Durable & Safe Design

Built‑In Protection & Reliability

  • IP66 protection rating for robust outdoor installation and weather resistance.

  • Type II SPD protection (AC & DC) for electrical surge safety.

  • Optional AFCI protection increases arc‑fault safety.

  • Smart IV curve scan for early PV array diagnosis and preventive maintenance.

Advantages:

  • Excellent resistance to environmental stress and electrical hazards.

  • Multiple safety layers for long‑term system reliability.

Why Choose China Moneypro X3‑AELIO?

  • High PV Handling: 200 % PV input with high current MPPT support.

  • Scalable Power: Power options from ~49.9 kW to 61 kW with parallel support.

  • Reliable Backup: UPS‑level switch‑over with high EPS output capability.

  • Smart Controls: AI‑ready energy forecasting and intelligent load management.

  • Durable & Safe: IP66 rated with advanced electrical protections.

Typical Applications

  • Commercial & Industrial Solar: Ideal for high‑power solar installations with storage and backup requirements.

  • Large Residential & Mixed Use: Suitable for homes needing high output and intelligent energy scheduling.

  • Micro‑Grid & Off‑Grid Systems: Flexible integration in grid‑interactive and islanded energy networks.

  • Smart Load Environments: Power systems coordinating EV charging, heat pumps, and advanced load profiles.

FAQ – Common Questions

Q1: What power variants are offered in the X3‑AELIO series?
China Moneypro X3‑AELIO is available in approximately 49.9 kW, 50 kW, 60 kW, and 61 kW power options.

Q2: Can multiple units work together?
Yes — the system supports parallel operation with up to 10 units, enabling larger system capacity and redundancy.

Q3: Does the inverter support off‑grid backup?
Yes — it supports off‑grid operation with fast switch‑over and enhanced EPS output capability for stable backup.

Q4: What smart features does it include?
The X3‑AELIO series includes AI‑ready energy forecasting, intelligent load management, VPP readiness, and 24/7 scheduling.

Q5: Is this model suitable for outdoor installation?
Yes — with an IP66 protection rating and multiple safety features, it’s designed for rugged outdoor conditions.

Specifications

Technical Data
X3-AELIO-49.9K
X3-AELIO-49.9K-P
X3-AELIO-50K
X3-AELIO-60K
X3-AELIO-61K
PV INPUT
Max. recommended PV array power
100 kWp
120 kWp
100 kWp
120 kWp
120 kWp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
Rated PV input voltage
650 V
650 V
650 V
650 V
650 V
MPPT voltage range
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
160 ~ 950 V
Start-up voltage
180 V
180 V
180 V
180 V
180 V
No. of MPP trackers / Strings per MPP tracker
5 / 2
6 / 2
5 / 2
6 / 2
6 / 2
Max. input current per MPPT
40 A
40 A
40 A
40 A
40 A
Max. input short circuit current per MPPT
50 A
50 A
50 A
50 A
50 A
AC INPUT & OUTPUT (ON-GRID)
Rated output power
49.9 kW
49.9 kW
50.0 kW
60.0 kW
61.0 kW
Rated output current
75.7 A @ 220 V / 72.4 A @ 230 V
75.7 A @ 220 V / 72.4 A @ 230 V
75.8 A @ 220 V / 72.5 A @ 230 V
91.0 A @ 220 V / 87.0 A @ 230 V
92.5 A @ 220 V / 88.5 A @ 230 V
Max. output apparent power
49.9 kVA
49.9 kVA
55.0 kVA
66.0 kVA
66.0 kVA
Max. output continuous current
75.7 A @ 220 V / 72.4 A @ 230 V
75.7 A @ 220 V / 72.4 A @ 230 V
83.4 A @ 220 V / 79.8 A @ 230 V
100.0 A @ 220 V / 95.7 A @ 230 V
100.0 A @ 220 V / 95.7 A @ 230 V
Rated AC voltage
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
Rated AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
< 3%
< 3%
< 3%
< 3%
< 3%
BATTERY
Battery type
LFP
LFP
LFP
LFP
LFP
Battery voltage range
180 ~ 820 V
180 ~ 820 V
180 ~ 820 V
180 ~ 820 V
180 ~ 820 V
Max. charge / discharge current
160 A (80 A × 2)
160 A (80 A × 2)
160 A (80 A × 2)
160 A (80 A × 2)
160 A (80 A × 2)
EPS (OFF-GRID) OUTPUT
Rated EPS output voltage, frequency
3/N/PE, 220/380 V, 50 Hz/60 Hz; 3/N/PE, 230/400 V, 50 Hz/60 Hz
3/N/PE, 220/380 V, 50 Hz/60 Hz; 3/N/PE, 230/400 V, 50 Hz/60 Hz
3/N/PE, 220/380 V, 50 Hz/60 Hz; 3/N/PE, 230/400 V, 50 Hz/60 Hz
3/N/PE, 220/380 V, 50 Hz/60 Hz; 3/N/PE, 230/400 V, 50 Hz/60 Hz
3/N/PE, 220/380 V, 50 Hz/60 Hz; 3/N/PE, 230/400 V, 50 Hz/60 Hz
Rated EPS output power
49.9 kVA
49.9 kVA
50.0 kVA
60.0 kVA
61.0 kVA
Max. EPS output power
75 kVA, 10s
75 kVA, 10s
75 kVA, 10s
90 kVA, 10s
90 kVA, 10s
Switchover time
< 10 ms
< 10 ms
< 10 ms
< 10 ms
< 10 ms
EFFICIENCY
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.2%
97.2%
97.2%
97.2%
97.2%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
IP66
IP66
Operating temperature range
-35 ~ 60°C (derating at +45°C)
-35 ~ 60°C (derating at +45°C)
-35 ~ 60°C (derating at +45°C)
-35 ~ 60°C (derating at +45°C)
-35 ~ 60°C (derating at +45°C)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
Overvoltage category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
GENERAL
Dimensions (W × H × D)
670 × 820 × 257 mm
670 × 820 × 257 mm
670 × 820 × 257 mm
670 × 820 × 257 mm
670 × 820 × 257 mm
Net weight
< 100 kg
< 105 kg
< 100 kg
< 105 kg
< 105 kg
Cooling concept
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Smart air cooling
Communication interfaces
RS485, CAN, WiFi, LAN, 4G (Optional)
RS485, CAN, WiFi, LAN, 4G (Optional)
RS485, CAN, WiFi, LAN, 4G (Optional)
RS485, CAN, WiFi, LAN, 4G (Optional)
RS485, CAN, WiFi, LAN, 4G (Optional)
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
CE, VDE4105, G99, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TOR
PROTECTION
Over/under voltage protection
Yes
Yes
Yes
Yes
Yes
DC isolation protection
Yes
Yes
Yes
Yes
Yes
Over-current protection
Yes
Yes
Yes
Yes
Yes
Grid monitoring
Yes
Yes
Yes
Yes
Yes
DC injection monitoring
Yes
Yes
Yes
Yes
Yes
Back feed current protection
Yes
Yes
Yes
Yes
Yes
Residual current detection
Yes
Yes
Yes
Yes
Yes
Over temperature protection
Yes
Yes
Yes
Yes
Yes
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
AC auxiliary power supply (APS)
Built-in
Built-in
Built-in
Built-in
Built-in
