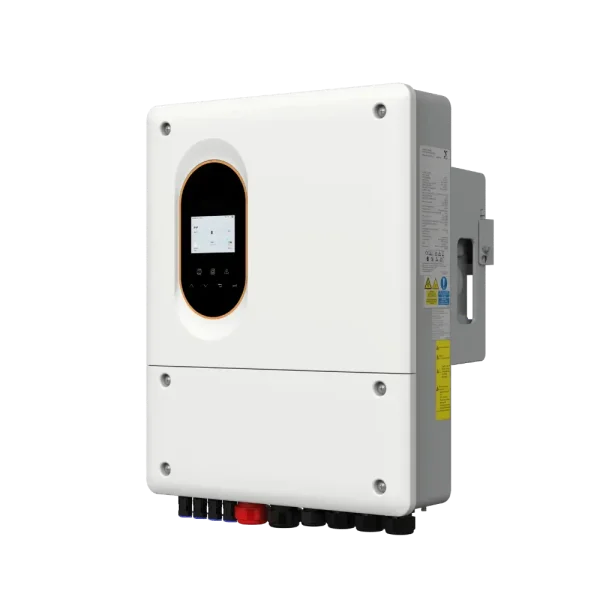

MP-X1-RENO-LV-7803

MP-X1-RENO-LV-7803

The China Moneypro X1‑RENO‑LV is an advanced single‑phase hybrid solar inverter engineered for both grid‑tied and off‑grid applications. With support for multiple parallel units, high PV oversizing capability, intelligent load management, and extreme reliability features, it delivers a future‑ready energy solution for modern residential and small commercial installations.

Category:

Share your love

Smart, Flexible & High‑Performance Hybrid Inverter

The China Moneypro X1‑RENO‑LV is an advanced single‑phase hybrid solar inverter engineered for both grid‑tied and off‑grid applications. With support for multiple parallel units, high PV oversizing capability, intelligent load management, and extreme reliability features, it delivers a future‑ready energy solution for modern residential and small commercial installations.

Intelligent Energy Management & Connectivity

Smart Load Control & Cloud Monitoring

  • Integrated smart loads management enables optimized distribution of solar and stored energy.

  • Cloud connectivity supports remote system monitoring and operations & maintenance.

  • Planned Global MPP scan function improves energy harvest potential from PV arrays.

Benefits:

  • Intelligent prioritization of loads enhances self‑consumption efficiency.

  • Remote visibility and system performance insights.

Flexible Adaptability & Expandable Design

Scalable for Growing Solar Systems

  • Supports up to 5 units in parallel for both on‑grid and off‑grid scenarios.

  • Compatible with multiple third‑party battery brands for flexible storage choices.

  • Micro‑grid and generator integration future support expands operational versatility.

Advantages:

  • Scalable power capacity as energy demands grow.

  • Flexibility to integrate diverse battery and hybrid energy sources.

High Performance & Reliable Power

Maximum Solar Utilization & Fast Backup

  • Up to 200 % PV oversizing and 200 % PV input power maximize energy capture from large PV arrays.

  • Low start‑up voltage extends energy harvest in low‑light conditions.

  • EPS output of up to 200 % for 10 s supports high startup loads during outages.

  • UPS‑level switchover time < 4 ms ensures uninterrupted power supply when transitioning between grid and stored energy.

Benefits:

  • Stable performance under varying grid and solar conditions.

  • Enhanced backup capability for critical load support.

Assured Reliability & Safety

Built for Everyday Use

  • Battery terminal temperature detection enhances battery safety and longevity.

  • IP66 ingress protection ensures durability in challenging outdoor environments.

  • Type II SPD protection on both AC and DC sides guards against voltage surges.

  • Optional AFCI protection improves electrical safety (future upgrade).

Advantages:

  • Multiple protection layers for reliable long‑term operation.

  • Robust hardware suited for diverse installation scenarios.

Why Choose China Moneypro X1‑RENO‑LV?

  • Future‑Ready Scalability: Up to 5 parallel units for flexible system sizing.

  • Smart & Connected: Intelligent load management with cloud‑based monitoring.

  • High Solar Capture: Support for 200 % PV oversizing and low startup voltage.

  • Reliable Backup: Fast UPS‑level switchover and enhanced EPS output.

  • Safe & Durable: IP66 protection with comprehensive internal safeguards.

Typical Applications

  • Residential Solar Systems: Maximize self‑consumption and provide backup power.

  • Hybrid Grid & Off‑Grid Installations: Handle weak grid scenarios or solar‑only operations.

  • Scalable Solar + Storage Projects: Parallel configuration for higher capacity needs.

  • Micro‑Grid & Generator Integrated Systems: Versatile deployments in diversified energy settings.

FAQ – Common Questions

Q1: What applications is X1‑RENO‑LV suitable for?
China Moneypro X1‑RENO‑LV supports both grid‑tied and off‑grid uses, making it ideal for hybrid residential solar setups.

Q2: How many units can be paralleled?
Up to 5 units can operate in parallel, enabling larger power capacity and expanded energy solutions.

Q3: What protection features does the inverter include?
The system integrates IP66 ingress protection, battery temperature detection, SPD protection, and optional AFCI safety enhancements.

Q4: How does X1‑RENO‑LV improve solar energy harvest?
With 200 % PV oversizing and low start‑up voltage, the inverter captures more energy from PV arrays even in low‑light conditions.

Q5: Is the inverter suitable for backup power?
Yes — it offers UPS‑level switchover (< 4 ms) and EPS output at twice rated power (10 s) for reliable backup performance.

Specifications

Parameter Specification
Model X1‑RENO‑LV 8 kW
PV INPUT
Max. recommended PV array power 16 kWp
Max. PV input voltage¹ 500 V
Rated PV input voltage 360 V
Operating voltage range 60 V ~ 480 V
Start‑up voltage 80 V
No. of MPP trackers / strings per MPPT 2 (2/2)
Max. input current per MPPT 36 A / 36 A
Max. input short circuit current per MPPT 45 A / 45 A
AC INPUT & OUTPUT (ON‑GRID)
Rated output power 8 kW
Rated output current 34.8 A @230 V
Max. output apparent power 8.8 kVA
Max. output continuous current 38.3 A @230 V
Rated AC voltage 220 / 230 / 240 V
Max. AC input apparent power 11 kVA
Max. AC input current 47.9 A @230 V
Max. continuous AC passthrough (grid to load) 50 A
Rated AC frequency 50 Hz / 60 Hz
AC frequency range² 50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range ~ 1 (0.8 lagging to 0.8 leading)
THDi (rated power) < 3%
BATTERY
Battery type LFP / Lead‑acid
Battery voltage range 40 ~ 60 V
Max. charge / discharge current 190 A / 190 A
EPS (OFF‑GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency 230 V, 50 Hz / 60 Hz
Rated EPS output power 8 kVA
Peak EPS output power 16 kVA (2× rated power, 10 s)
Switchover time < 4 ms
EFFICIENCY
Max. efficiency 97.6%
European efficiency 97.0%
ENVIRONMENT LIMIT
Ingress protection IP66
Operating temperature range ‑40 °C ~ +60 °C (>45 °C derating)
Max. operating altitude 3000 m
Relative humidity 4 ~ 100% RH (condensing)
Overvoltage category Mains: III, Battery: II, PV: II
GENERAL
Dimensions (W × H × D) 420 × 528.4 × 209 mm
Net weight 26.3 kg
Cooling concept Smart air cooling
Communication interfaces CAN, RS485, USB, DI/DO
Display LCD
Topology Non‑isolated for PV side / HF for battery side
Certifications NRS 097‑2‑1, IEC 61727, IEC 62116, INMETRO, IEC/EN 62109‑1/-2
PROTECTION
Over/under voltage protection Integrated
DC isolation protection Integrated
DC reverse‑polarity protection Integrated
Grid monitoring Integrated
DC injection monitoring Integrated
Back feed current monitoring Integrated
Over temperature protection Integrated
Surge protection (DC / AC) DC: Type II, AC: Type II
NOTES The maximum input voltage is the upper limit of the DC voltage; any higher input DC voltage may damage the inverter. The AC frequency range may vary by country code.
