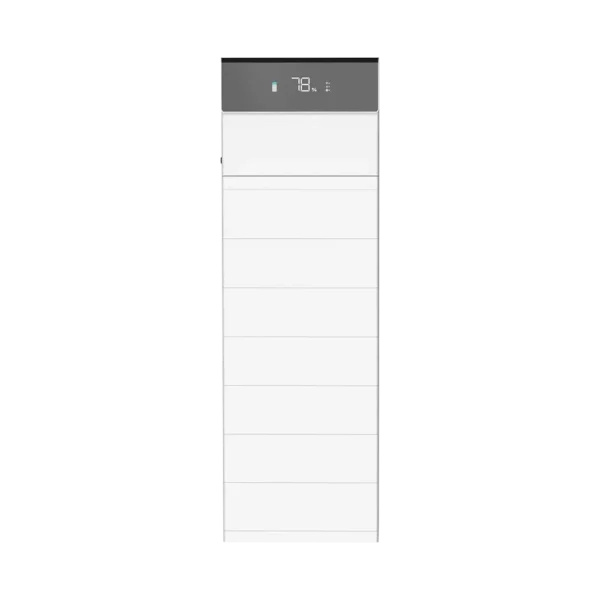

MP-Force H3X Hybrid-8802

MP-Force H3X Hybrid-8802

The China Moneypro Force H3X-DC Series is a high-voltage all-in-one residential energy storage system integrating battery, hybrid inverter, EMS, and BMS into a single modular unit. Designed for flexible installation and high-performance solar energy storage, the system offers scalable capacity, intelligent energy management, and reliable backup power for modern homes.

Its modular architecture supports easy expansion and simplified installation, making it suitable for residential and small commercial energy storage applications.

Category:

Share your love

High Voltage Performance & Flexible Expansion

Scalable Modular Architecture

  • Modular battery design with 5.12 kWh per battery module
  • Flexible capacity range from 10 kWh to 35 kWh
  • Stackable battery design for easy expansion
  • High-voltage architecture improves system efficiency

Benefits:

  • Flexible capacity expansion for growing energy demand
  • Improved efficiency with high-voltage design
  • Simplified installation and maintenance

The modular system supports multiple battery modules stacked vertically, allowing flexible energy capacity configurations for residential installations.

Reliable Backup & Continuous Power

Whole-Home Energy Security

  • Power options: 3.6 kW / 5 kW / 6 kW / 8 kW
  • Battery capacity options: 5 kWh – 35 kWh
  • Intelligent backup power functionality
  • Fast switching during grid outage

Advantages:

  • Reliable backup power for critical loads
  • Flexible power configurations
  • Suitable for medium to large homes

The system integrates PV, inverter, and battery into one platform, reducing installation complexity and improving reliability.

Intelligent Energy Management

Smart Energy Control

  • Intelligent energy dispatch and load management
  • Micro-grid compatible architecture
  • Remote monitoring support
  • Compatible with multiple inverter brands

Benefits:

  • Optimized solar self-consumption
  • Improved system visibility
  • Intelligent power distribution

The system supports advanced energy management and inverter compatibility, enabling flexible deployment across residential applications.

Safe & Durable Design

Engineered for Long-Term Reliability

  • Lithium Iron Phosphate (LFP) battery technology
  • Built-in Battery Management System (BMS)
  • Multi-layer safety protection
  • Modular stackable mechanical design

Advantages

  • Enhanced system safety
  • Long cycle life
  • Reliable performance

Each battery module includes integrated BMS protection ensuring safe charging, discharging, and system operation.

Why Choose China Moneypro Force H3X DC?

  • High Voltage Design — improved efficiency and performance
  • Flexible Capacity — 10 kWh to 35 kWh expansion
  • Modular System — easy installation and upgrade
  • Smart Management — intelligent energy optimization
  • Safe & Reliable — LFP battery technology and BMS protection

Key Specifications

  • Battery Type: Lithium Iron Phosphate (LFP)
  • Battery Module Capacity: 5.12 kWh
  • Capacity Range: 10 kWh – 35 kWh
  • Power Options: 3.6 kW / 5 kW / 6 kW / 8 kW
  • Scalability: Stackable modular design
  • Communication: CAN / RS485
  • Installation: Floor-standing stackable
  • System Type: High-voltage DC-coupled
  • Application: Residential energy storage

Typical Applications

  • Residential solar storage
  • Home backup power
  • Self-consumption optimization
  • Micro-grid applications
  • Smart home energy management

FAQ – Common Questions

Q1: What battery capacity options are available?
China Moneypro Force H3X DC supports 10 kWh to 35 kWh modular expansion.

Q2: What battery technology is used?
The system uses Lithium Iron Phosphate (LFP) battery technology.

Q3: Can the system be expanded later?
Yes, the modular design allows stackable battery expansion.

Q4: Is the system suitable for residential backup?
Yes, the system supports backup power and smart energy management.

Q5: What inverter compatibility does it support?
The system supports multiple inverter brands and high-voltage hybrid systems.

Specifications

Battery Module FH10050
Number of Battery Modules 1/2/3/4
Maximum PV Power (kW) 9.6
System Rated Capacity (kWh) 5.12/10.24/15.36/20.48
Nominal Power (kW) 3.6/5/6/8
IP Rate IP55
Maximum Power (kW) 9.6/12.8
Maximum Dc Input Voltage (Vdc) 600
Start Up Voltage (Vdc) 80
Number of MPPT 2/3
Number of PV Strings Per MPPT 1
MPPT Voltage Range (Vdc) 80~550
MPPT Full Load Voltage Range (Vdc) 190~520
Maximum Current (A) 16
Short Circuit Current Per MPPT(A) 25
Surge Protection Type II
Nominal AC Voltage/Frequency (Vac) 230@50/60Hz
Grid Voltage Range (Vac) 172.5~264.5
Grid Connection L/N/PE
Nominal AC Power (kW) 3.6/5/6/8
Maximum Grid Input Power (kW) 5.7/7.5/9.6/12
Rated Output Voltage (Vac) 230±1%
ON/Off-Grid Switching Time (ms) ≤10
Rated Of-Grid Power (kVA) 3.6/5/6/8
Peak Of-Grid Power (60s)/Estimate (kVA) 4.32/6/7.2/9.6
Maximum Parallel 6
Maximum Efficiency (400V PV) 97%
European Efficiency 97%
Short Circuit Current Per MPPT (A) 30
European Efficiency 97%
Maximum Efficiency (600V PV) 97%
Maximum Parallel 6
Peak Off-Grid Power (60s)/Estimate (kVA) 9.6/12/14.4/18
Rated Off-Grid Power (kVA) 8/10/12/15
ON/Off-Grid Switching Time (ms) ≤10
Rated Output Voltage (Vac) 400
Maximum Grid Input Power (kW) 12/15/18/22.5
Nominal AC Power (kW) 8/10/12/15
Grid Connection 3W/N/PE
Grid Voltage Range (Vac) 320~480
Nominal AC Voltage/Frequency (Vac) 400@50/60Hz
Surge Protection Type II
Main System FH10050
Maximum Current (A) 20
MPPT Full Load Voltage Range 0fdc) 280~850
MPPT Voltage Range (Vdc) 200~850
Number of PV Strings Per MPPT 1
Number of MPPT 3
Start Up Voltage (Vdc) 200
Maximum DC Input Voltage (Vdc) 1000
Maximum Power (kW) 24
IP Rate IP55
Nominal Power (kW) 8/10/12/15
System Rated Capacity (kWh) 10.24/15.36/20.48/25.6/30.72/35.84
Maximum PV Power (kW) 24
Number of Battery Modules 2/3/4/5/6/7
System Battery Voltage (Vdc) 100~500/120~850
Maximum Charge and Discharge Current (A) 40/50
System Dimensions (Width*Depth*Height, mm) 540*350*(565/735/905/1075) /540*350*(780/950/1120/1290/1460/1630)
System Weight (kg) 69/108/147/186/118/157/196/235/274/313
System Installation Method Floor Installation (Wall-Mounted Optional for 5/10/15 Series)
System Operating Temperature Range (℃) -10~55
System Operating Temperature Range (℃) 0~95%
System Salt Spray Level C5M
System Working Altitude (m) ≤3000
Common Noise Level (@ 1 meter *In Nominal Condition, dB) <29
Cooling Air Cooling
Communication Portal EPO WIFI/WLAN/Bluetooth
EPO Installed
AFCI 2.0@IEC 63027
Standard Compliance UN38.3/IEC61000-6/VDE-AR-E-2510-50 2017-05/IEC62619: 2022/IEC60730-1/1S013849/IEC62477-1: 2022/EN 62477-1: 2012+A12: 2021/IEC62109-1: 2010/IEC62109-2: 2011/VDE-AR-N-4105: 2018/DIN VDE V 0124-100: 2020/EN50549-10/EN50549-1/PPDS Annex: 2022+EN50549-10/C10/11+EN50549-10/EIFS+EN50549-10/ CEI0-21/RD1699 RD661 RD413/UNE 217002:2020/NTS Version 2.1: 2021/UNE 217001: 2021/AS 4m.2/AS60947.3/G98/G99/TOR/ PTPiREE/NA-EEA-NE7-CH 2020
Battery Module FH10050
Battery Module Capacity (kWh) 5.12
Depth of Discharge 95%
Charge/Discharge Standard(A) 10
Charge/Discharge Normal(A) 50
Charge/Discharge MAX(A) 55@15min
Cycle Life (@25°C) ＞8000
Muti-Group Max.6 Systems in Parrallel
