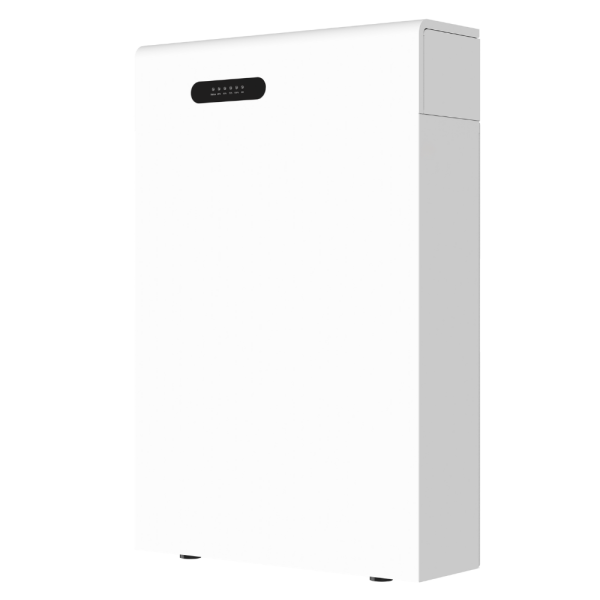

MP-T-BAT H 5.8 V3 Residential 5.8-34.6 kWh High Voltage Battery-2549

MP-T-BAT H 5.8 V3 Residential 5.8-34.6 kWh High Voltage Battery-2549

The China Moneypro TSYS?HV?5.8 is a high?voltage modular battery system engineered for residential and light commercial solar + storage installations. With LiFePO? battery cells, compact design, and flexible installation, it delivers long?lasting performance, safe operation, and dependable power backup. Ideal for homeowners seeking enhanced solar self?consumption and stable energy supply with scalable options.

Category:

Share your love

Compact, Reliable Solar Storage for Homes

The China Moneypro TSYS?HV?5.8 is a high?voltage modular battery system engineered for residential and light commercial solar + storage installations. With LiFePO? battery cells, compact design, and flexible installation, it delivers long?lasting performance, safe operation, and dependable power backup. Ideal for homeowners seeking enhanced solar self?consumption and stable energy supply with scalable options.

Strong Performance & Durability

Designed for Consistent Daily Use

  • Depth of Discharge (DOD) up to 90% allows a high portion of usable energy from each cycle.

  • Cycle life exceeding 6000 cycles supports reliable performance over many years.

  • LFP (Lithium Iron Phosphate) battery cells for inherent safety, stability, and long life.

  • Max. charge/discharge current: 35?A delivers solid power flow for typical residential loads.

Benefits:

  • Reliable energy delivery for daily solar storage needs.

  • Long life reduces replacement cost and ensures years of dependable use.

  • Stable performance with safe battery chemistry.

Intelligent Operation & Easy Integration

Smarter Management & Monitoring

  • Remote fault diagnosis, firmware upgrade, and maintenance support simplify ongoing operation and servicing.

  • Compatible with high?voltage hybrid inverters for seamless solar + storage integration.

Advantages:

  • Reduces onsite maintenance effort.

  • Improves energy use planning with smart control tools.

Flexible Installation & Protective Design

Built for Real?World Conditions

  • IP65 ingress protection offers reliable resistance against dust and water intrusion.

  • Floor or wall mounting options provide installation flexibility for varied environments.

  • Compact footprint enables easier placement in homes or energy storage rooms.

Benefits:

  • Suitable for indoor or sheltered outdoor installation areas.

  • Mounting options accommodate different site constraints.

Why Choose China Moneypro TSYS?HV?5.8?

  • High Usable Capacity: Nominal 5.8?kWh with high depth of discharge (up to 90%).

  • Safe & Long Lasting: LiFePO? cells and >?6000 life cycles ensure durable performance.

  • Strong Protection: IP65 rating for robust environmental resistance.

  • Smart O&M: Remote diagnostics and upgrades simplify monitoring and maintenance.

  • Flexible Installation: Floor or wall mounting adapt to site conditions.

Key Specifications

  • Battery Type: LiFePO? (Lithium Iron Phosphate)

  • Nominal Voltage: ~115.2?V

  • Total Capacity: 5.8?kWh (nominal)

  • Max. Charge/Discharge Current: 35?A

  • Depth of Discharge (DOD): Up to 90%

  • Cycle Life: >?6000 cycles

  • Ingress Protection: IP65

  • Mounting: Floor or wall

  • Dimensions: 474????193????708?mm

  • Weight: ~72.2?kg

Typical Applications

  • Residential Solar Storage: Store excess PV generation for night usage.

  • Backup Power Support: Provides reliable energy during grid outages.

  • Hybrid PV + Battery Systems: Works with compatible hybrid inverters to optimize self?consumption and backup.

  • Flexible Site Installations: Floor or wall mounting options for diverse settings.

FAQ ?C Common Questions

Q1: How much usable energy does TSYS?HV?5.8 provide?
It offers a nominal 5.8?kWh capacity with up to 90% DOD, maximizing usable energy storage.

Q2: What type of battery chemistry is used?
It uses LiFePO? cells, known for safety, thermal stability, and long lifespan.

Q3: Is this system safe for home installations?
Yes ?? IP65 protection ensures robust resistance to dust and water, suitable for indoor or sheltered outdoor use.

Q4: Can the system be expanded?
Yes ?? on compatible platforms, multiple TSYS?HV units can be connected to expand total storage capacity.

Q5: How is system maintenance handled?
Remote fault diagnosis, firmware updates, and system monitoring make O&M simpler and more efficient.

Specifications

Technical Data
T-BAT H 5.8 V3 / H
T-BAT H 11.5 V3 / H
T-BAT H 17.3 V3 / H
T-BAT H 23.0 V3 / H
T-BAT H 28.8 V3 / H
T-BAT H 34.6 V3 / H
GENERAL INFORMATION
Nominal Voltage (V)
115.2
230.4
345.6
460.8
576
691.2
Operating Voltage Range (V)
100 ~ 130
200 ~ 260
300 ~ 390
400 ~ 520
500 ~ 650
600 ~ 750
Nominal Energy (kWh)
5.8
11.5
17.3
23.0
28.8
34.6
Depth of Discharge (DOD)
95%
95%
95%
95%
95%
95%
Usable Energy (95% DOD) (kWh)
5.5
10.9
16.4
21.9
27.4
32.9
Rated Charge / Discharge Power (kW)
2.9
5.8
8.6
11.5
14.4
17.3
Max. Charge / Discharge Power (kW)
4
8.1
12.1
16.1
20.2
24.2
Recommend Charge / Discharge Current (A)
25
25
35
35
35
35
Max. Charge / Discharge Current (A)
50 / 50
50 / 50
50 / 50
50 / 50
50 / 50
50 / 50
Cycle Life (95% DOD)
>6000 Cycles
>6000 Cycles
>6000 Cycles
>6000 Cycles
>6000 Cycles
>6000 Cycles
Warranty
10 Years
10 Years
10 Years
10 Years
10 Years
10 Years
ENVIRONMENTAL REQUIREMENTS
Charge Temperature (°C)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
0 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
Discharge Temperature (°C)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
-20 ~ 55 (Heating Off) / -30 ~ 55 (Heating On)
Cooling Concept
Natural
Natural
Natural
Natural
Natural
Natural
Storage Temperature
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 55°C (6 months)
Relative Humidity
4 ~ 100% (Condensing)
4 ~ 100% (Condensing)
4 ~ 100% (Condensing)
4 ~ 100% (Condensing)
4 ~ 100% (Condensing)
4 ~ 100% (Condensing)
Max. Operating Altitude (m)
2000
2000
2000
2000
2000
2000
Installation Type
Wall mounting / Floor mounting
Wall mounting / Floor mounting
Wall mounting / Floor mounting
Wall mounting / Floor mounting
Wall mounting / Floor mounting
Wall mounting / Floor mounting
Ingress Protection
IP66
IP66
IP66
IP66
IP66
IP66
Environment
Outdoor / Indoor
Outdoor / Indoor
Outdoor / Indoor
Outdoor / Indoor
Outdoor / Indoor
Outdoor / Indoor
BATTERY MODULE (BMS+PACK)
Model
T-BAT H 5.8(H) V3
T-BAT H 11.5(H) V3
T-BAT H 17.3(H) V3
T-BAT H 23.0(H) V3
T-BAT H 28.8(H) V3
T-BAT H 34.6(H) V3
Dimensions (W × H × D mm)
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
Net Weight (kg)
61.5 ±1
61.5 ±1
61.5 ±1
61.5 ±1
61.5 ±1
61.5 ±1
BATTERY MODEL
Battery Model
HV11550(H) V3
HV23050(H) V3
HV34550(H) V3
HV46050(H) V3
HV57650(H) V3
HV69150(H) V3
Battery Type
LFP
LFP
LFP
LFP
LFP
LFP
Scalability
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
Module Capacity (kWh)
5.8
5.8
5.8
5.8
5.8
5.8
Dimensions (W × H × D mm)
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
474 × 715 × 150
Net Weight (kg)
59.5 ±1
59.5 ±1
59.5 ±1
59.5 ±1
59.5 ±1
59.5 ±1
COMMUNICATION
Communication Interfaces
CAN 2.0 + RS485
CAN 2.0 + RS485
CAN 2.0 + RS485
CAN 2.0 + RS485
CAN 2.0 + RS485
CAN 2.0 + RS485
STANDARD
Hazardous Materials Classification
Class 9
Class 9
Class 9
Class 9
Class 9
Class 9
Transport Testing Requirement
UN38.3
UN38.3
UN38.3
UN38.3
UN38.3
UN38.3
Protection Class
Class I
Class I
Class I
Class I
Class I
Class I
Certifications
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
IEC62619 / IEC63056 / IEC60730 / IEC62040 / IEC61000-1&-3 / EN62477 / VDE2510
