MP-T-BAT-SYS-LV D150 Residential Battery-8121

Scalable & High-Performance Solar Energy Storage

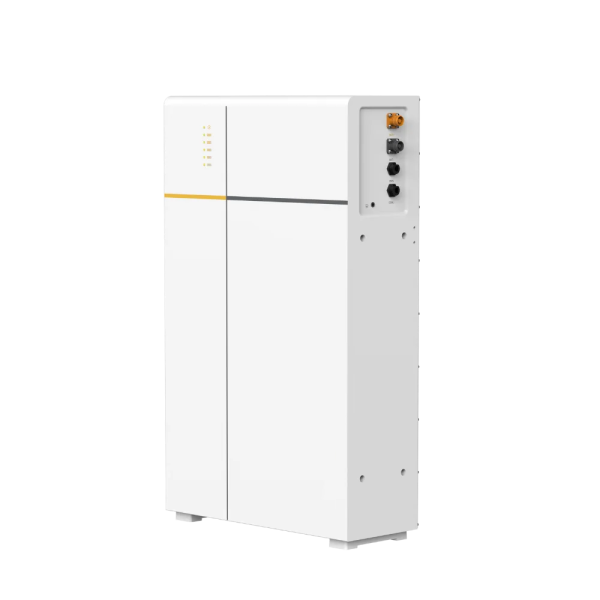

The China Moneypro TSYS-LV-D150 is a modular 15 kWh low-voltage battery system designed for residential energy storage and backup power applications. Built with safe LFP (Lithium Iron Phosphate) cells and a rugged IP65 enclosure, it offers high discharge capability, excellent cycle life, and flexible expandability ?? ideal for maximizing solar self-consumption and providing reliable household power support.

Robust Output & Long Life

Designed for Sustainable Power

• High-performance LiFePO? battery cells deliver strong discharge and long-term stability.

• Peak discharge current (310 A for 10 s) supports demanding load requirements.

• Cycle life > 6000 cycles, ensuring years of dependable use.

• Modular design expandable to 16 units in parallel for larger systems.

Benefits:

• Stable performance during peak household loads.

• Long lifespan reduces total ownership cost.

• Scale capacity over time to meet growing energy demands.

Intelligent Monitoring & Flexible Integration

Smart Control & Easy Installation

• Remote fault diagnosis, upgrades, and maintenance streamline O&M.

• AI-driven management algorithms optimize state of charge and system performance.

• Quick, modular installation adapts easily to various residential setups.

Advantages:

• Reduces onsite maintenance effort.

• Improves monitoring accuracy and battery health tracking.

• Flexible architecture supports future expansion.

Reliable & Durable Design

Built for Everyday Use & Outdoor Conditions

• IP65 protection ensures reliability in harsh environments.

• Natural cooling design enhances long-term reliability.

• Solid mechanical structure suitable for floor-mounted residential installations.

Benefits:

• Protection against dust, rain, and outdoor stress.

• Durable design extends system service life.

• Suitable for residential energy storage use.

Why Choose China Moneypro TSYS-LV-D150?

• Reliable LFP Technology: Stable, safe battery chemistry for daily energy needs.

• High Discharge Capability: 310 A peak discharge supports heavy loads.

• Expandable Capacity: Up to 16 units in parallel for larger systems.

• Smart Energy Management: Remote monitoring and AI optimization.

• Outdoor-Ready Protection: IP65 rating ensures durability in diverse conditions.

Key Specifications

• Battery Type: LFP (Lithium Iron Phosphate)

• Nominal Energy: 15 kWh (?? 13.5 kWh usable at 90 % DOD)

• Nominal Voltage: 48 V

• Operating Voltage Range: 42 ?C 54 V

• Rated Capacity: 314 Ah

• Max. Charge/Discharge Current: 155 A

• Peak Discharge Current: 310 A (10 s)

• Cycle Life: > 6000 cycles (90 % DOD)

• Max Parallel Units: 16

• Communication: CAN / RS485

• Dimensions (W??H??D): 900 ?? 540 ?? 220 mm

• Weight: ~125 kg

• Ingress Protection: IP65

• Installation Type: Floor-mounted

• Cooling Concept: Natural cooling

• Warranty: 5 years

• Certifications: UN38.3, IEC62619, CE

Typical Applications

• Residential Solar Storage: Store excess PV energy for night use.

• Backup Power Support: Provides energy during grid outages.

• Scalable Home Energy Systems: Expand storage for larger energy autonomy.

• Smart Community Energy: Integrates with advanced inverters and energy management.

FAQ ?C Common Questions

Q1: How much usable energy does the TSYS-LV-D150 provide?
With 15 kWh nominal and ~90 % DOD, it delivers ~13.5 kWh usable energy for daily use.

Q2: Can multiple units be combined for more capacity?
Yes ?? up to 16 units in parallel can be connected to expand energy capacity.

Q3: What safety feature ensures outdoor reliability?
The battery features an IP65 protection rating, making it suitable for outdoor-exposed environments.

Q4: Is the peak discharge current sufficient for heavy loads?
Yes ?? it supports 310 A peak discharge (10 s) to handle high instantaneous power demands.

Q5: What communications are supported for monitoring?
It supports CAN and RS485 communication interfaces for system integration.
