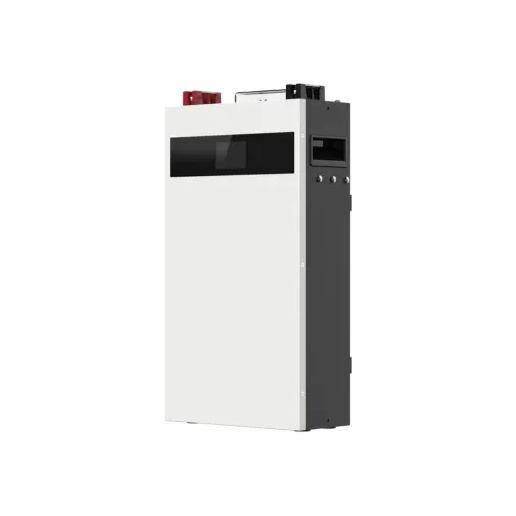

MP-TSYS-LD51 Low Voltage Residential Energy Storage Battery-955

Reliable & Scalable Home Energy Storage

The China Moneypro TSYS-LD51 is a residential energy storage solution designed to provide stable, high-performance backup and self-consumption support for solar PV systems. Featuring LFP (Lithium Iron Phosphate) cells and a smart management system with intuitive LCD touchscreen, it offers easy interaction, remote diagnostics, and dependable long-term energy storage. With flexible mounting and scalable expansion up to 16 units in parallel, it??s ideal for homes seeking a reliable and expandable storage platform.

Flexible Installation & Expandability

Adapt to Your Space

• Supports floor, wall, or stack mounting for versatile installation choices.

• Expandable up to 16 units in parallel, allowing larger storage configurations as needs grow.

• CTP (Cell-to-Pack) design maximizes space and energy density for efficient storage.

Benefits:

• Customize installation to suit different spaces.

• Easily expand capacity over time without replacing core components.

• Optimized internal structure improves storage efficiency.

High Performance & Lasting Use

Strong Battery Capability

• 135 A maximum charging current ensures robust charge/discharge performance.

• More than 6000 cycles of life for sustained long-term use.

• Premium LFP cells and high-efficiency processors provide dependable performance.

Advantages:

• High charge/discharge capability supports everyday and peak loads.

• Long cycle life reduces total cost of ownership.

• Stable performance across repeated use.

Smart Management & Easy O&M

Intuitive Control

• User-friendly LCD touchscreen lets you easily view system information and status.

• Remote diagnostics and updates simplify monitoring and maintenance.

Benefits:

• Clear, instant access to battery performance data.

• Remote support options reduce onsite maintenance time.

• Intuitive interface improves usability for homeowners.

Reliable Safety & Durable Design

Built for Everyday Use

• IP40 rated protection ensures safe and dependable operation in indoor environments.

• Premium LiFePO4 chemistry enhances safety and longevity.

Benefits:

• Protected against solid particle intrusion and limited moisture.

• Designed for dependable indoor residential use.

• LFP cells offer improved safety compared with standard chemistries.

Why Choose China Moneypro TSYS-LD51?

• Expandable Capacity: Parallel up to 16 units for flexible system growth.

• High Performance: Strong charge/discharge current and long cycle life.

• Smart & Easy Control: LCD touchscreen and remote diagnostics simplify operation.

• Safe & Durable: IP40 protection and premium LFP cells ensure safe home operation.

• Wide Mounting Options: Floor, wall, or stack installation for flexible deployment.

Key Specifications

• Battery Type: LFP (Lithium Iron Phosphate)

• Nominal Voltage: 51.2 V

• Rated Capacity: 100 Ah (~5.1 kWh)

• Operating Voltage Range: 42.4 V ?C 57.6 V

• Max. Current: Charge 100 A / Discharge 135 A

• Cycle Life: > 6000 cycles

• Expansion: Up to 16 units in parallel

• Mounting: Floor, wall, or stack options

• Dimensions (W ?? H ?? D): 326 ?? 626 ?? 164 mm

• Weight: 41.5 ?? 1 kg

• Ingress Protection: IP40 (indoor)

Typical Applications

• Residential Solar Storage: Store excess solar energy for evening or night use.

• Backup Power: Provide stable power during grid outages.

• Scalable Systems: Expand capacity as energy needs grow.

• Energy Management Optimization: Works with hybrid inverters for improved self-consumption.

FAQ ?C Common Questions

Q1: How much energy does TSYS-LD51 store?
It provides nominally ~5.1 kWh of energy storage, suitable for typical household PV setups.

Q2: Can multiple TSYS-LD51 units be combined?
Yes ?? up to 16 units in parallel can be connected for higher total capacity.

Q3: Is this battery safe for indoor use?
Yes ?? with IP40 protection and stable LFP chemistry, it??s suitable for indoor residential installations.

Q4: Does it support remote monitoring?
Yes ?? remote diagnostics and updates are supported alongside the LCD touchscreen.

Q5: How long will it last?
With more than 6000 cycles, it??s designed for reliable long-term use.
