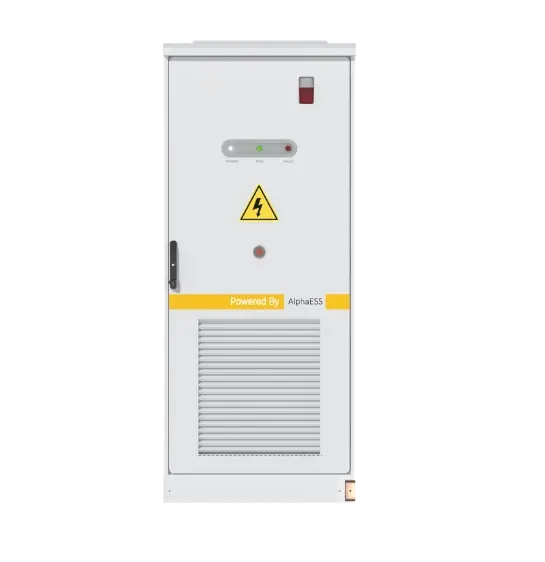

MP-STORION-LC-TB125 C&I Energy Storage System-4858

High‑Capacity, Intelligent & Scalable C&I ESS

The China Moneypro PowerStack TB125 Series is an advanced liquid‑cooled commercial and industrial battery energy storage system engineered for reliable power delivery, flexible capacity growth, and comprehensive safety protection. Designed for peak shaving, energy arbitrage, backup power, and grid‑interactive applications, it integrates a high‑efficiency PCS (power conversion system), intelligent EMS/BMS, liquid cooling, and fire suppression to deliver robust performance for mid‑ to large‑scale PV + storage systems.

Efficient Energy Performance & Thermal Management

Maximize Energy Throughput

• Rated output power: 125 kW, supporting continuous C&I power demands.

• High nominal capacity: ~261 kWh per cabinet — providing substantial energy storage for commercial needs.

• Liquid‑cooling thermal management with active cell balancing — maintains cell temperature uniformity within a tight band to reduce thermal stress and extend battery life.

• High PCS efficiency (~99 %) and system round‑trip efficiency ≥ 90 % optimize overall energy utilization.

Benefits:

• Efficient energy capture and discharge for load shifting, peak shaving, and arbitrage.

• Enhanced usable lifetime and reduced performance degradation from thermal stress.

Scalable & Flexible Integration

Modular Growth for Larger Systems

• Supports up to ~50 units in parallel for grid‑tied operation — enabling multi‑megawatt‑hour ESS projects.

• Parallel support (grid‑tied/off‑grid): multiple units can be combined for high capacity or backup resiliency.

• Compatible with AC coupling to PV arrays, grid, diesel generators, and EV charging infrastructures.

Advantages:

• Flexible system sizing scalable to broader commercial and industrial energy demands.

• Seamless integration with renewable generation and existing energy assets.

Robust Safety & Commercial‑Grade Protection

Multi‑Layer Safety Architecture

• Liquid‑cooling with aerogel insulation and active balancing improves safety and reduces fire risk.

• Comprehensive fire protection system including smoke & temperature detection, aerosol suppression, and sprinkler systems.

• Quick seamless backup switching (≤ 20 ms) with static transfer switch (STS) ensures continuity for critical loads.

• IP55 ingress protection and C4 corrosion resistance for outdoor or semi‑outdoor installations.

Benefits:

• Enhanced safety and asset protection for commercial environments.

• Reliable operation under varied weather and site conditions.

Smart Monitoring & Control

Intelligent System Management

• EMS 5.0 and cloud‑based remote monitoring tools available through web and mobile interfaces enable performance tracking and O&M insights.

• API and Modbus TCP support facilitates integration with third‑party energy management and automation systems.

Benefits:

• Proactive system insights and alerts for improved uptime.

• Simplified O&M with remote access and analytics.

Why Choose China Moneypro PowerStack TB125?

• High Capacity: ~261 kWh per cabinet for flexible C&I storage.

• Scalable to Multi‑MWh: Support up to ~50 units in parallel.

• Robust Thermal Control: Liquid cooling with balanced temperature control.

• Strong Safety: Multi‑layer protections and fire suppression system.

• Smart Monitoring: EMS 5.0 and cloud remote insights.

Key Specifications

• Rated Output Power: 125 kW (AC)

• Nominal Energy Capacity: ~261 kWh per cabinet

• Battery Chemistry: LiFePO₄ (LFP)

• Depth of Discharge (DOD): ~98 % (on‑grid) / ~90 % (off‑grid)

• Conversion Efficiency: ~99 % PCS max.; system RTE ≥ 90 %

• Protection Rating: IP55; C4 corrosion class

• Seamless Backup Switch Time: ≤ 20 ms (with STS)

• Operating Temperature: ~‑20 °C to 50 °C (with derating above ~45 °C)

• Humidity Range: 0 %–95 %

• Max Operating Altitude: ~3000 m

• Dimensions (W × D × H): ~1003 × 1500 × 2482 mm

• Weight: ~2.9 t

Typical Applications

• Commercial Rooftop & Ground PV + Storage: Optimizes self‑consumption and dispatchable power.

• Industrial Load Management: Peak shaving and load shifting for facilities.

• Backup Power & Resilience: Reliable standby for critical infrastructure.

• Energy Arbitrage & Grid Services: Charge at low price and discharge at peak for cost optimization.

FAQ – Common Questions

Q1: What power and capacity does this system deliver?
The China Moneypro PowerStack TB125 offers 125 kW rated output with approximately 261 kWh energy capacity per cabinet — suitable for commercial and industrial energy storage needs.

Q2: How scalable is the TB125 system?
This system supports up to ~50 units in parallel for grid‑tied applications, allowing expansion into multi‑MWh energy storage solutions.

Q3: What safety features are included?
It incorporates multi‑layer fire protection (smoke/temperature detection, aerosol & sprinkler systems), liquid cooling with active cell balancing, and rapid backup switching (< 20 ms).

Q4: Can this system operate with solar PV and other energy sources?
Yes — it supports AC coupling with PV systems, grid connection, diesel generators, and EV chargers for flexible operation.

Q5: Is remote monitoring available?
Yes — the system can be monitored and controlled remotely via cloud and mobile/web apps using EMS 5.0 with API and Modbus support.
