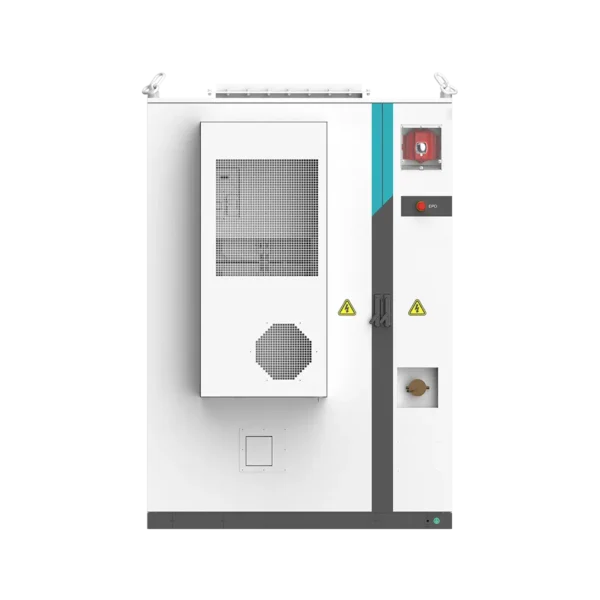

MP-OPTIM US A300-HY-3688

MP-OPTIM US A300-HY-3688

The China Moneypro A300HY Series is a high-capacity all-in-one commercial and industrial energy storage system designed for large-scale solar integration, peak shaving, and backup power applications. With modular expansion capability, high-efficiency LFP battery technology, and advanced safety protection, it delivers reliable and intelligent energy management for modern energy infrastructure.

Category:

Share your love

Efficient Energy Storage & High PERFORMANCE

Large-Scale Energy Optimization

  • Nominal battery capacity up to 313 kWh per unit
  • Flexible system expansion from 172 kWh to 1565 kWh
  • High-efficiency LiFePO₄ battery technology for stable performance
  • Round-trip efficiency up to 96% for optimized energy utilization

Benefits:

  • High-capacity energy storage for commercial and industrial sites
  • Reduced energy costs through peak shaving and load shifting

Reliable Backup & Continuous Power

Industrial-Grade Power Support

  • Rated output power options: 50 kW / 100 kW hybrid PCS
  • Fast switching time <10 ms for seamless backup power
  • Up to 5 systems in parallel for expanded capacity
  • Supports peak shaving, backup, and self-consumption modes

Advantages:

  • Reliable backup power for critical loads
  • Scalable energy storage for growing demand

Intelligent Management & Connectivity

Smart Energy Control

  • Intelligent EMS energy management system
  • Supports Peak Shaving / Energy Shifting / Backup / Self-Consumption
  • Multiple communication interfaces: RS485 / CAN / LAN
  • Remote monitoring and system optimization capability

Benefits:

  • Improved energy efficiency
  • Flexible power scheduling and optimization

Durable & Safe Design

Engineered for Harsh Environments

  • IP55 protection rating for outdoor deployment
  • Operating temperature range -20 °C to +55 °C
  • Integrated fire suppression system (Aerosol)
  • Built-in BMS and thermal management system

Advantages:

  • Reliable operation in demanding environments
  • Multi-layer safety protection

Why Choose China Moneypro A300HY?

  • Large Capacity: Up to 313 kWh per cabinet
  • Flexible Expansion: Up to 5 systems in parallel
  • High Efficiency: Round-trip efficiency up to 96 %
  • Safe & Reliable: Integrated fire protection and BMS
  • Smart Management: Advanced EMS system

Key Specifications

  • Battery Type: LiFePO₄ (LFP)
  • Nominal Capacity: 313 kWh
  • Round-trip Efficiency: 96 %
  • Rated Output Power: 50 kW / 100 kW
  • Protection Rating: IP55
  • Operating Temperature: -20 °C to +55 °C
  • Communication: RS485 / CAN / LAN
  • Parallel Support: Up to 5 systems
  • Cycle Life: >7000 cycles
  • Response Time: <10 ms

Typical Applications

  • Commercial & Industrial Facilities
  • Solar + Storage Systems
  • Peak Shaving Applications
  • Backup Power Systems
  • Micro-Grid Applications

FAQ – Common Questions

Q1: What is the capacity of China Moneypro A300HY?
The system offers 313 kWh per cabinet with scalable expansion capability.

Q2: Can the system be expanded?
Yes, the system supports up to 5 units in parallel.

Q3: What battery technology is used?
The system uses LiFePO₄ battery technology for safety and long lifespan.

Q4: Is the system suitable for outdoor installation?
Yes, with IP55 protection, the system supports outdoor deployment.

Q5: What applications is the system suitable for?
It is ideal for commercial, industrial, solar storage, and backup power applications.

Specifications

Dimension (W*D*H mm,w/o inverter) 1500*1300*2200
Weight (tons) 3.5
Working Temperature Range (℃) -20~55*
Protection Class IP55
Altitude (m) ≤3000
Humidity 0~95%
Fire extinguishing Aerosol
Cooling System Air Cooling
Cooling system consumption (kW, Cooling/Heating) 5/6.4
Aux. Power Consumption (kW, continuous/peak, incl. HVAC) 2.35/4.26
Max.parallel No. 5
Anti-corrosion C3
Certification UN38.3/UN3480/IEC62619/IEC62040-1/CE/UKCA(EMC/RED)/VDE2510-50/UL1973/UL9540A G99/VDE-AR-N 4105/EN 50549-1/EN 50549-10/EIFS 2018.2/IEC 62116/ IEC 61727/IEC 60068/IEC 61683/EN 50530
Battery Type Li-ion (LFP)
Nominal Capacity (kWh) 313
Continuous Operation C-rate 0.3C
Max.Operation Current (A) 180*2
Depth of Discharge 98% (single string)
Cycle Life ＞7000
DC Voltage Range (Vdc) 560~720 (single string)
Nominal operation current (A) 122.5*2
Round-trip Efficiency@ 0.5C-rate 96%
Rated AC Power (kW) 50/100
Rated AC Output Voltage (Vac) 400
Rated AC Output Frequency (Hz) 50/60
Max AC Current (A) 76A (Linear Load)
Overload Capacity 110%
AC PF ＞0.99 (0.8 leading ~ 0.8 lagging)
CEC Efficiency 97.4% (Max.97.8%)
Isolation Type Non-isolation
Response Time (On-Grid to Off-Grid) <10ms
Communication Type RS485 (MODBUS RTU)/LAN (MODBUS TCP/IP)/CAN
Operation Logic Peak Shaving/Energy Shifting/Self-Consumption/Backup
