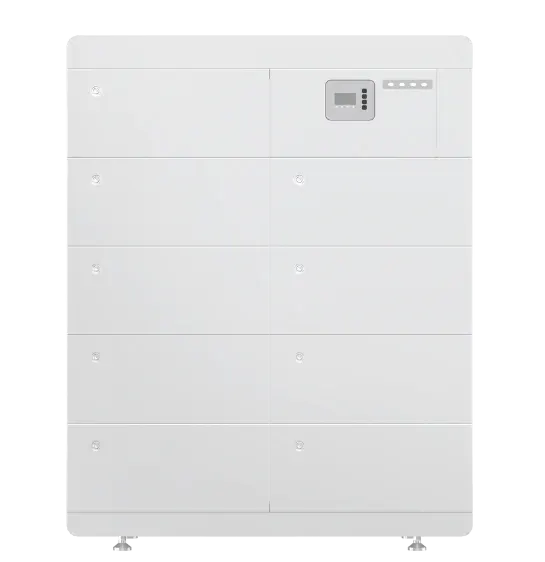

MP-StaX - M30/M50 C&I Hybrid Energy Storage System-944

MP-StaX – M30/M50 C&I Hybrid Energy Storage System-944

The China Moneypro PowerStack M50 Series is a high‑performance commercial and industrial battery energy storage system designed for flexible deployment, rapid installation, and high‑yield energy performance. Its modular stackable architecture enables scalable capacities, adaptable site layouts, and energy backup or peak management for a wide range of C&I solar systems.

Category:

Share your love

Modular, Scalable & Reliable C&I Energy Storage

The China Moneypro PowerStack M50 Series is a high‑performance commercial and industrial battery energy storage system designed for flexible deployment, rapid installation, and high‑yield energy performance. Its modular stackable architecture enables scalable capacities, adaptable site layouts, and energy backup or peak management for a wide range of C&I solar systems.

Efficient Solar Harvest & System Flexibility

Scalable & Smart Design

  • Compact stackable modular design enables rapid “stack and start” installation without heavy racks or complex wiring — ideal for varied site constraints.

  • Flexible energy capacity range from approximately 108 kWh up to ~217 kWh per system, expanding as demands grow.

  • Supports parallel operation of up to 6 units for larger energy demands and flexible power scaling.

  • Four independent MPPT trackers for optimized PV integration and maximum solar energy harvesting capability.

Benefits:

  • Tailored energy storage capacity for mid‑size to large commercial projects.

  • Flexible PV pairing and modular growth without redesigning the system footprint.

Reliable Backup & Continuous Power Support

Smart Power Performance

  • 50 kW rated output power supports load shifting, peak shaving, and continuous grid‑tied or backup operation capacity.

  • High PV input capability (up to approx. 200 %) boosts self‑consumption and improves overall system ROI.

  • Integrated smart battery management system (BMS) provides auto‑diagnostics, SOC calibration, and fault isolation to maximize lifespan and reliability.

Advantages:

  • Stable power output and enhanced energy dispatch for commercial loads.

  • Longer operational life with AI‑assisted battery balancing and protection.

Intelligent Management & Connectivity

Simplified Operation & Monitoring

  • Modular system supports remote monitoring via cloud platforms and local interfaces (optional communication modules).

  • Automatic module bypass technology ensures uninterrupted operation by isolating faulty components without full system shutdown.

Benefits:

  • Smart operational visibility and reduced downtime.

  • Easy O&M with cloud‑based analytics and remote insights.

Durable & Safe Design

Built‑for‑Purpose Protection

  • IP66 ingress protection for dust and water resistance — suitable for indoor or outdoor installations.

  • LiFePO₄ (LFP) battery chemistry delivers high thermal and chemical stability, long cycle life, and intrinsic safety.

  • Designed for a wide operating temperature range to handle demanding commercial environments.

Advantages:

  • Robust build quality and safe operation across varied climates.

  • Long‑term reliability backed by extended battery performance warranty.

Why Choose China Moneypro PowerStack M50?

  • Scalable & Stackable: Modular architecture supports easy capacity expansion up to ~217 kWh.

  • Commercial‑Grade Performance: 50 kW output with strong PV integration and efficient energy utilization.

  • Smart & Safe: Integrated BMS with AutoPilot technology and module bypass for continuous uptime.

  • Robust Protection: IP66 rating and LFP battery chemistry for safe outdoor operation.

  • Remote Monitoring: Cloud‑ready connectivity and smart diagnostic features for proactive O&M.

Typical Applications

  • Commercial Rooftop Solar + Storage: Maximize self‑consumption and mitigate peak charges.

  • Industrial Energy Management: Support production load shifting, peak shaving, and backup power.

  • Micro‑Grid & Resilience Projects: Enable resilient operation and grid‑interactive storage strategies.

  • Flexible Modular Installations: Ideal for businesses with evolving energy needs requiring phased expansion.

FAQ – Common Questions

Q1: What power rating does this system offer?
The China Moneypro PowerStack M50 delivers a 50 kW rated output suitable for small to mid‑size commercial and industrial applications.

Q2: How scalable is the energy capacity?
Capacity is modular and scalable from approximately 108 kWh to ~217 kWh per system, adapting to energy demand growth.

Q3: Can multiple units be connected together?
Yes — the system supports parallel operation of up to 6 units for expanded total capacity and power.

Q4: Is the PowerStack M50 suitable for outdoor installation?
Yes — with IP66 ingress protection and corrosion resistance, it’s fit for outdoor environments.

Q5: What safety and monitoring features are included?
It incorporates a smart BMS, auto‑diagnostics, SOC calibration, module bypass technology, and supports remote cloud monitoring solutions.

Specifications

Item Stax‑M30 Stax‑M50
System Ratings
Nominal Output Power (AC) 30 kW 50 kW
System Capacity Range 96.4 ~ 216.9 kWh 96.4 ~ 216.9 kWh
Battery Chemistry LFP (LiFePO₄) LFP (LiFePO₄)
Ingress Protection IP66 IP66
Warranty 5 Years Product Warranty; 10 Years Battery Warranty 5 Years Product Warranty; 10 Years Battery Warranty
PV Side (DC Input)
Max. PV Input Power 60 kW 100 kW
Start‑up Voltage 180 V 180 V
MPPT Voltage Range 150 ~ 850 V 150 ~ 850 V
Number of MPPT Trackers 3 3
Max. Input Current per MPPT 40 A 60 A
Max. Short‑Circuit Current per MPPT 60 A 60 A
AC Data (Grid‑Connected)
Nominal Grid Voltage 3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V 3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
Nominal Grid Frequency 50 Hz / 60 Hz 50 Hz / 60 Hz
Max. Output Current 45.6 A 76 A
Power Factor < 0.99 (adjustable 0.8 leading – 0.8 lagging) < 0.99 (adjustable 0.8 leading – 0.8 lagging)
Max. THD of Current < 3 % < 3 %
AC Data (Backup)
Nominal Backup Output Power 30 kW 50 kW
Max. Backup Output Power 105 % continuously; 160 % for 2 s 105 % continuously; 160 % for 2 s
Backup Switching Time < 10 ms < 10 ms
Backup Output Voltage 3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V 3/N/PE, 220 / 380 V; 3/N/PE, 230 / 400 V
Max. Backup Output Current 45.6 A 76 A
Max. THD of Voltage (Backup) < 2 % < 2 %
Efficiency & Performance
Max. Efficiency 97.8 % 97.8 %
European Efficiency 97.4 % 97.4 %
Max. Charge / Discharge Efficiency 98.5 % 98.5 %
General Inverter Parameters
Dimensions (W × D × H) 530 × 290 × 880 mm 530 × 290 × 880 mm
Weight 73 kg 73 kg
Operating Temperature Range -25 °C ~ 60 °C -25 °C ~ 60 °C
Operating Humidity Range 0 % ~ 95 % RH (non‑condensing) 0 % ~ 95 % RH (non‑condensing)
Noise Emission ~62 dB ~62 dB
Corrosion Protection Class C5 C5
Battery Module Specifications
Module Model M38314‑S M38314‑S
Module Capacity 12.05 kWh 12.05 kWh
Depth of Discharge (DoD) 95 % (grid); 90 % (off‑grid) 95 % (grid); 90 % (off‑grid)
Module Nominal Voltage 38.4 V 38.4 V
Max. Charging/Discharging Current 157 A* 157 A*
Battery Operating Temperature Charge: 0 °C ~ 50 °C; Discharge: -20 °C ~ 50 °C Charge: 0 °C ~ 50 °C; Discharge: -20 °C ~ 50 °C
Cycle Life Up to 8000 cycles @ end‑of‑life 70 % capacity Up to 8000 cycles @ end‑of‑life 70 % capacity
Number of Battery Modules 5 ~ 18 9 ~ 18
Battery Module Dimensions (W × D × H mm) 550 × 615 × 250 mm 550 × 615 × 250 mm
Battery Module Weight 90 kg 90 kg
Certifications
Inverter Standards IEC 62109; IEC 61000; VDE 4105; VDE 4110; TOR‑R25; G99; G100; EN50549‑1 & ‑10; C10/11; NC‑RFG Same
Battery Standards IEC 62619; IEC 62040; IEC 61000‑6‑1 / ‑2 / ‑3 / ‑4; UL9540A Same
