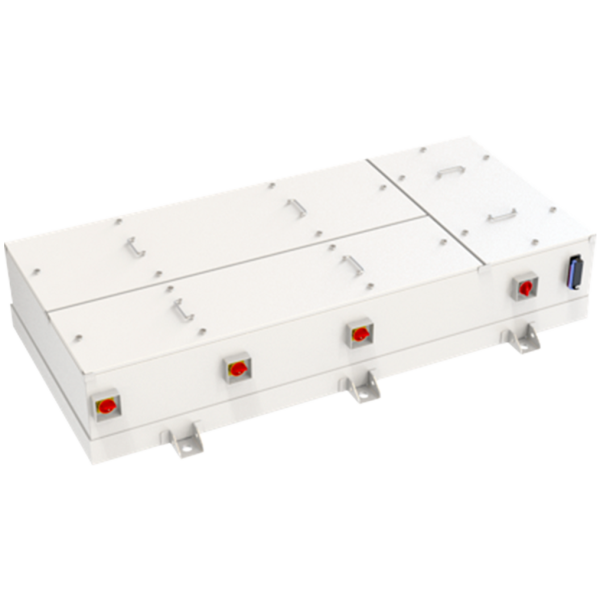

MP-SPS1000-5418

Integrated, Safe & Grid‑Ready Pitch Driver Solution

China Moneypro Pitch Driver Series is a high‑integration wind turbine blade pitch control system engineered for advanced wind energy applications. Designed with redundant safety protection, strong grid adaptability, and multi‑function monitoring, it delivers reliable and responsive pitch control for modern wind farms.

High Integration & Functional Control

Efficient Blade Pitch Management

• Integrated controller design with built‑in charging, switching power supply, and isolated digital inputs.

• Built‑in solid‑state relay (SSR) for improved response reliability.

• Multi‑drive capability supports flexible deployment on multi‑blade turbine setups.

• Dual recording and threshold trigger recording provide precise operational data logging.

Benefits:

• Centralized control and simplified wiring for faster commissioning.

• High precision tracking and recording for performance diagnostics and trend analysis.

Robust Safety & Redundancy

Multi‑Layer Security Protection

• Quadruple safety redundant design including mechanical overspeed protection and hardware safety chains.

• Communication and software safety protection ensures reliable operation under varied environmental conditions.

• Enhanced hardware security chains guard against fault propagation.

Advantages:

• Multiple safety guard layers reduce risk of system failure.

• Enhanced protection improves turbine longevity and operational uptime.

Strong Grid Adaptability

Reliable in Complex Grid Conditions

• Real‑time grid side resonance protection and harmonics detection.

• Monitors grid‑side voltage, frequency and phase sequence detection for stable operation.

• Capable of continuous operation with grid voltage from 80 % to 130 % of nominal values.

Benefits:

• Improved compatibility with variable grid networks.

• Reduced disruption during fluctuating supply or grid instability.

Smart Monitoring & Operational Insights

Intelligent Recording & Diagnostics

• 1 ms‑level high‑accuracy recording captures detailed operational events.

• Offline upgrade system support enhances maintainability and long‑term system health.

• Dual‑drive function provides fallback control in critical turbine operations.

Benefits:

• High‑fidelity diagnostics for streamlined troubleshooting.

• Smart record triggers enable automated alert thresholds for proactive maintenance.

Why Choose China Moneypro Pitch Driver?

• High Integration: Combines power, control, and protection in one unit.

• Redundant Safety Design: Four layers of functional safety protection.

• Excellent Grid Compatibility: Strong detection and protection against grid‑side issues.

• Smart Monitoring: Advanced recording and operational insights.

• Multi‑Drive Support: Flexible for 1–3+ blade systems or modular wind arrays.

Typical Applications

• Wind Turbine Blade Pitch Control: Precision pitch system for utility and commercial wind turbines.

• Wind Farm Grid Integration: Ensures turbine stability under variable grid conditions.

• Wind Power Safety Systems: Redundant safety chains for turbine protection and fault mitigation.

• Multi‑Drive Turbine Control Clusters: Flexible deployment in multi‑drive or modular configuration.

FAQ – Common Questions

Q1: What is the Pitch Driver used for?
It is a blade pitch control system used in wind turbines to adjust blade angle and regulate energy capture and turbine speed under variable wind conditions.

Q2: How does it improve safety?
It incorporates a quadruple safety redundant design covering mechanical overspeed protection, hardware security chains, communication safety, and software safety layers.

Q3: Is it compatible with grid voltage variations?
Yes — the Pitch Driver supports stable operation even when grid voltage fluctuates between 80 %–130 % of nominal.

Q4: What kind of monitoring does it support?
It offers 1 ms‑level high‑accuracy operational recording with dual drive and threshold recording functions.

Q5: Can it be used on different turbine sizes?
The Pitch Driver Series is scalable and flexible for diverse wind turbine installations and multi‑drive configurations.
