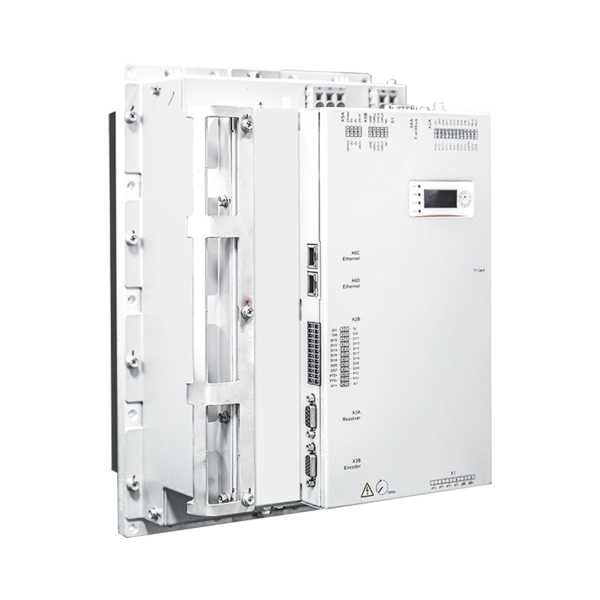

MP-SPD101-44/45 Stable Pitch Drivers-1090

Integrated, Reliable & Safe Wind Turbine Pitch Control

The China Moneypro Pitch Driver Series is a high‑integration blade pitch control driver solution designed for precision control of wind turbine blade angles. It enables efficient power capture, turbine protection, and reliable operation in diverse grid conditions, making it suitable for modern onshore and offshore wind power applications.

Precision Pitch Control & Enhanced Safety

High‑Integration Control Technology

• Integrated charging, braking, switching power supply and control functions simplify system architecture and reduce installation complexity.

• Built‑in solid state relays (SSR) and isolated digital inputs ensure high reliability and signal integrity.

• Quadruple redundant safety design — including overspeed protection, hardware protection chain, communications protection and software protection chain — enhances system safety and turbine reliability.

Benefits:

• Precise and responsive blade pitch control for optimal aerodynamic performance.

• Multiple safety layers reduce risk of fault propagation.

Strong Grid Adaptability & Intelligent Features

Adaptive Operation in Grid Variability

• Grid‑side resonance and harmonics detection supports operation under unstable grid conditions.

• Monitors and responds to grid voltage, frequency and phase sequence for robust interaction with utility networks.

• Maintains normal operation across 80 %–130 % grid voltage range, ensuring resilience during voltage fluctuations.

• Integrated offline firmware upgrade, high‑precision (1 ms) recording, dual recording and threshold trigger recording support long‑term diagnostics and maintenance planning.

Benefits:

• Enhanced reliability in varied grid environments.

• Detailed performance logging and diagnostic capability support improved turbine uptime.

Modular Product Variants for Different Turbine Classes

Tailored Versions for Flexible Deployment

The China Moneypro Pitch Driver Series includes multiple driver models to meet the needs of different turbine power classes and application scenarios:

• SPD 100‑45/55 – Standard pitch driver model with essential control features.

• SPD 101‑45/55 – Enhanced version with extended capabilities and reliability.

• SPD 110‑80 – High‑performance and high‑integration pitch driver suitable for larger turbine systems.

Advantages:

• Multiple variants allow matching driver solutions to turbine rating and site requirements.

• Standardized elements simplify deployment across wind farm fleets.

Why Choose China Moneypro Pitch Driver?

• High System Integration: Combines multiple control and power functions into a compact, reliable unit.

• Quadruple Redundant Safety: Multi‑layer protection enhances turbine reliability and reduces risk.

• Grid Adaptability: Resilient operation under voltage, frequency, and phase variations seen in wind farm grids.

• Advanced Diagnostics: Supports offline upgrades, high‑precision recording, and threshold‑triggered logging for effective O&M.

• Flexible Product Portfolio: Variety of models to suit different turbine power classes and control strategies.

Key Capabilities (Generalized)

Note: Specific technical parameters vary by model and project — the below reflects common capabilities across the driver series.

• Control Functions: Integrated charging, braking, switching power supply management.

• Safety Redundancy: Overspeed, hardware chain, communications, and software protections.

• Grid Monitoring: Voltage, frequency, phase sequence detection for stable operation.

• Adaptive Grid Voltage Range: Normal operation at 80 %–130 % grid voltage.

• Diagnostics: 1 ms‑level recording, dual recording, threshold triggers, offline upgrades.

• Signal Integrity: Built‑in SSR and isolated digital I/O inputs.

Typical Applications

• Onshore Wind Turbines: Precision pitch control for medium to large turbine installations.

• Offshore Wind Farms: Reliable pitch management under grid disturbances and harsh environmental conditions.

• Wind Turbine Retrofitting: Upgrade legacy turbines to modern control electronics.

• Fleet Standardization: Unified pitch driver deployment across multi‑turbine wind farms.

FAQ – Common Questions

Q1: What does a pitch driver do in a wind turbine?
A pitch driver controls the blade‑angle mechanism in wind turbines, optimizing aerodynamic performance and providing protective braking when needed.

Q2: How does the pitch driver handle unstable grid conditions?
It includes grid‑side resonance and harmonics detection, and monitors voltage, frequency, and phase sequence, enabling operation across a wide grid voltage range.

Q3: Are there multiple models?
Yes — the series includes variants like SPD 100‑45/55, SPD 101‑45/55, SPD 110‑80, each tailored to different turbine sizes and performance requirements.

Q4: Can the pitch driver support diagnostics and upgrades?
Yes — it supports offline upgrades and high‑accuracy recording for maintenance and troubleshooting.

Q5: Is this suitable for offshore turbines?
Yes — with robust grid adaptability and redundant safety design, it’s suitable for both onshore and offshore wind farms.
