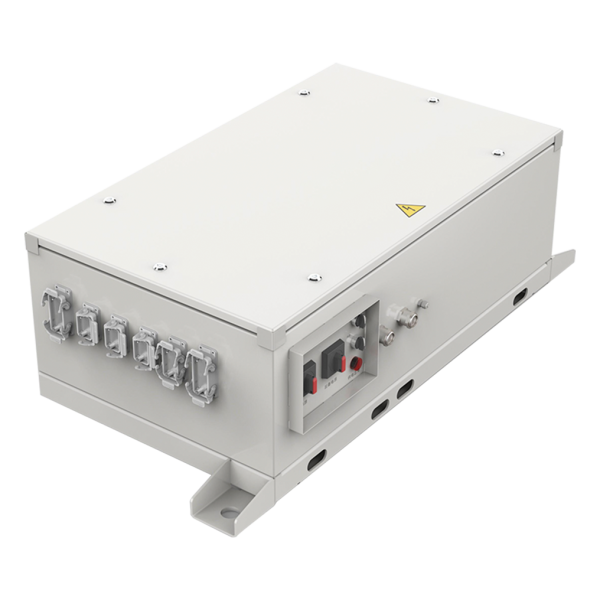

MP-SPS100-3513

Integrated, Safe & High‑Adaptability Pitch Drive Solution

The China Moneypro Pitch Driver Series is a high‑integration pitch control system engineered for wind turbine blade pitch regulation. Designed with multi‑layer safety redundancy, strong grid adaptability, and advanced monitoring features, it delivers precise pitch action, robust operational reliability, and safe integration for wind turbine applications in global markets.

High Integration & Intelligent Control

All‑in‑One Functionality

• Integrated charging, braking, switching power supply, and pitch drive units for simplified system architecture.

• Built‑in switch and solid‑state relay (SSR) support reliable electrical control.

• Isolated digital input improves signal integrity and reduces interference.

Benefits:

• Reduced component count and easier on‑site installation.

• Enhanced control accuracy and system compactness.

Quadruple Safety Redundant Design

Robust Operational Protection

• Multiple safety chains — impeller overspeed protection, hardware security chain, communications protection, software security chain — ensure reliable drive safety under diverse conditions.

• Real‑time monitoring of operational status prevents hazardous conditions during wind turbine pitch modulation.

Advantages:

• Layered safety helps reduce system failure risks.

• Improved operational longevity in harsh environments.

Strong Grid Adaptability & Diagnostic Capabilities

Reliable Power & Intelligent Recording

• Detects grid‑side resonance, harmonics, voltage, frequency, and phase sequence — enhancing stability during variable grid conditions.

• Designed to operate normally under 80 %–130 % grid voltage ranges.

• Multi‑function integration includes offline upgrade system, 1 ms‑level accurate event recording, dual recording and threshold trigger recording, and dual drive functions for flexible deployment.

Benefits:

• Enhanced adaptability to grid fluctuations and disturbances.

• Detailed operational logs support faster fault diagnosis and resolution.

Why Choose China Moneypro Pitch Driver?

• High Integration: Combines key drive and control elements into one compact unit.

• Multi‑Layer Safety: Quadruple safety redundancy for reliable long‑term operation.

• Grid Resilience: Designed to handle broad grid voltage and frequency variations.

• Precision & Recording: High‑accuracy recording and dual‑drive support improve monitoring and control response.

Typical Applications

• Wind Turbine Pitch Control: Drive and regulate blade angles for optimal power extraction.

• Wind Farm Operational Stability: Ensures pitch modulation response in variable wind and grid conditions.

• Integrated Turbine Safety Systems: Works with turbine control units to protect against overspeed and abnormal grid events.

FAQ – Common Questions

Q1: What is a Pitch Driver?
A Pitch Driver is a control device that regulates the blade angle (pitch) of wind turbines to optimize power output and protect turbines under high wind or grid irregularities.

Q2: How does this series ensure safety?
The system employs quadruple safety redundancy — covering mechanical overspeed protection, hardware and communications security chains, and software safety logic — to maintain safe drive performance.

Q3: Is it suitable for variable grid conditions?
Yes — it monitors grid voltage, frequency, harmonics, phase, and resonance, and supports stable operation when grid voltage varies between 80 % and 130 % of nominal levels.

Q4: What diagnostic capabilities are included?
The Pitch Driver supports high‑resolution event recording, threshold triggers, dual recording logs, and offline upgrade features to facilitate analysis and maintenance.

Q5: Where is this product typically deployed?
It’s deployed in modern wind turbines for precise pitch control — from single turbines to large wind farms requiring reliable blade regulation and adaptive grid support.
