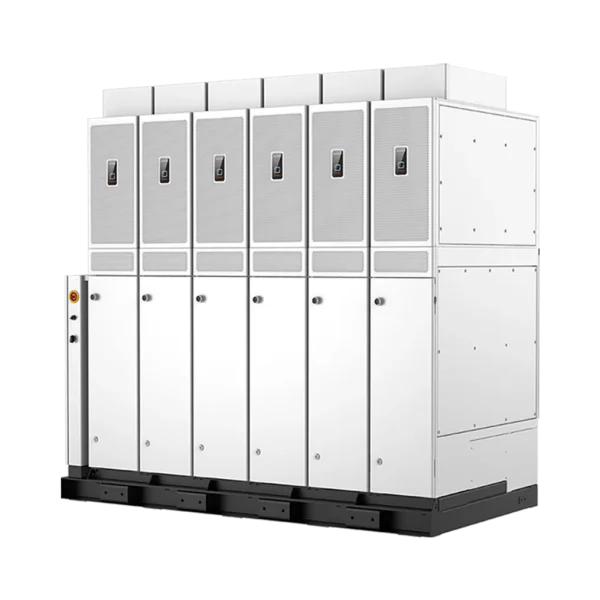

MP-SG4680UD-4138

Flexible Modular Design to Lower LCOE

Large utility PV projects often struggle with rigid layouts and high energy costs. The China Moneypro SG4680UD-20 features a modular 1500Vdc system that supports flexible sub-array capacity, allowing developers to tailor the system size, reduce upfront investment, and maximize energy yield.

Intelligent Operation & Maintenance

Rapid Fault Recovery with Split Design

• Split modular design enables maintenance within 1 hour for any faulty module.

• Advanced intelligent fault location, real-time monitoring, and active fault warning simplify operations.

• AI-powered air duct monitoring with self-cleaning removes the need for daily manual maintenance.

Operational Benefits:

• Minimizes downtime

• Reduces O&M costs

• Improves overall system reliability

Advanced Safety Features

DC Parallel Arc Protection

• Protects PV modules by cutting arcs in 40 ms.

• 24-hour AC and DC insulation monitoring ensures system safety and continuous operation.

Advantages:

• Protects personnel and assets

• Prevents fire and electrical hazards

• Ensures system reliability even in unattended installations

Proactive Grid-Forming Capability

Fast & Adaptive Grid Support

• PV grid-forming provides daily reactive voltage support.

• Active adaptation to strong and weak grids ensures optimal performance under variable conditions.

• Ultra-fast 20 ms reactive power dispatch improves grid stability.

Grid Benefits:

• Maintains voltage and frequency stability

• Reduces penalties from grid non-compliance

• Supports earlier COD (Commercial Operation Date)

Technical Highlights

• Max PV Input Voltage: 1500 V

• Rated Output Power: 4687.5 kVA

• Nominal AC Voltage: 660 V

• Max Efficiency: 99%

Applications

Utility-Scale PV Plants

Ideal for large-scale 1500Vdc projects, offering modular deployment, intelligent O&M, and high safety standards.

High-Reliability Operations

Split modular design and AI monitoring enable rapid maintenance and minimal downtime, ensuring continuous power generation.

Advanced Grid Interaction

Supports daily reactive power management, grid-forming capabilities, and adaptive performance in strong or weak grids.

FAQ ?C Key Questions

Q1: How does the modular system reduce energy costs?
Flexible sub-array design allows tailoring capacity to project needs, lowering the LCOE and initial investment.

Q2: How quickly can a module be serviced?
With the split modular design, faulty modules can be replaced within 1 hour.

Q3: What safety protections are included?
DC parallel arc protection (40 ms) and 24-hour insulation monitoring ensure module and system safety.

Q4: Can it adapt to variable grid conditions?
Yes, it actively adapts to strong or weak grids and supports 20 ms ultra-fast reactive power dispatch.

Q5: Does it require daily air duct cleaning?
No. AI monitoring and self-cleaning maintain air duct health automatically.

Why Choose China Moneypro

The SG4680UD-20 is a next-generation 1500Vdc modular PV inverter delivering high efficiency, intelligent O&M, proactive safety, and advanced grid-forming support, making it ideal for large-scale solar plants seeking lower LCOE, maximum uptime, and reliable grid integration.
