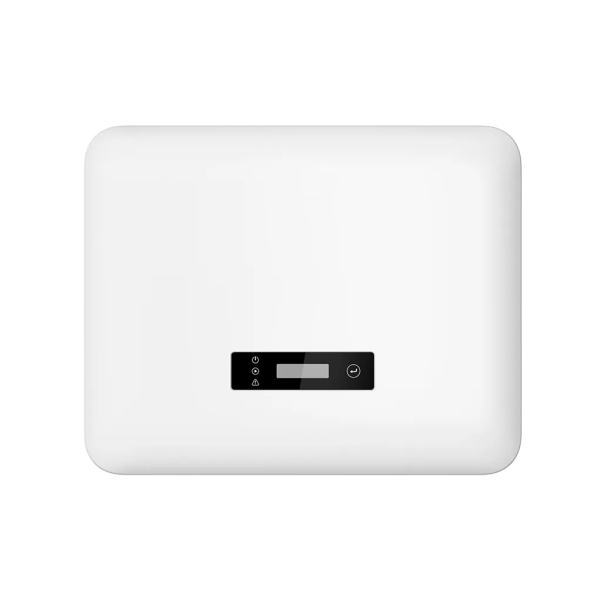

MP-SDT G3 Series 4-30kW Three Phase Inverter-7234

Powerful & Flexible Three‑Phase PV Conversion for Residential & Commercial Systems

The China Moneypro SDT G3 Series is a high‑performance three‑phase string inverter engineered for both residential and small commercial PV projects. Designed to maximize solar generation across diverse system layouts, this series supports 150 % DC oversizing and 110 % AC overloading to allow more PV capacity and handle higher output power than traditional limits. With a compact, lightweight design, easy installation, and intelligent energy management features, it’s ideal for rooftops where performance, safety, and reliability matter.

Advanced Energy Capture & Optimization

Get More from Your PV Array

• 150 % DC oversizing capability lets you connect a larger PV array relative to the inverter size, boosting overall energy output.

• 110 % AC overloading support enhances output flexibility during peak generation periods.

• Up to 22 A max. DC input current per string provides compatibility with high‑power PV modules.

• Dual MPPTs improve energy harvest under partial shading and complex rooftop layouts.

Benefits:

• Maximized daily solar generation.

• Enhanced flexibility for array design and string layout.

Smart Monitoring & Intuitive Control

Intelligent Energy Management

• 24/7 load consumption monitoring delivers insights into energy use and system performance.

• Integrated export power limitation control enables compliance with local grid feed regulations.

• Compact design with multiple communication support simplifies monitoring and O&M.

Advantages:

• Easily track energy production and consumption patterns.

• Optimized self‑consumption and grid interaction.

• Remote diagnostics for quicker troubleshooting.

Reliable Safety & Outdoor Durability

Comprehensive Protection Features

• Optional AFCI (Arc Fault Circuit Interrupter) detects arc faults early and triggers alarms for enhanced safety.

• Optional Type II Surge Protection Device (SPD) on both AC and DC sides protects against lightning and electrical surges.

• IP66 ingress protection ensures resistance to dust and water for outdoor durability.

• Low DC startup voltage enables generation early in the morning and later in the evening.

Benefits:

• Enhanced PV system safety against electrical hazards.

• Long‑term outdoor reliability in varied climates.

• Quiet operation suited for residential and commercial rooftops.

Why Choose China Moneypro SDT G3 Series?

• Higher Yield: 150 % DC oversizing and 110 % AC overloading maximize energy production.

• Flexible Design: Dual MPPTs adapt to complex rooftop layouts.

• Smart Monitoring: Real‑time load consumption and export control improve energy control.

• Robust Safety: Optional AFCI and SPD protections enhance system security.

• Reliable & Quiet: IP66 protection and natural cooling support silent, long‑lasting operation.

Key Specifications

(Values based on official SDT G3 series information; specific models may vary)

• Power Range: ~4 kW to ~30 kW (depending on model)

• Max. DC Input Voltage: ~1100 V

• Max. DC Input Current per MPPT: up to ~22 A

• MPPT Trackers / Strings per MPPT: 2 / 1

• Nominal AC Output Voltage: 220/380 V, 230/400 V, 240/415 V (3L/N/PE or 3L/PE)

• Max. Efficiency: up to 98.6–98.8 %

• Ingress Protection: IP66

• Weight: varies by model (~15 – 17 kg range)

Typical Applications

• Residential Rooftops: Three‑phase PV systems for large home installations.

• Small Commercial PV: Offices, shops, and light commercial rooftops.

• Smart Grid Integration: Optimized for export control and energy monitoring.

• Silent Environments: Quiet natural cooling suits noise‑sensitive locations.

FAQ – Common Questions

Q1: What power sizes are included in the SDT G3 Series?
The series ranges from approximately 4 kW up to ~30 kW, covering residential and small commercial needs.

Q2: Can this inverter handle more PV capacity than its rating?
Yes — it supports 150 % DC oversizing and 110 % AC overloading for increased energy capture.

Q3: How does the inverter improve safety?
Optional AFCI and Type II SPD help detect arc faults and protect against surges.

Q4: Is this inverter suitable for outdoor installation?
Yes — with IP66 protection, it’s designed for outdoor rooftop environments.

Q5: Does the SDT G3 support smart energy monitoring?
Yes — it can provide 24/7 load consumption monitoring and export power control when paired with the right accessories.
