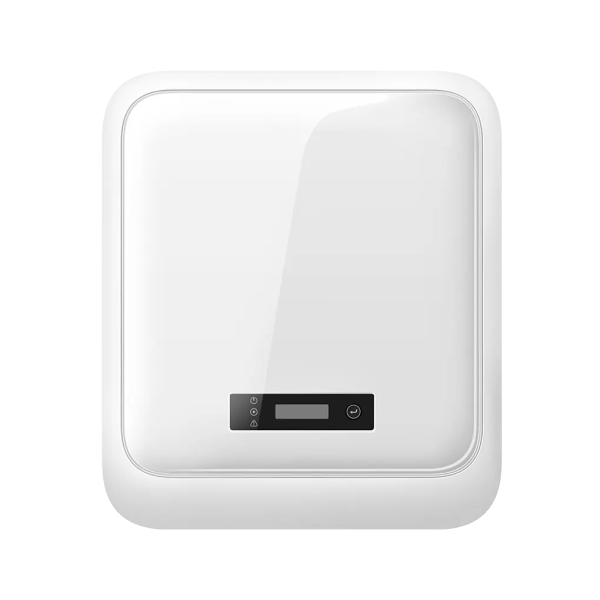

MP-MS G3 Series 5-10kW Single Phase Inverter-312

Efficient & Intelligent Residential PV Power Inverter

The China Moneypro MS‑G3 Series is designed for residential grid‑tied solar installations requiring large capacity, flexible array configuration, and high energy yield. With three MPPT trackers and ultra‑low startup voltage, this series maximizes solar generation throughout the day. Featuring smart energy management capabilities, robust protection options, and a fanless quiet design, it’s tailored for modern homes with complex rooftop layouts and high‑power PV modules.

High Yield & Flexible Power Conversion

Maximize Solar Energy Generation

• 3 MPPT trackers deliver greater flexibility for varied module orientations and partial shading.

• Ultra‑low 50 V startup voltage enables early morning and late‑day generation, increasing daily output.

• Up to 20 A max DC input current per string supports high‑power PV modules for lower LCOE.

• PID recovery function helps recover power losses due to potential‑induced degradation (optional).

• Max. efficiency ~97.9 % ensures excellent energy conversion performance across models.

Benefits:

• Higher overall energy harvest even in low irradiation conditions.

• Supports larger and more versatile PV array designs.

• Reduces long‑term cost of energy through superior power utilization.

Smart Monitoring & Operation

Intelligent Energy & Load Management

• 24/7 load consumption monitoring helps homeowners track energy usage around the clock.

• Dry contact for smart load control enables intelligent management of high‑power loads like HVAC or heat pumps.

• Export limiting and energy flow adjustment can be added through compatible HomeKit or management devices.

Advantages:

• Better insight into household energy patterns.

• Integration with smart home and load‑control systems.

• Easy tracking and adjustment of system performance.

Built‑In Safety & Reliable Performance

Robust Protection for Peace of Mind

• Optional Arc‑Fault Circuit Interrupter (AFCI) enhances electrical safety by detecting arc faults.

• Optional Type II Surge Protection Device (SPD) guards against surges and lightning events.

• IP66 ingress protection ensures reliable operation in outdoor environments.

• Fanless natural convection cooling achieves quiet performance suitable for residential settings.

Benefits:

• Enhanced electrical safety and reduced fire risk.

• Reliable durability in harsh weather.

• Quiet, maintenance‑free operation.

Why Choose China Moneypro MS‑G3 Series?

• Greater Energy Capture: Triple MPPT and ultra‑low startup voltage boost generation potential.

• Flexible PV Design: High DC input current support enables larger panel arrays.

• Smart Energy Control: Load monitoring and dry contact load control enhance residential operability.

• Robust Safety: AFCI and SPD protections offer advanced electrical safety options.

• Quiet & Practical: Fanless design ensures silent operation and easy indoor/outdoor setup.

Key Specifications

• Power Range: 5 ~ 10 kW single‑phase inverter (series models).

• MPPT Trackers: 3.

• Max. DC Input Voltage: ~600 V.

• DC Startup Voltage: ~50 V.

• Max. DC Input Current per MPPT: 20 A.

• Nominal AC Voltage: 220/230/240 V.

• Max. Efficiency: ~97.9 % (varies slightly by model).

• Ingress Protection: IP66.

• Weight: ~19 kg (depends on model).

Typical Applications

• Residential Rooftops: Ideal for homes with large PV installations.

• Complex Roof Layouts: Triple MPPT supports diverse module orientations.

• Smart Homes: Integrates load monitoring and intelligent load control.

• Quiet Environments: Fanless design ensures low operational noise.

FAQ – Common Questions

Q1: What PV array size can MS‑G3 support?
With up to 20 A input per string and 3 MPPTs, MS‑G3 supports larger PV arrays and optimized layouts.

Q2: Does it handle partial shading well?
Yes — three MPPT trackers allow better performance under partial shading or varied roof orientations.

Q3: How early can it generate power in the morning?
With a 50 V startup voltage, it produces power earlier in the day and later in the evening.

Q4: What safety options are available?
Optional AFCI and Type II SPD help protect against arc faults and surges.

Q5: Is this inverter suitable for indoor installation?
Yes — its elegant compact design and fanless cooling make it ideal for indoor or sheltered installations.
