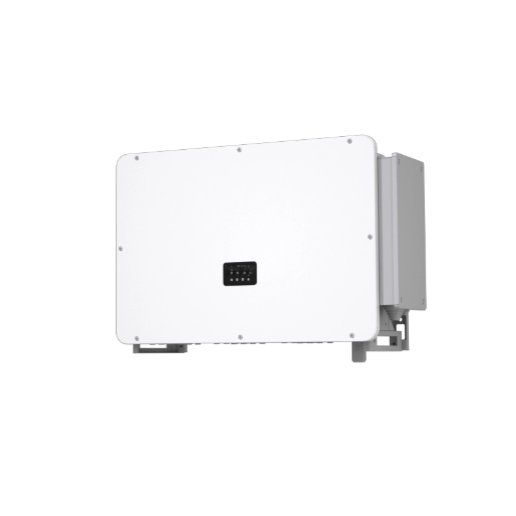

MP-X3-FORTH | 75-150kW Three Phase Inverter-7616

MP-X3-FORTH | 75-150kW Three Phase Inverter-7616

The China Moneypro X3‑FORTH Series is a powerful three‑phase string solar inverter engineered for commercial and large‑scale solar systems. It delivers high conversion efficiency, flexible PV configuration, robust energy harvesting, and intelligent operation features. Its compact, lightweight design with advanced cooling ensures long‑term stability and strong performance across demanding installation scenarios.

Category:

Share your love

Efficient, Scalable & Reliable Commercial Solar Inverter

The China Moneypro X3‑FORTH Series is a powerful three‑phase string solar inverter engineered for commercial and large‑scale solar systems. It delivers high conversion efficiency, flexible PV configuration, robust energy harvesting, and intelligent operation features. Its compact, lightweight design with advanced cooling ensures long‑term stability and strong performance across demanding installation scenarios.

High Solar Harvest & Intelligent Performance

Maximize PV Energy Yield

  • Achieves up to ~99 % maximum efficiency for high energy conversion.

  • Supports 150 % PV oversizing input and 110 % output overloading, adapting to larger PV arrays and peak generation.

  • Features up to 12 MPPTs, each with 32 A max input current, enabling flexible string layouts and optimal energy capture.

  • Wide 180–1000 V DC MPPT voltage range for compatibility with diverse PV modules.

Benefits:

  • Enhanced energy harvest with flexible PV system design and high conversion performance.

  • Strong compatibility with commercial PV farms and rooftop systems.

Intelligent Design & Easy Operation

Built for Smart & Efficient Deployment

  • Built‑in export power control allows export limitation and grid compliance settings.

  • Remote settings and firmware updates support streamlined maintenance.

  • Night‑time reactive power compensation improves grid interaction and system stability.

  • Smart air cooling enhances heat dissipation and extends fan lifetime, reducing maintenance needs.

  • I–V curve diagnosis enables quick PV array health assessment.

  • 24‑hour system monitoring provides continuous performance insights.

Advantages:

  • Simplified operation and remote management capability.

  • Longer system lifespan with lower maintenance overhead.

Durable & Safe Engineering

Built‑In Protection for Commercial Use

  • IP66 ingress protection rating for strong resistance to dust and water in outdoor installations.

  • Optional AFCI protection (arc‑fault circuit interrupter) for enhanced electrical safety.

  • AC terminal over‑temperature detection improves reliability under heavy load.

  • Both AC & DC Type II SPD protection helps guard against surge events (optional Type I+II SPD available).

Benefits:

  • Multiple safety layers protect personnel and connected equipment.

  • System design tailored for long‑term field operation.

Why Choose China Moneypro X3‑FORTH?

  • High Conversion Efficiency: Up to ~99 % for robust performance.

  • Flexible PV Input: Up to 150 % PV oversizing and wide MPPT range.

  • Large‑Scale Compatibility: Up to 12 MPPTs with dual strings support.

  • Smart & Remote Operation: Built‑in export control, reactive power support, and remote management.

  • Commercial‑Grade Safety: IP66 protection and optional AFCI/AC‑DC SPD safeguards.

Typical Applications

  • Commercial Solar Installations: Rooftops and ground‑mount PV systems with high energy demand.

  • Industrial Power Generation: Large‑capacity energy production with flexible configuration.

  • Utility & C&I PV Sites: Scalable support for ambitious PV arrays and grid‑connected systems.

  • Smart Energy Management: Supports advanced monitoring and reactive power compensation.

FAQ – Common Questions

Q1: What power ratings are available in the X3‑FORTH series?
China Moneypro X3‑FORTH is available in 75 kW, 80 kW, 100 kW, 110 kW, 120 kW, 125 kW, 136 kW, and 150 kW variants.

Q2: How many MPPTs does this inverter support?
It supports up to 12 independent MPPTs with up to 2 strings per tracker, enabling flexible PV configurations.

Q3: Can the inverter operate outdoors?
Yes — the unit has an IP66 ingress protection rating, making it suitable for outdoor commercial installations.

Q4: Does this model support export power control?
Yes — the series features built‑in export power control for grid compliance and export limitation.

Q5: Are safety protections included?
Yes — multiple safety features include AC/DC SPD protection, optional AFCI, and AC terminal over‑temperature detection for enhanced reliability.

Specifications

Technical Data
X3-Forth-4K
X3-Forth-5K
X3-Forth-6K
X3-Forth-8K
X3-Forth-10K
X3-Forth-12K
X3-Forth-15K
PV INPUT
Max. recommended PV array power
8 kWp
10 kWp
12 kWp
16 kWp
20 kWp
24 kWp
30 kWp
Max. PV input voltage
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
1000 V
Rated PV input voltage
600 V
600 V
600 V
600 V
600 V
600 V
600 V
Operating voltage range
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
90 ~ 950 V
MPPT voltage range
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
110 ~ 950 V
Start-up voltage
140 V
140 V
140 V
140 V
140 V
140 V
140 V
No. of MPP trackers / Strings per MPP tracker
2 / (1/1)
2 / (1/1)
2 / (1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
3 / (1/1/1)
Max. input current per MPPT (MPPT1/2/3)
20 A / 20 A
20 A / 20 A
20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
20 A / 20 A / 20 A
Max. input short circuit current per MPPT
25 A / 25 A
25 A / 25 A
25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
25 A / 25 A / 25 A
AC INPUT & OUTPUT (ON-GRID)
Rated output power
4000 W
5000 W
6000 W
8000 W
10000 W
12000 W
15000 W
Rated output current
5.8 A
7.3 A
8.7 A
11.6 A
14.5 A
17.4 A
21.8 A
Max. output apparent power
4400 VA
5500 VA
6600 VA
8800 VA
10000 VA
13200 VA
16500 VA
Max. output continuous current
6.1 A
8.4 A
10 A
13.4 A
15.2 A
20.0 A
25.0 A
Rated AC voltage
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
3/N/PE, 220/380 V; 3/N/PE, 230/400 V
Max. AC input apparent power
8 kVA
10 kVA
12 kVA
16 kVA
20 kVA
20 kVA
20 kVA
Max. AC input current
12.9 A
16.1 A
19.3 A
25.8 A
32.0 A
32.0 A
32.0 A
Rated AC frequency
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz / 60 Hz
AC frequency range
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
50 ± 5 Hz / 60 ± 5 Hz
Adjustable power factor range
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
~1 (0.8 lagging to 0.8 leading)
THDi (rated power)
<3%
<3%
<3%
<3%
<3%
<3%
<3%
BATTERY
Battery type
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Battery voltage range
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
160 ~ 800 V
Max. charge / discharge current
60 A
60 A
60 A
60 A
60 A
60 A
60 A
EPS (OFF-GRID) OUTPUT (WITH BATTERY)
Rated EPS output voltage, frequency
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
230 V / 400 V, 50 Hz / 60 Hz
Rated EPS output power
4 kVA
5 kVA
6 kVA
8 kVA
10 kVA
12 kVA
15 kVA
Peak EPS output power
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
2 times of rated power, 10 s
Switchover time
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
<10 ms
EFFICIENCY
Max. efficiency
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
98.0%
European efficiency
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
97.7%
ENVIRONMENT LIMIT
Ingress protection
IP66
IP66
IP66
IP66
IP66
IP66
IP66
Operating ambient temperature range
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
-35 ~ 60°C (>45°C derating)
Max. operating altitude
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
3000 m
Relative humidity
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
0 ~ 100% RH (condensing)
Overvoltage category
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
Mains: I, Battery: II, PV: II
GENERAL
Dimensions (W × H × D)
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
717 × 405 × 209.5 mm
Net weight
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
40 kg
Cooling concept
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Natural cooling
Communication interfaces
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
RS485, Pocket-X, CAN + RS485, DO, DI
Power consumption (night)
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
<40 W for hot standby, <5 W for cold standby
Topology
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Non-isolated
Certificates and approvals
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
IEC62109-1 / IEC62109-2, VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / G99 / AS4777 / EN50549 / CEI 0-21
AC auxiliary power supply (APS)
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
Built-in
PROTECTION
Protections
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Overvoltage protection, Undervoltage protection, Overfrequency protection, Underfrequency protection, Residual current detection, Over-temperature protection, DC isolation protection, Grid monitoring, DC injection monitoring, Back feed current protection
Active anti-islanding method
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Frequency shift
Surge protection (DC / AC)
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
DC: Type II, AC: Type II
Arc-fault circuit interrupter (AFCI)
Optional
Optional
Optional
Optional
Optional
Optional
Optional
