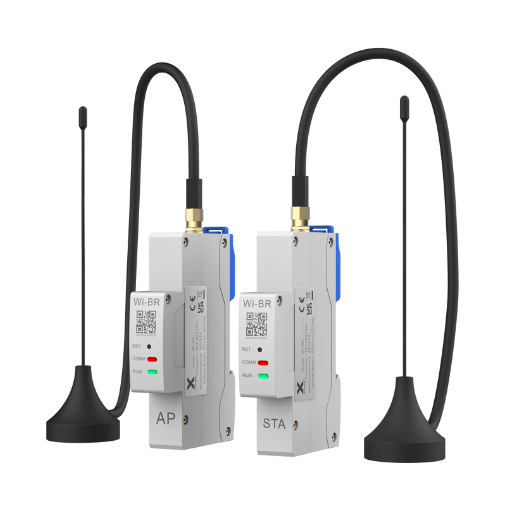

MP-Wireless Bridge-6721

Reliable & Flexible Wireless Connectivity for Energy Systems

The China?Moneypro Wireless Bridge (Wi?BR) is a compact wireless communication adapter designed to bridge energy system components such as smart meters and inverters over reliable long?range wireless links. With wide coverage, strong penetration ability, and flexible adaptability to both single? and three?phase meters, it enhances system monitoring and data flow in smart energy deployments.

Wide Coverage & Stable Data Transmission

Efficient Wireless Communication

• Provides efficient and stable data transmission up to 200?m in open environments, improving system communication reach.

• Strong vertical signal penetration supports coverage through up to 4 floors (~30?m vertical) in typical installations.

• Uses IEEE 802.11ah wireless protocol (Wi?Fi HaLow) optimized for long?range, low?power communication.

Benefits:

• Reliable wireless communication for smart metering and energy system monitoring.

• Extended coverage for complex installation environments.

Intelligent Design & Adaptability

Flexible Installation & Compatibility

• DIN?rail mounting supports flexible installation in electrical cabinets and enclosure racks.

• Compatible with both single?phase and three?phase meters, enabling broad application across residential and commercial sites.

• Supports operation in AP/STA modes for flexible network configurations.

Advantages:

• Easy integration in existing electrical infrastructure.

• Cross?platform compatibility with diverse metering equipment.

Robust Performance & Environmental Suitability

Designed for Real?World Conditions

• Operates over a wide phase voltage range (85??C?277?VAC), suitable for various power environments.

• Ultra?low power consumption (~2?W) minimizes energy draw.

• Wide operating temperature range (?25???C to 55???C) ensures reliable performance in fluctuating climates.

• Compact form factor and IP20 protection rating for cabinet?mounted use.

Benefits:

• Stable operation under diverse environmental conditions.

• Compact and efficient design for integrated system deployment.

Why Choose China?Moneypro Wireless Bridge?

• Wide Wireless Coverage: Up to 200?m stable data transmission for extended reach.

• Strong Penetration: Maintains communication through multi?floor environments.

• Smart Compatibility: Works with single? and three?phase meters for flexible system integration.

• Intelligent Design: DIN?rail installation and low power draw for practical deployment.

• Reliable Performance: Designed for industrial?grade conditions with a wide operational range.

Typical Applications

• Smart Metering Communication: Wireless connectivity between meters and energy gateways.

• Grid Monitoring & Control: Support data transmission in smart grid monitoring networks.

• Energy Management Systems: Enhances communication in residential and commercial solar + storage deployments.

• Industrial Wireless Data Links: Stable data transmission for remote equipment monitoring.

FAQ ?C Common Questions

Q1: What is the China?Moneypro Wireless Bridge used for?
It is a wireless communication module that enables stable data exchange between smart meters and energy system control units, supporting monitoring and networking functions.

Q2: How far can the wireless signal reach?
The bridge supports efficient and stable wireless data transmission up to 200?m in open environments, with vertical penetration capacity through up to 4 floors.

Q3: What installation method does it use?
The device supports DIN?rail mounting inside electrical cabinets or racks for convenient integration.

Q4: Which meters are compatible with the Wireless Bridge?
It is compatible with both single?phase and three?phase meters, making it suitable for diverse metering systems.

Q5: What are the key environmental specifications?
Operational range includes ?25???C to 55???C temperature, 85??C?277?VAC power supply, and up to 2000?m altitude storage/operation suitability.
