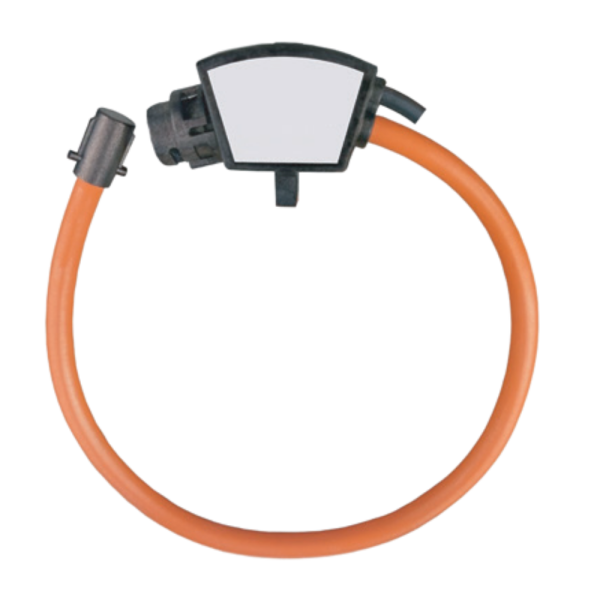

MP-Rogowski Coil-4718

Flexible, Reliable & High?Current Monitoring Sensor

The China?Moneypro Rogowski Coil is an advanced current sensing accessory designed for high?current measurement in energy monitoring systems. Featuring a flexible coil structure and robust signal output, it enables accurate and safe current measurement when paired with compatible metering devices, optimizing system visibility and performance in large?scale solar and electrical installations.

Designed for Accurate High?Current Measurement

Flexible & Easy Installation

• Flexible coil design allows quick installation around conductors without disconnecting existing wiring.

• Supports primary current up to 1000?A or 1500?A with a 40?mA secondary output for high?load environments.

• Compatible with energy meters such as M3?40 and M3?40?Dual series for seamless integration.

Benefits:

• Simple and non?invasive installation.

• Enhanced adaptability in tight or complex panel layouts.

Stable Output & Reliable Performance

Engineered for Energy Monitoring

• Stable high?frequency response ensures reliable measurement signals.

• Supports alternating current (AC) measurement in grid, solar and industrial energy systems.

• Robust construction with IP67 waterproof rating for durable outdoor or indoor use.

Advantages:

• Consistent signal accuracy even in demanding conditions.

• High tolerance for environmental factors such as moisture and dust.

Smart Integration & Signal Compatibility

Enhanced System Connectivity

• Designed for integration with smart metering and monitoring gateways.

• Provides precise current data to enable optimized energy management and protective functions.

• Secondary output standardized at 40?mA for widespread meter compatibility.

Benefits:

• Facilitates accurate energy monitoring and analytics.

• Helps improve grid responsiveness and load management.

Durable & Safe Structural Design

Built for Long?Term Use

• Rugged coil and cable construction ideal for continued field deployment.

• Flexible configuration eliminates mechanical stress on conductors during installation.

• Isolated sensing design minimizes electrical risks.

Advantages:

• Reduced downtime and maintenance requirements.

• Enhanced safety when monitoring high?current circuits.

Why Choose China?Moneypro Rogowski Coil?

• High Current Support: Flexible coil compatible with up to 1000?A or 1500?A primary current.

• Reliable Signal Output: Stable 40?mA secondary output for precise measurement.

• Flexible Installation: Non?invasive wrap?around design fits a wide range of conductor sizes.

• Rugged Protection: IP67 waterproof rating for long?term operation.

• Smart Integration: Seamlessly works with compatible meters to enhance system monitoring.

Typical Applications

• Large Load Monitoring: Industrial and commercial current sensing.

• Solar & PV Systems: Precise AC current measurement in renewable installations.

• Energy Metering: Integration with smart meters for system analytics.

• Power Quality Monitoring: Accurate sensing in grid and utility scenarios.

FAQ ?C Common Questions

Q1: What current ranges are supported by the Rogowski Coil?
The China?Moneypro Rogowski Coil supports primary current inputs of 1000?A and 1500?A with a 40?mA secondary output for measurement devices.

Q2: How does the flexible design benefit installation?
The coil??s flexible structure allows it to be wrapped around conductors without disconnecting cables, making installation fast and non?invasive.

Q3: What devices is the Rogowski Coil compatible with?
It is compatible with metering and monitoring devices such as the M3?40 and M3?40?Dual energy meters.

Q4: Is the product suitable for outdoor environments?
Yes ?? with a waterproof rating of IP67, it is suitable for both indoor and outdoor installations.

Q5: What advantages does this measurement method offer?
Rogowski coils provide high?current measurement with flexible installation, stable output, and no core saturation issues, helping achieve accurate AC measurement for energy systems.
