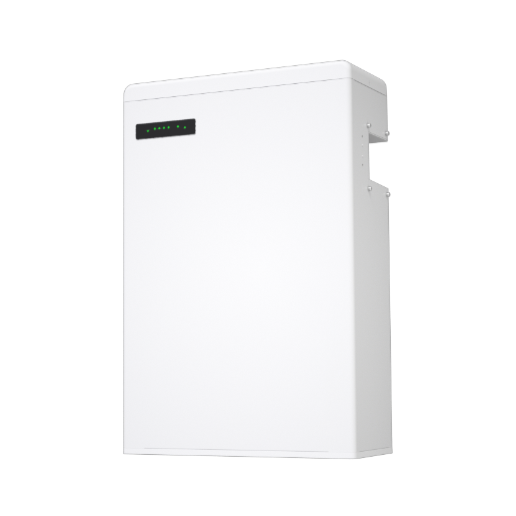

MP-T-BAT H 5.8 High Voltage Residential Energy Storage Battery-1790

Scalable & Reliable Solar Energy Storage

The China Moneypro TSYS-HV-5.8 is a high-voltage residential battery system designed to enhance solar self-consumption and provide dependable backup power. Built with high-quality LiFePO? cells, it delivers long cycle life and flexible installation options ?? making it ideal for modern homes seeking both energy independence and robust performance.

Strong Performance & Long Life

Designed for Lasting Use

• High-quality LiFePO? battery chemistry ensures superior safety and thermal stability without toxic heavy metals.

• Depth of discharge (DOD) up to 90 % maximizes usable energy from each cycle.

• Cycle life exceeding 6000 cycles for enduring reliability and lower lifetime cost.

Benefits:

• Delivers consistent daily energy storage for self-consumption.

• Long lifespan reduces the need for frequent replacements.

• Safe battery chemistry minimizes risks in residential environments.

Flexible Installation & Smart Management

Easy Setup & Maintenance

• Flexible floor or wall mounting adapts to various installation environments.

• Remote fault diagnosis, firmware upgrades, and maintenance simplify ongoing system management.

Advantages:

• Quick and adaptable installation reduces setup time.

• Remote features help streamline operations and keep the system healthy.

Reliable Protection & Practical Design

Ready for Residential Conditions

• IP65 protection rating ensures strong resistance against dust and water, suitable for outdoor-exposed applications.

• Compact structure supports responsive deployment in a range of settings.

Benefits:

• Strong ingress protection enhances long-term reliability.

• Compact footprint fits diverse installation spaces.

Why Choose China Moneypro TSYS-HV-5.8?

• High usable energy: ~5.1 kWh usable capacity per unit (nominal ~5.8 kWh total).

• Efficient & durable: LiFePO? chemistry with > 6000 cycles and 90 % DOD.

• Strong protection: IP65 rating suitable for real-world sites.

• Flexible installation: Supports both floor and wall mounting.

• Smart O&M: Remote diagnostics and maintenance capability.

Key Specifications

• Battery Type: LiFePO? (Lithium Iron Phosphate) chemistry.

• Nominal Voltage: 115.2 V (for TSYS-HV-5.8 master unit).

• Total Capacity: ~5.8 kWh nominal (~5.1 kWh usable).

• Max. Charge/Discharge Current: 35 A (nominal).

• Depth of Discharge (DOD): 90 %.

• Cycle Life: > 6000 cycles.

• Ingress Protection: IP65.

• Installation: Floor or wall mounted.

• Communication: CAN2.0 / RS485 supported (typical for high-voltage configuration).

• Dimensions: Master unit: ~474 ?? 193 ?? 708 mm, Slave module (if used): 474 ?? 193 ?? 647 mm.

• Weight: Master unit ~72.2 kg (slave ~68.5 kg).

Typical Applications

• Residential Solar + Storage: Store solar energy for use during evening hours and peak times.

• Backup Power: Provides reliable backup energy in grid outages.

• Modular Energy Systems: Combine multiple units for greater capacity or power as needs grow.

FAQ ?C Common Questions

Q1: How much usable energy does the TSYS-HV-5.8 provide?
It provides ~5.1 kWh of usable energy from a nominal 5.8 kWh capacity.

Q2: What battery chemistry is used?
It uses LiFePO? (Lithium Iron Phosphate) for enhanced safety and long life.

Q3: Is this system suitable for outdoor exposure?
Yes ?? the IP65 protection rating ensures resistance against dust and water.

Q4: Can the system be expanded?
Yes ?? modular design supports adding slave units for higher total capacity.

Q5: What installation options are available?
Both floor and wall mounting are supported for flexible deployment.
