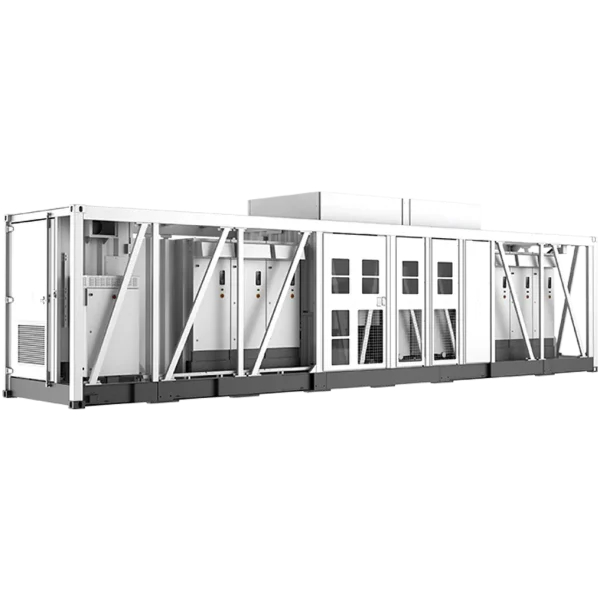

MP-SG6600UD-MV-8473

Built for Mega-Scale Plants and Faster MV Deployment

The China Moneypro SG6600UD-MV is a high-capacity, medium-voltage integrated PV inverter engineered for utility-scale solar plants demanding maximum efficiency, simplified installation, and lower system costs. Designed on a 1500Vdc platform and delivered in a compact 20-foot container, it integrates the inverter, MV transformer, switchgear, and auxiliary systems into one turnkey unit. This all-in-one architecture significantly shortens construction time, reduces wiring complexity, and ensures reliable full-power performance even under high ambient temperatures up to 45??C.

Higher Energy Yield

Advanced Conversion for Maximum Output

• Three-level power topology achieves up to 99% inverter efficiency

• Optimized thermal management supports full power operation at 45??C

Benefits:

• Greater daily energy production

• Stable output in hot environments

• Improved plant profitability and ROI

Intelligent Operations & Maintenance

Real-Time Monitoring & Easy Service

• Integrated zone monitoring enables online diagnostics and fast troubleshooting

• Modular architecture simplifies maintenance and component replacement

Advantages:

• Reduced downtime

• Faster repairs

• Lower lifecycle O&M costs

Reduced Investment & Faster Deployment

Containerized All-in-One Design

• 20-foot container solution lowers transportation and installation costs

• 1500V DC architecture reduces BOS and cabling expenses

• Integrated MV transformer, switchgear, and LV auxiliary power supply

• Optional Q-at-night function for improved energy utilization

Results:

• Plug-and-play commissioning

• Minimal on-site construction

• Lower total project investment

Reliable Grid Compatibility

Stable & Compliant Grid Interaction

• Complies with IEC 61727, IEC 62116, IEC 62271-202, IEC 62271-200, IEC 60076

• Supports Low/High Voltage Ride Through (L/HVRT)

• Active & reactive power control with ramp-rate regulation

Benefits:

• Smooth grid integration

• Enhanced voltage and frequency stability

• Suitable for global utility standards

Why Choose China Moneypro SG6600UD-MV?

• High Capacity: 6.6MW-class power reduces inverter quantity per block

• Integrated MV System: Transformer and switchgear pre-installed

• Rapid Installation: Factory pre-assembled container design

• High Efficiency: 99% maximum conversion efficiency

• Lower LCOE: Reduced CAPEX, OPEX, and maintenance time

Key Specifications

• Max PV Input Voltage: 1500 V

• Rated Output Power: 6600 kVA

• Rated AC Voltage Range: 10?C35 kV

• Inverter Max. Efficiency: 99%

Typical Applications

• Utility-scale solar farms

• Large centralized PV power stations

• Containerized MV turnkey substations

• Projects requiring fast deployment and reduced civil works

FAQ ?C Common Questions

Q1: What makes SG6600UD-MV suitable for very large PV plants?
Its 6.6MW high-capacity design minimizes system quantity and simplifies plant layout.

Q2: How does it reduce installation time?
The pre-integrated container solution eliminates most onsite assembly and wiring.

Q3: Can it operate in high temperatures continuously?
Yes, it supports full output at 45??C with an advanced cooling system.

Q4: Is it compliant with international standards?
Yes, it meets multiple IEC MV and grid standards for safe and reliable operation.

Q5: Is maintenance complicated?
No, the modular structure and online monitoring enable quick and easy servicing.
