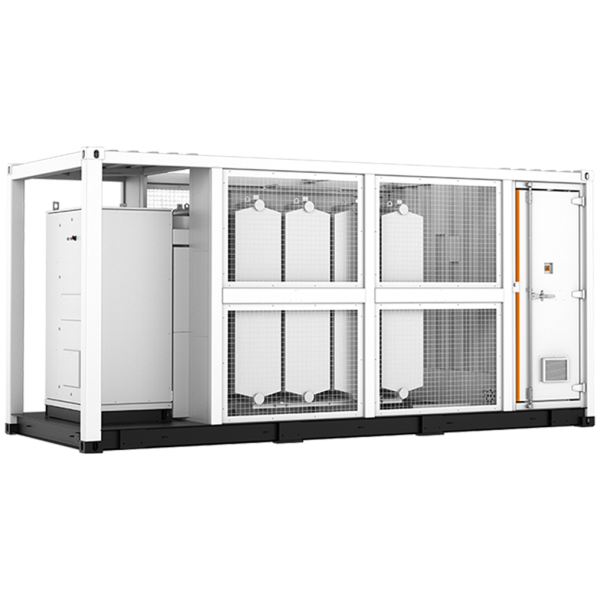

MP-MVS3200-LV MV Turnkey Solution-9578

MP-MVS3200-LV MV Turnkey Solution-9578

MV Turnkey Solution

Supports up to 4.48 MW per block, allowing large-scale deployment in fewer units.

Standard container design simplifies transportation and logistics.

Pre-assembled components enable fast on-site commissioning, reducing labor costs and project timelines.

Category:

Share your love

Cost-Effective Utility-Scale Deployment

Utility-scale solar projects often face high upfront costs due to complex MV/LV integration, transportation challenges, and labor-intensive installation.

The China Moneypro MV Turnkey Solution with SG350HX/SG350HX-20 string inverters and MVS3200-LV offers a pre-assembled, containerized solution that minimizes investment and accelerates project deployment.

Saved Investment with Optimized Design

Block design for easier transport and setup

  • Supports up to 4.48 MW per block, allowing large-scale deployment in fewer units.

  • Standard container design simplifies transportation and logistics.

  • Pre-assembled components enable fast on-site commissioning, reducing labor costs and project timelines.

User benefits:

  • Lower capital expenditure

  • Faster installation

  • Reduced operational complexity

Safety and Reliable Operation

Isolation and accessibility

  • MV and LV isolated for enhanced operational safety.

  • Independent control room reduces risk of accidental contact.

  • All critical components are front-accessible, eliminating the need for walk-in maintenance.

Advantages:

  • Safer working environment

  • Easier inspection and maintenance

  • Reduced downtime due to safer access

Easy Operation & Maintenance

Modular and smart design

  • Online analysis allows fast troubleshooting of faults.

  • Modular components make replacement of main devices simple and quick.

Operational benefits:

  • Reduced O&M time and costs

  • Faster problem detection and resolution

  • Improved overall system reliability

Proven Reliability

Type-tested components and standards compliance

  • All components are type-tested to ensure performance under real-world conditions.

  • Complies with IEC 60076, IEC 62271, and IEC 61439 standards for electrical safety and quality.

Reliability benefits:

  • Long-term operational stability

  • Guaranteed compliance with international standards

  • High confidence for utility-scale projects

Technical Highlights

  • Rated Power: 3200 kVA

  • MV Voltage: 10–35 kV

  • Efficiency: ≥ 99%

  • Cooling Method: ONAN

Applications

Utility-Scale Solar PV Plants

Ideal for 1500Vdc PV arrays requiring high-capacity MV/LV turnkey solutions.

Pre-Assembled MV/LV Blocks

Simplifies logistics and site preparation for large solar farms.

Safe and Efficient O&M

Front-accessible components, independent control room, and online diagnostics improve operational safety and efficiency.

FAQ – Key Questions

Q1: What system size is supported by this MV turnkey solution?
Supports up to 4.48 MW per block, suitable for large utility-scale PV projects.

Q2: How does it reduce installation costs?
Pre-assembled containerized design enables faster setup, lower labor, and simpler transport.

Q3: What safety features are included?
MV and LV isolation, independent control room, and front-accessible components ensure safe operation.

Q4: How does O&M efficiency improve?
Online diagnostics and modular design allow quick troubleshooting and easy replacement of main devices.

Q5: Is it compliant with international standards?
Yes. Complies with IEC 60076, IEC 62271, and IEC 61439, with all components type-tested.

Why Choose China Moneypro

China Moneypro provides integrated MV turnkey solutions for 1500Vdc utility-scale PV projects, offering high efficiency, reduced investment, safety, and ease of operation. The SG350HX/SG350HX-20 and MVS3200-LV combination ensures rapid deployment, reliable performance, and minimal O&M complexity.

Specifications

Type designation MVS3200-LVMVS4480-LV
Transformer
Transformer type Oil immersed
Rated power 3200 kVA @ 40 ℃4480 kVA @ 40 ℃
Max. power 3520 kVA @ 30 ℃4928 kVA @ 30 ℃
Vector group Dy11
LV / MV voltage 0.8 kV / ( 10 – 35 ) kV
Maximum input current at nominal voltage 2540 A3557 A
Frequency 50 Hz
Tapping on HV 0 , ± 2 * 2.5 %
Effciency Tier2
Cooling method ONAN ( Oil Natural Air Natural )
Impedance 7 % ( ± 10 % )8 % ( ± 10 % )
Oil type Mineral oil ( PCB free )
Winding material Al / AI
Insulation class A
MV switchgear
Insulation type SF6 ***
Rated voltage range 24 kV – 40.5 kV
Rated current 630 A
Internal arcing fault IAC AFL 20 kA / 1 s
LV panel
Main switch specifcation 4000 A / 800 Vac / 3P, 1 pcs
Disconnector specifcation 260 A / 800 Vac / 3P, 10 pcs260 A / 800 Vac / 3P, 14 pcs
Fuse specifcation 350A / 800 Vac / 1P, 30 pcs350 A / 800 Vac / 1P, 42 pcs
Protection
AC input protection Fuse+Disconnector
Transformer protection Oil-temperature, Oil-level, Oil-pressure, Buchholz
Relay protection 50 / 51, 50N / 51N
Surge protection AC Type I + II
General data
Dimensions(W*H*D) 6058 mm * 2896 mm * 2438 mm
Approximate weight 15 T17 T
Operating ambient temperature range * -30 ℃ – 60 ℃ **
Auxiliary transformer supply 15 kVA / 400 V ( optional: max. 40 kVA )
Degree of protection IP54
Allowable relative humidity range (non-condensing) 0 % – 95 %
Operating altitude 1000 m ( standard ) / > 1000 m ( optional )
Communication Standard: RS485, Ethernet, Optical fber
Compliance IEC 60076, IEC 62271-200, IEC 62271-202, IEC 61439-1, EN 50588-1
