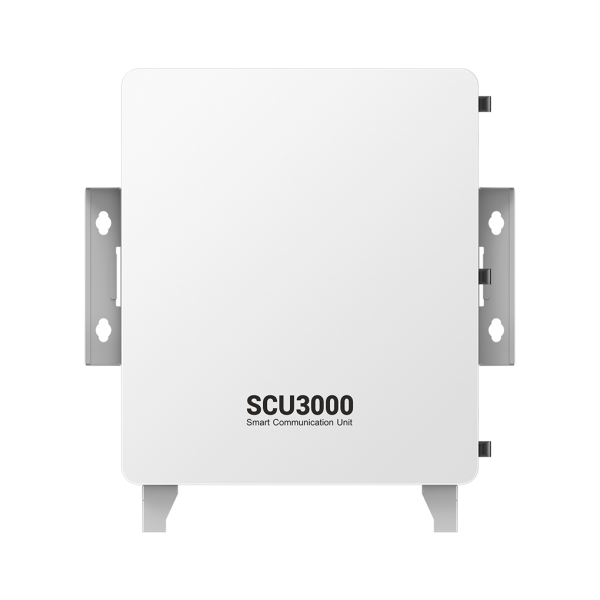

MP-SCU3000 Solar Communication Unit-6871

MP-SCU3000 Solar Communication Unit-6871

The China?Moneypro SCU3000 Series is a robust solar communication unit engineered to provide optimized data acquisition, centralized monitoring, and maintenance for PV systems, energy storage installations, and hybrid power solutions. Built for commercial, industrial, and utility?scale projects, it offers flexible networking, multi?protocol communication support, and advanced configuration tools ?? making it ideal for managing large numbers of inverters and devices in complex energy environments.

Category:

Share your love

Centralized Data Acquisition for Large?Scale Solar & Storage Systems

The China?Moneypro SCU3000 Series is a robust solar communication unit engineered to provide optimized data acquisition, centralized monitoring, and maintenance for PV systems, energy storage installations, and hybrid power solutions. Built for commercial, industrial, and utility?scale projects, it offers flexible networking, multi?protocol communication support, and advanced configuration tools ?? making it ideal for managing large numbers of inverters and devices in complex energy environments.

Flexible Networking & Smart Data Handling

Powerful System Communication

  • Supports RS485 and PLC communication for broad compatibility with inverters and field devices.

  • Compatible with optical fibre ring network communication to ensure accurate and reliable data transmission across PV sub?arrays.

  • SD memory card slot for log storage and export ?? simplifying historical data management.

  • Built?in web server for batch configuration and firmware upgrades, enabling efficient field deployment and mass setup.

Benefits:

  • Precise data acquisition across complex installations.

  • Efficient device configuration and remote maintenance.

Robust Design for Field Environments

Built to Withstand Harsh Conditions

  • Multiple model variants with different PLC options to fit system requirements:

    • SCU3000A / SCU3000: 2 ?? PLC support

    • SCU3000A?S / SCU3000?S: 1 ?? PLC support

  • IP65 protection rating for dust and water resistance ?? suitable for outdoor or sheltered installation environments.

  • Wide operating temperature range (?30???C to +60???C) for reliable performance in varied climates.

  • Efficient operation with power consumption up to 35?W depending on model.

Advantages:

  • Sturdy hardware built for commercial and industrial site conditions.

  • Long?term reliability with minimal maintenance.

Intelligent Monitoring & Management

Centralized Control Features

  • Collects real?time system performance data from connected devices.

  • Supports large?scale inverter networks with high?capacity communication architecture.

  • Flexible deployment options including wall mounting, bracket mounting, or pole mounting for site adaptability.

Benefits:

  • Clear, centralized visibility into system operations.

  • Facilitates fast troubleshooting and system health diagnostics.

Key Specifications

  • Models: SCU3000A, SCU3000A?S, SCU3000, SCU3000?S (China?Moneypro SCU3000 Series)

  • Communication Interfaces: RS485, PLC, Optical Fibre (supported)

  • Max. Supported Inverters / Devices: Up to 200 devices across multiple interfaces (RS485/Ethernet/PLC)

  • Input Power: 100??C?240?V AC, 50/60?Hz (varies by model)

  • Power Consumption: ???30??C?35?W (dependent on model)

  • Ingress Protection Rating: IP65 (dust & water resistant)

  • Operating Temperature Range: ?30???C to +60???C

  • Installation: Wall, bracket or pole mounting options

Typical Applications

  • Large?Scale Solar & Storage Arrays: Centralized data collection and monitoring for commercial, industrial, and utility projects.

  • Hybrid Power Installations: Effective communication across mixed inverter and energy storage fleets.

  • Energy Controller & Monitoring Hubs: Acts as a central hub for performance insights, logs, and system management.

FAQ ?C Common Questions

Q1: What is the China?Moneypro SCU3000 used for?
It??s a solar communication unit designed to centralize data acquisition, monitoring, and maintenance for PV and energy storage systems in large?scale projects.

Q2: Which communication methods does it support?
The unit supports RS485, PLC, and optical fibre communication for flexible integration with inverters and field devices.

Q3: Can the SCU3000 function outdoors?
Yes ?? with an IP65 protection rating and wide operating temperature range, it??s suitable for outdoor or sheltered deployment.

Q4: How does the SCU3000 simplify system configuration?
It features a built?in web server for batch configuration and firmware upgrades, making setup and maintenance faster for large systems.

Specifications

Category Parameter SCU3000-S SCU3000 SCU3000A-S SCU3000A
Communication Max. Inverters Supported 200 200 200 200
RS485 Interface 8 8 8 8
Ethernet 2 x RJ45, 10 / 100Mbps 2 x RJ45, 10 / 100Mbps 2 x RJ45, 10 / 100Mbps 2 x RJ45, 10 / 100Mbps
Number of PLC 1 x PLC 2 x PLC 1 x HPLC 2 x HPLC
Input Voltage Range of PLC (V) 800 800 800 800
Configuration Datalogger EzLogger3000U x 1 EzLogger3000U x 1 EzLogger3000U-A x 1 EzLogger3000U-A x 1
Fibre Channel Switch 2 optical ports, 6 electrical ports 2 optical ports, 6 electrical ports 2 optical ports, 6 electrical ports 2 optical ports, 6 electrical ports
Fiber Termination Box 24 ports, SC single-mode 24 ports, SC single-mode 24 ports, SC single-mode 24 ports, SC single-mode
Power Supply 100 ~ 240Vac, 50 / 60Hz 100 ~ 240Vac, 50 / 60Hz 100 ~ 240Vac, 50 / 60Hz 100 ~ 240Vac, 50 / 60Hz
Power Consumption (W) ≤30 ≤35 ≤30 ≤35
Mechanical Dimensions (W x H x D mm) 723 x 780 x 226 723 x 780 x 226 723 x 780 x 226 723 x 780 x 226
Weight (kg) 25 28 25 28
Installation Method Wall / Bracket / Pole mounting Wall / Bracket / Pole mounting Wall / Bracket / Pole mounting Wall / Bracket / Pole mounting
Environment Operating Temperature Range (°C) -30 ~ +60 -30 ~ +60 -30 ~ +60 -30 ~ +60
Storage Temperature Range (°C) -40 ~ +70 -40 ~ +70 -40 ~ +70 -40 ~ +70
Relative Humidity 5 ~ 95% 5 ~ 95% 5 ~ 95% 5 ~ 95%
Max. Operating Altitude (m) 5000 5000 5000 5000
Ingress Protection Rating IP65 IP65 IP65 IP65
