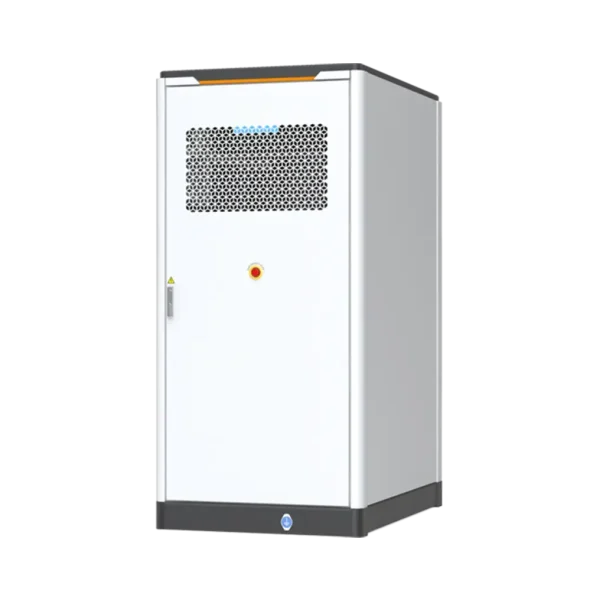

MP-110kW/229kWh ST225CS-2H C&I Energy Storage System-6048

Liquid-Cooled, High-Safety & Scalable C&I ESS

The China Moneypro PowerStack ST225 kWh-110 kW-2H Series is a high-performance, liquid-cooled commercial and industrial energy storage system designed for reliable power delivery, flexible deployment, and advanced safety protection. With integrated design, AI-assisted thermal management, and smart monitoring capabilities, it enables peak shaving, backup power, grid support, and efficient energy utilization for mid-to-large PV + ESS installations.

High Efficiency & Intelligent Thermal Control

Optimize Energy Flow

• Liquid cooling with AI-driven bionic thermal balance — keeps cell temperature differences within ≤ 2.5 °C for stable and long-lasting performance.

• High-efficiency PCS (Power Conversion System) with maximum conversion efficiency ~98.5 % reduces energy losses.

• Supports 2 h discharge duration at rated output with capability to scale longer (up to ~4 h system support).

Benefits:

• Efficient round-trip energy utilization and reduced thermal stress.

• Stable performance even under demanding operational conditions.

Robust Safety & Reliable Protection

Commercial-Grade Protection Layers

• AI monitoring of cell health with early warning helps manage and prevent thermal runaway.

• Three-level overcurrent protection (PACK, RACK, PCS) protects against electrical faults at multiple system stages.

• Three-level fire safety design with early thermal event detection enhances overall system safety.

Advantages:

• Strong protection against electrical and thermal issues.

• Higher confidence for commercial and industrial deployments.

Scalable & Flexible Deployment

Easy O&M and System Expansion

• Pre-assembled and pre-commissioned design significantly reduces on-site commissioning work.

• Side-by-side parallel connection support enables seamless expansion of capacity and power.

• Integrated iSolarCloud App and Web cloud monitoring provides real-time alarms, performance insights, and remote troubleshooting.

• Near-distal intelligent wireless operation and remote firmware upgrades reduce labor and O&M costs.

Benefits:

• Flexible scaling and future proofing with minimal disruption.

• Intelligent connectivity and maintenance management.

Why Choose China Moneypro PowerStack ST225 kWh-110 kW-2H?

• High Efficiency: PCS conversion up to ~98.5 % for superior energy utilization.

• Advanced Liquid Cooling: AI-assisted thermal balance for better cell protection and reduced heat loss.

• Robust Safety: Three-level overcurrent and fire safety design with predictive cell monitoring.

• Scalable Architecture: Side-by-side parallel connection for expanding capacity and power.

• Smart Monitoring: Cloud-based real-time monitoring and remote maintenance support.

Key Specifications

• Battery Capacity: ~229 kWh (based on LFP cells, typical 256S1P configuration)

• Rated Output Power: 110 kW (2-hour discharge profile)

• Nominal Voltage Range: ~691.2 V – ~934.4 V (DC)

• Rated AC Voltage: ~400 V / 50 Hz (grid–tied or off-grid compatible)

• PCS Efficiency: ~98.5 % (maximum)

• Protection Rating: IP55 (environmental dust/water protection)

• Cooling Method: Intelligent liquid cooling

• Operating Temp Range: –30 °C to +50 °C (industry standard)

• Humidity Range: 0 % – 100 %

• Communication: Modbus TCP, Ethernet (iSolarCloud support)

Typical Applications

• Commercial Rooftop PV + Storage: Provide reliable storage and PV generation integration for businesses.

• Industrial Facilities: Support load shifting, peak shaving, and backup power for production sites.

• Energy Arbitrage & Grid Services: Optimize energy costs through strategic storage and discharge.

• Micro-Grid & Resilience Projects: Enable grid-forming and autonomous operation in hybrid systems.

FAQ – Common Questions

Q1: What is the usable capacity of the ST225 kWh-110 kW system?
The China Moneypro PowerStack ST225 kWh-110 kW-2H delivers approximately 229 kWh battery capacity with a 110 kW rated output suitable for commercial and industrial ESS applications.

Q2: What cooling technology is used?
It uses an intelligent liquid cooling system with AI-assisted thermal balance to maintain uniform cell temperatures and reduce auxiliary losses.

Q3: Can this system be expanded?
Yes — side-by-side parallel connection enables scaling of capacity and power for larger ESS deployments.

Q4: Is the system suitable for outdoor installation?
Yes — with IP55 protection and robust design, it is suitable for both indoor and sheltered outdoor commercial applications.

Q5: How is performance monitored and managed?
The ESS integrates with iSolarCloud cloud platform for real-time monitoring, alarms, and remote upgrades, helping reduce O&M costs.
